FMC 370

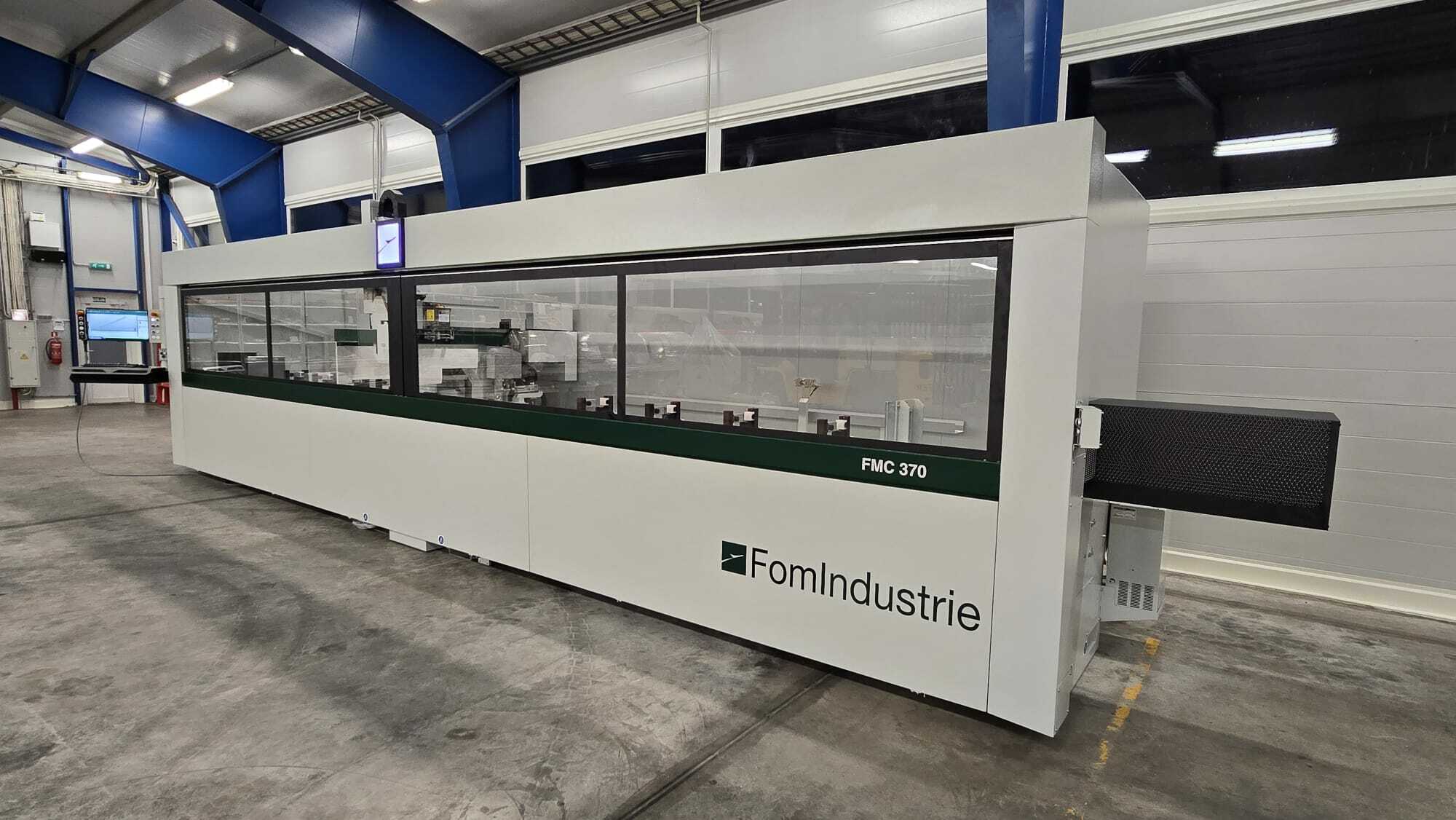

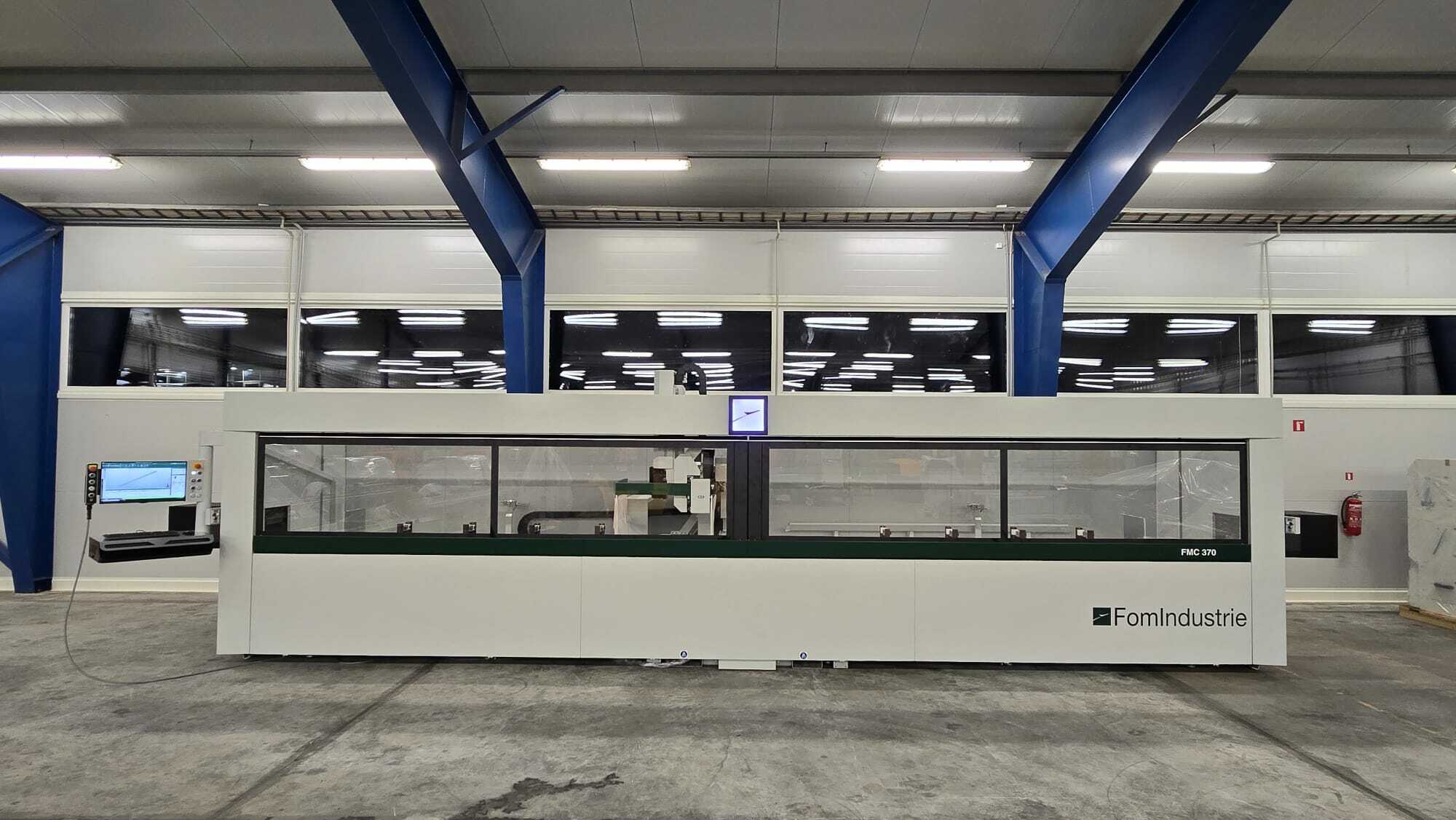

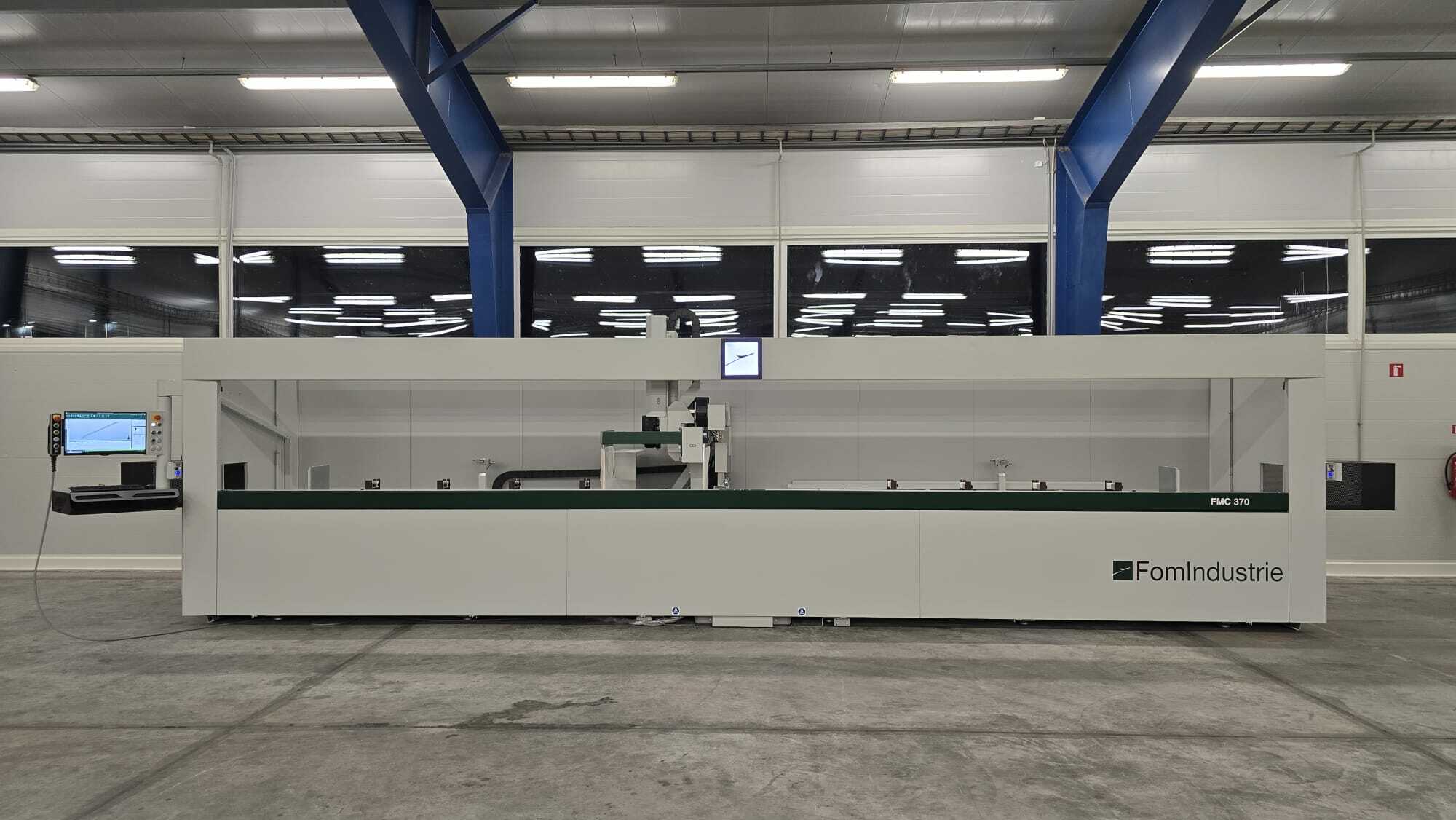

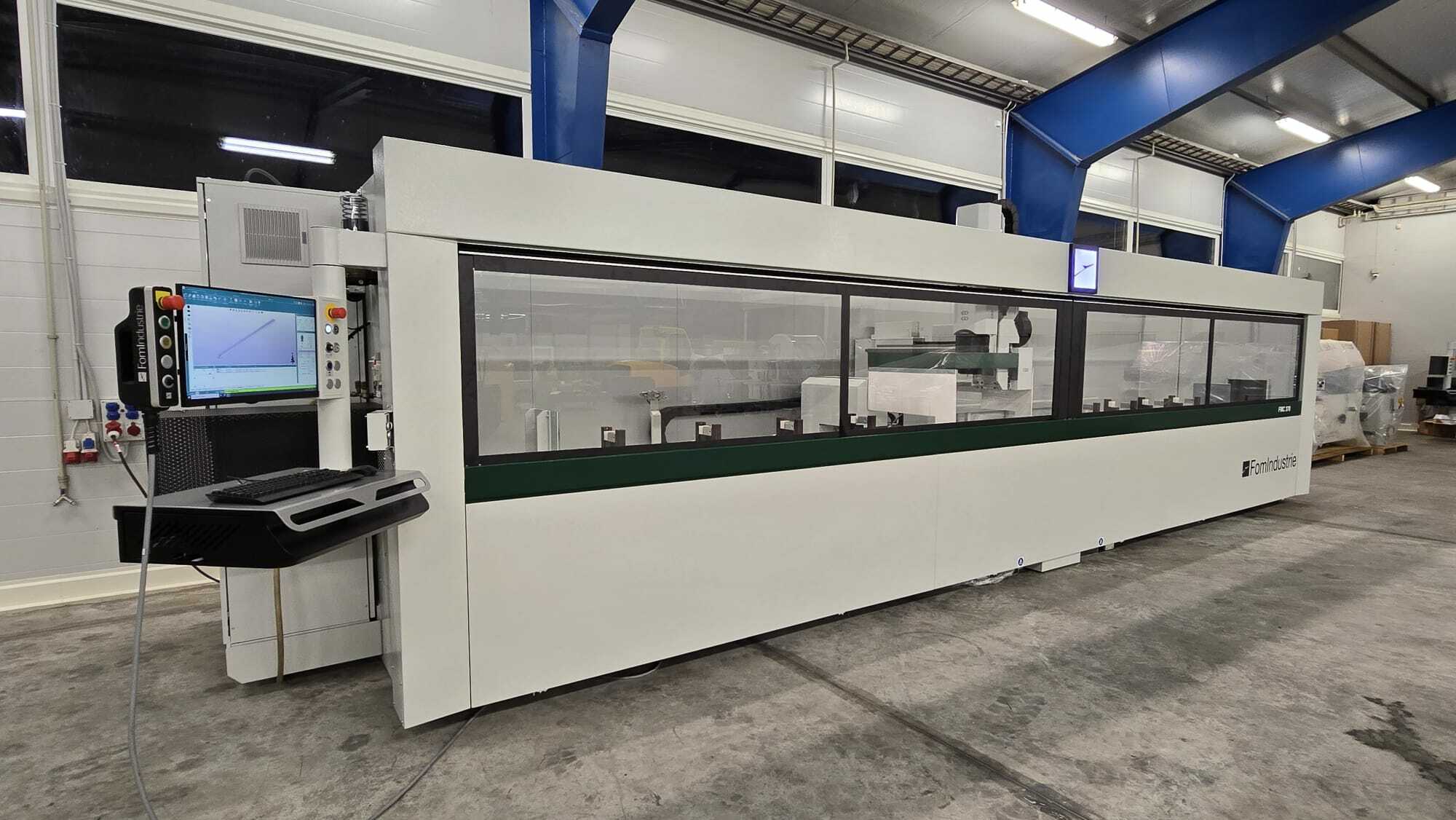

XX100405 CNC Machining centre with 4 controlled axes FOM INDUSTRIE FMC 370
Machine will be in stock in May 2025
Standard configuration:

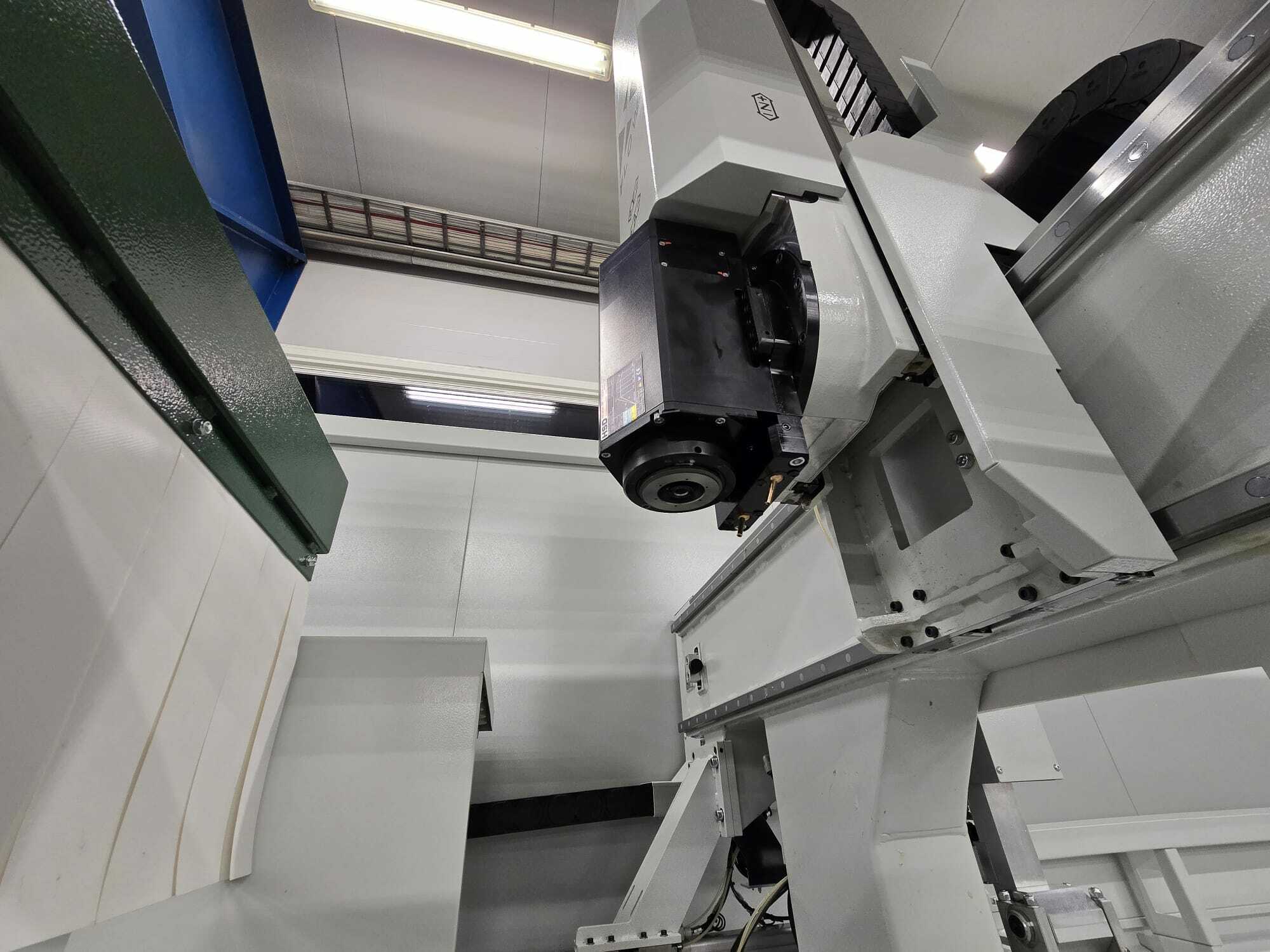

- Liquid-cooled electrospindle 7 kW, 20,000 rpm (HSK-F63)

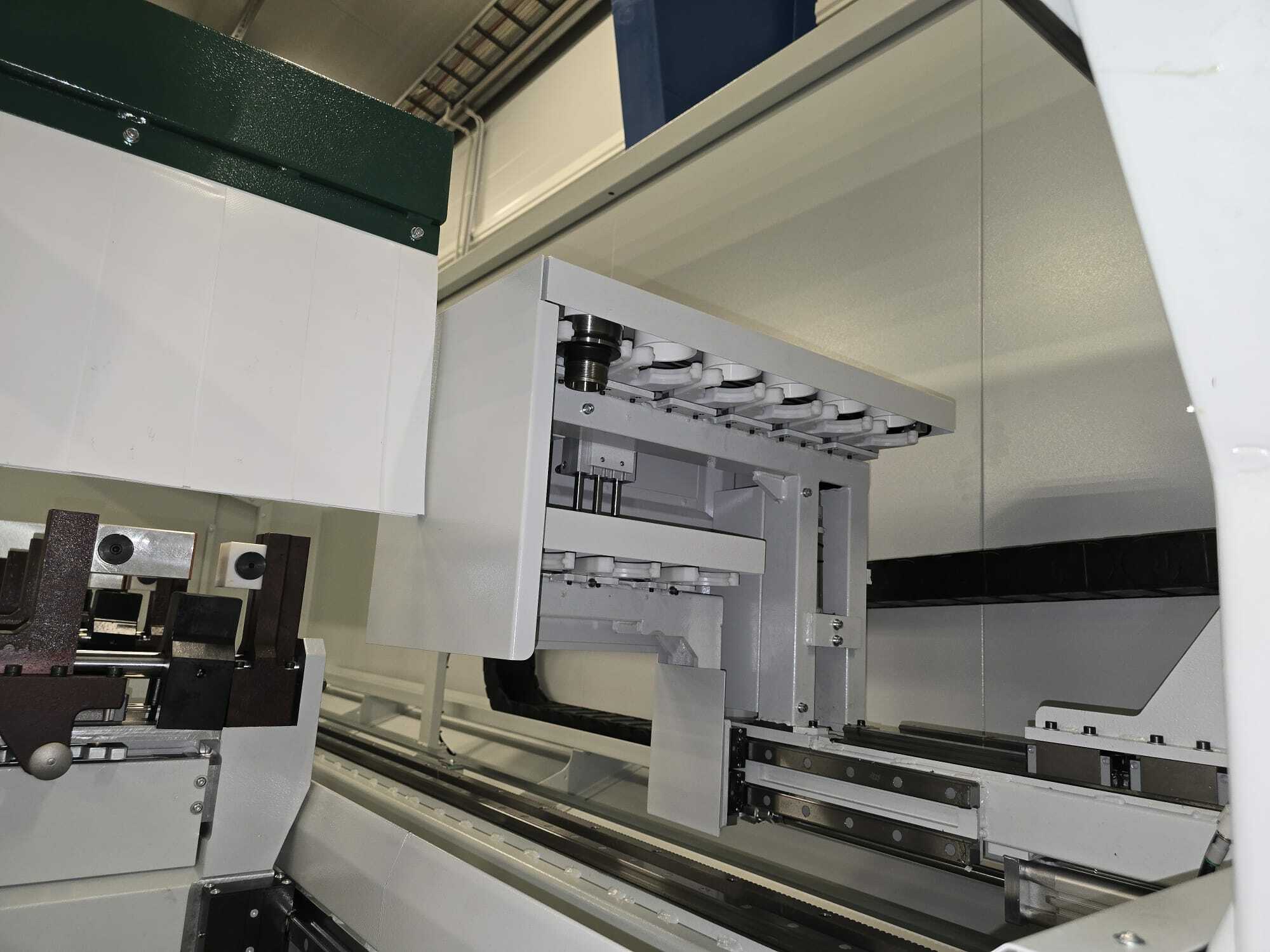

- 9 location tool magazine on head (HSK-F63)

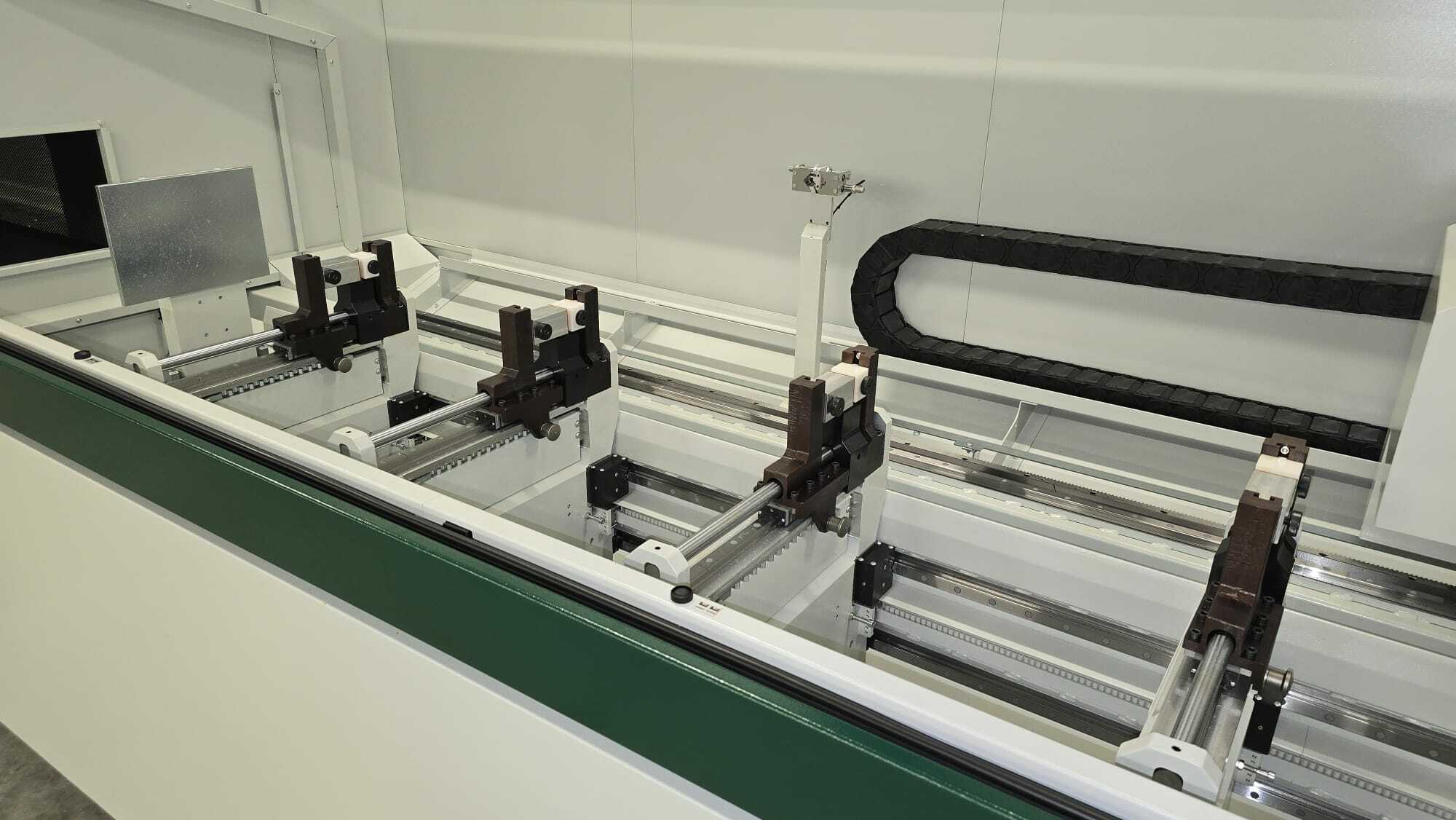

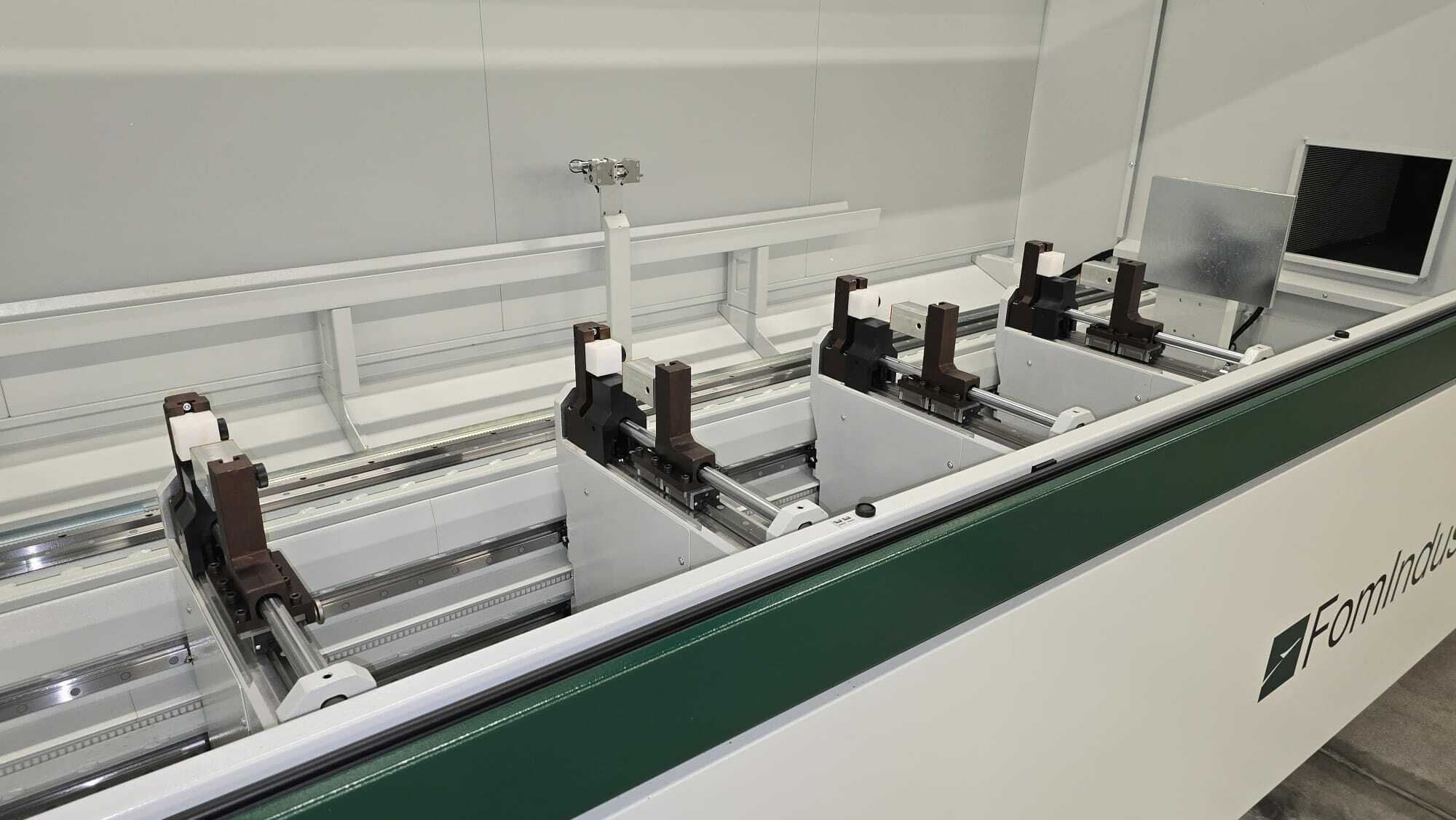

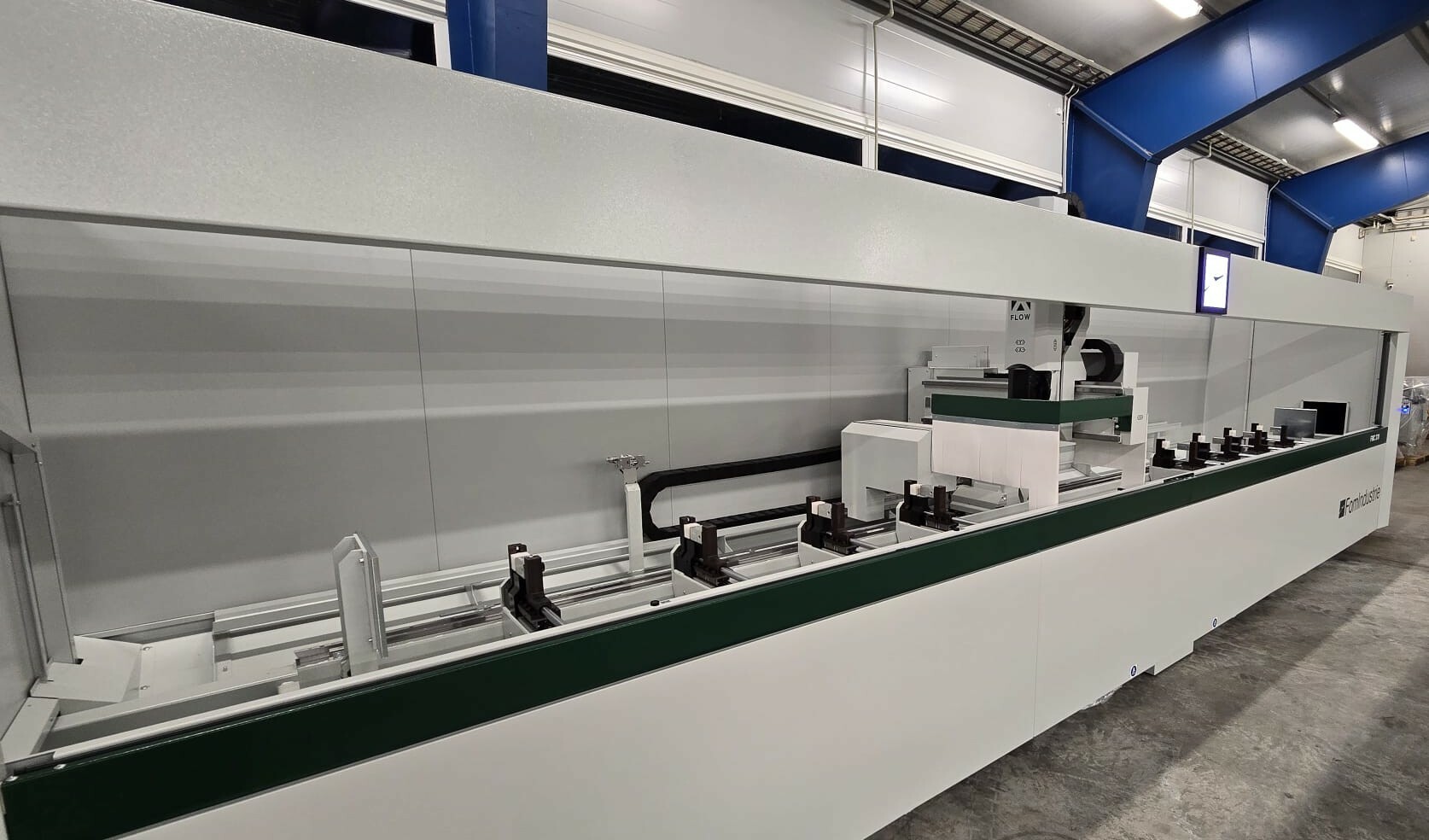

- No. 2 pairs of pneumatic vices with positioning through the travelling column
- No. 2 pairs of low profile jaws for clamping wide profiles
- Left pneumatic reference stop
- Minimum quantity lubrication (MQL) with pure oil
- Chip and waste collection tank in base
- Perimeter guard system with automatically opening, front retractable doors
- X FLOW (automatic orientation of lubricant nozzles)
- Control: POWER-D

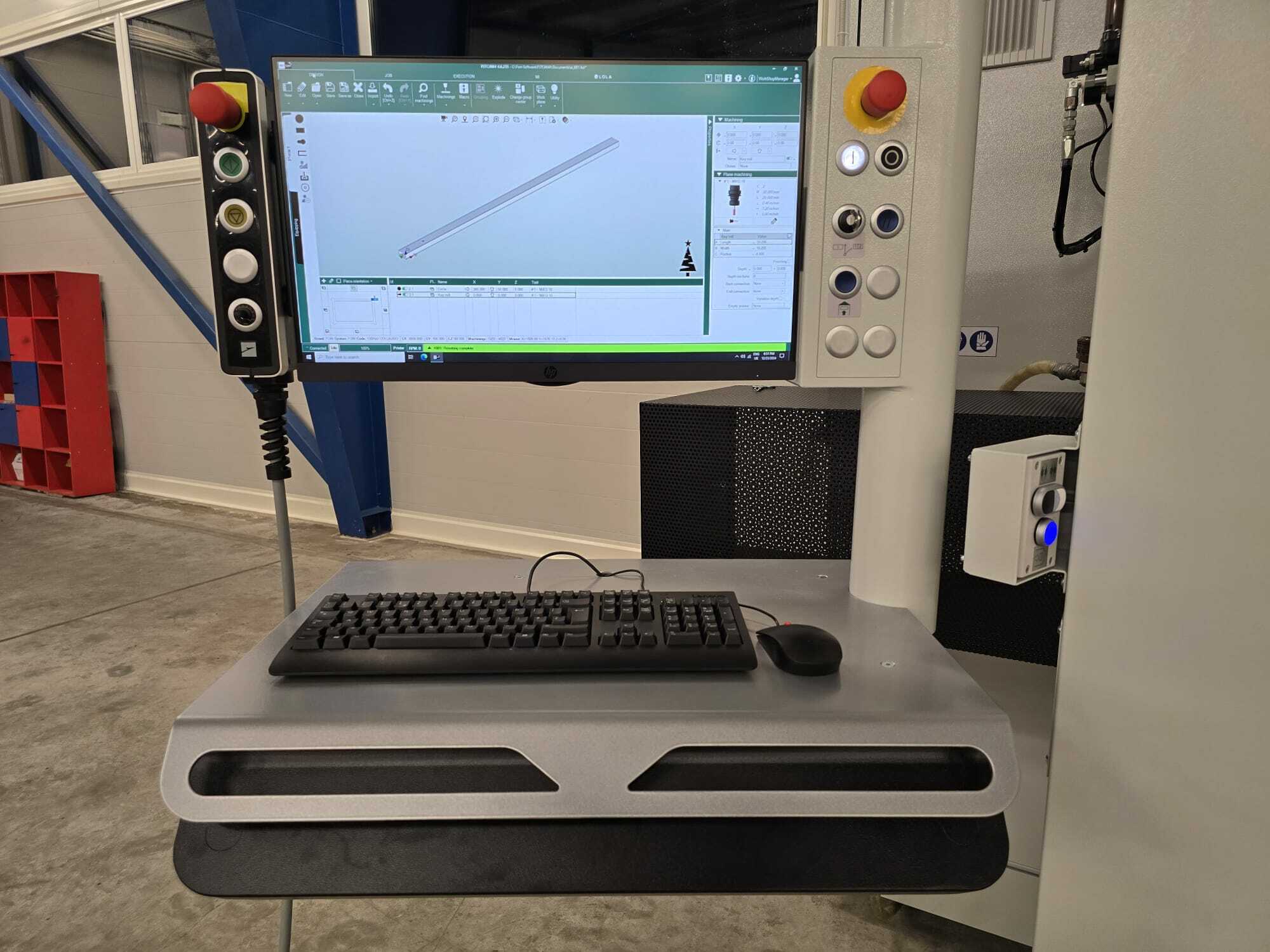

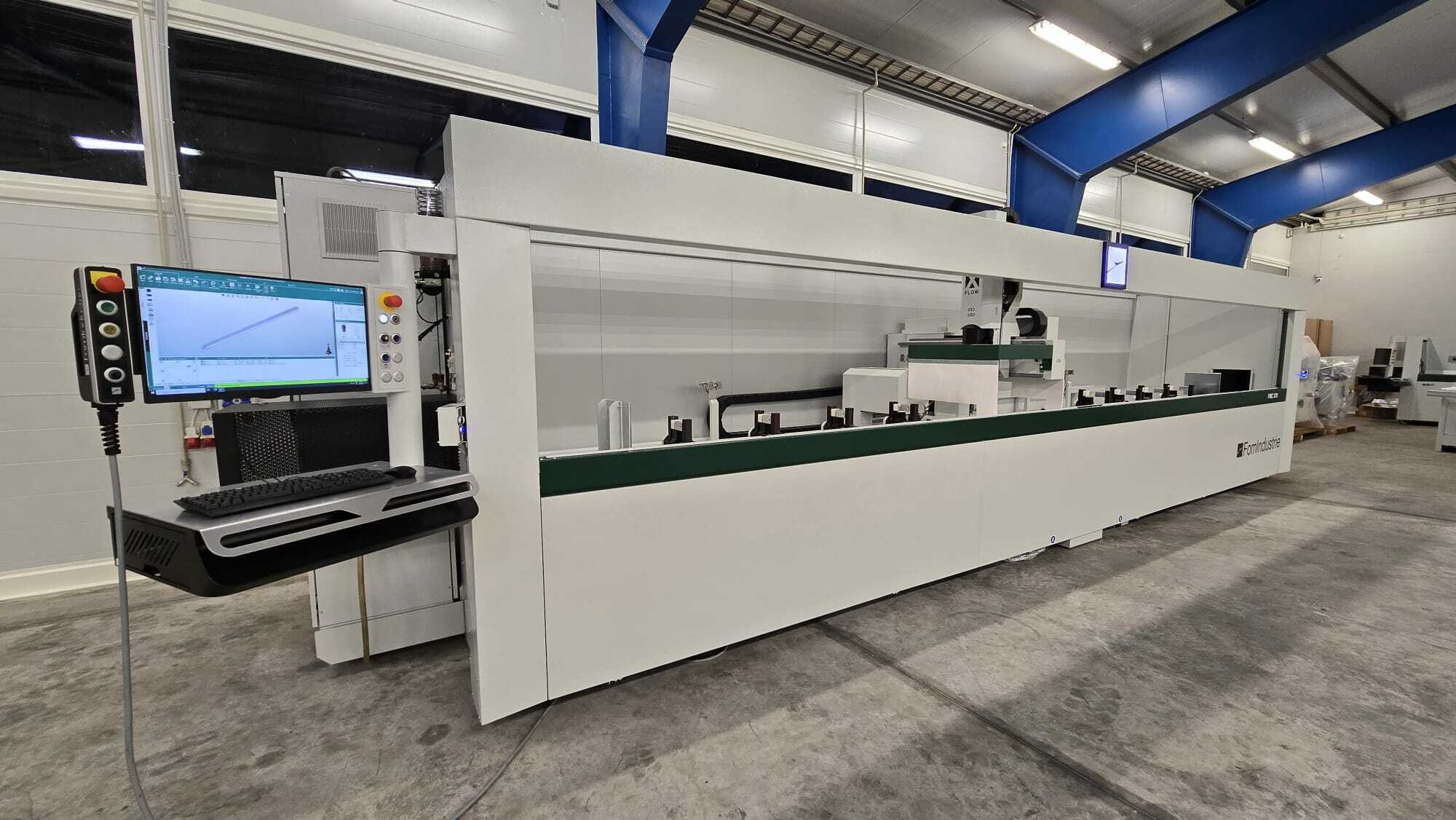

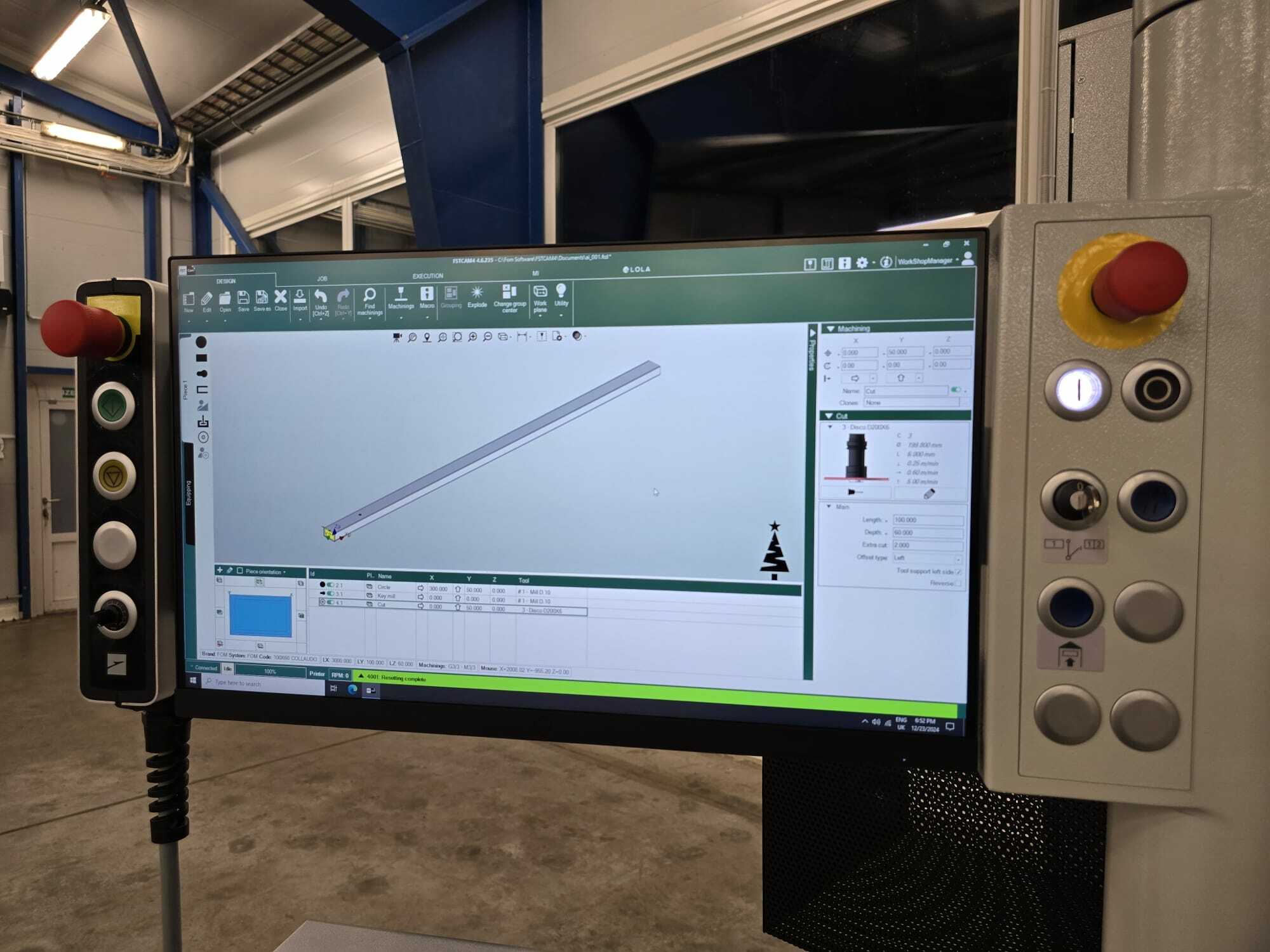

- Movable control console

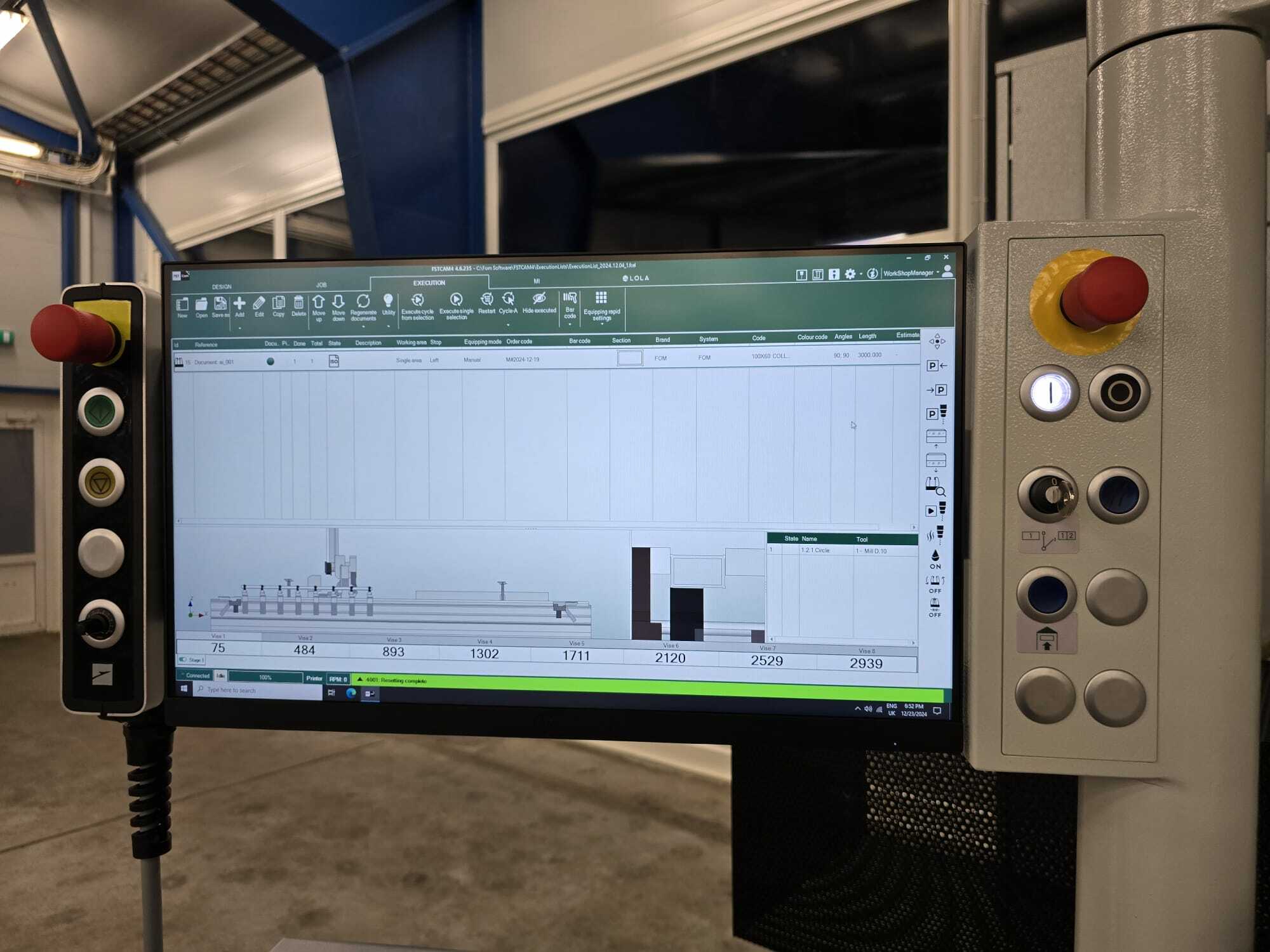

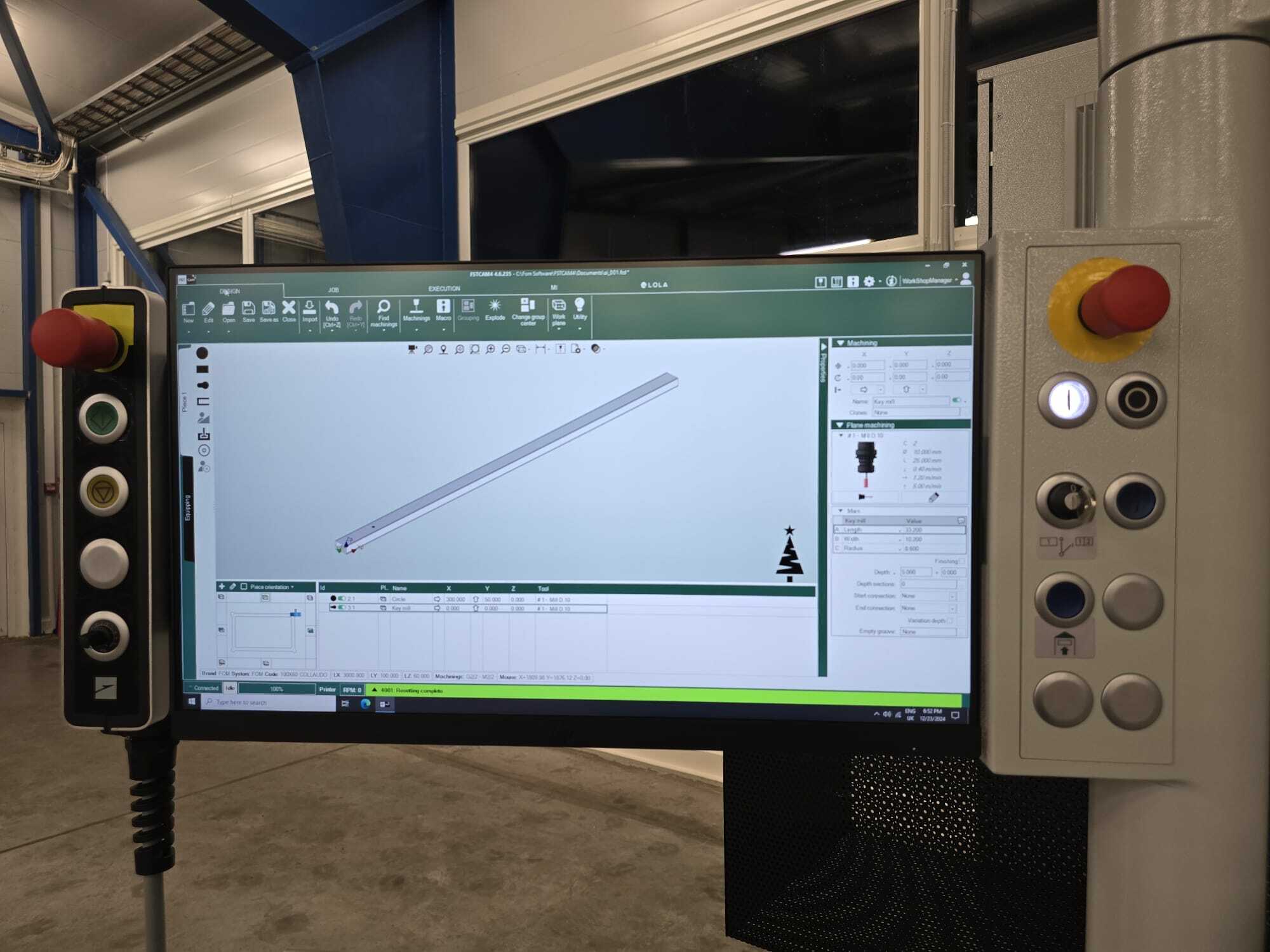

- 24” display
- FST CAM 4 program
Optional equipment installed on the machine:
- PR205249 One pairs of additional vices with independent positioning and vises modification:
• Transformation of four standard vices to vices with independent positioning
• Transformation of standard vices into extra clamping vices
- PR205258 Pendular (2 working areas, 2 pieces) and oversides profiles machining:
• Second X-FLOW
• Right pneumatic fixed stop
• Software to manage pendular machining
• Safety devices for pendular machining
• Tunnel for oversized profile machining
• SW to manage oversized machining operations
- PR205253 Device to measure profile length
- PR205227 Device for integrity and measure of the tool
- PR202971 Data import software in accordance to FOM protocol and wireless optical bar code and QR code reader
- ZP715059 3D custom milling Module for FST CAM 4
- ZP715010 Module for rigid tapping and chase tapping
- PR205268 Rear chip collection tanks for FMC 370
- PR205271 Centralised automatic lubrication system
- PR203389 Rear chip collection tank
- PR202975 Tool set A3/HSK F63 (8 holders HSKF63, 8 collets and 8 HM milling cutters)
- PR204497 Holder HSKF63 with cutter Ø 200 x 6mm
- PR203785 Holder HSKF63 with blade Ø 200 mm
