FMC 120

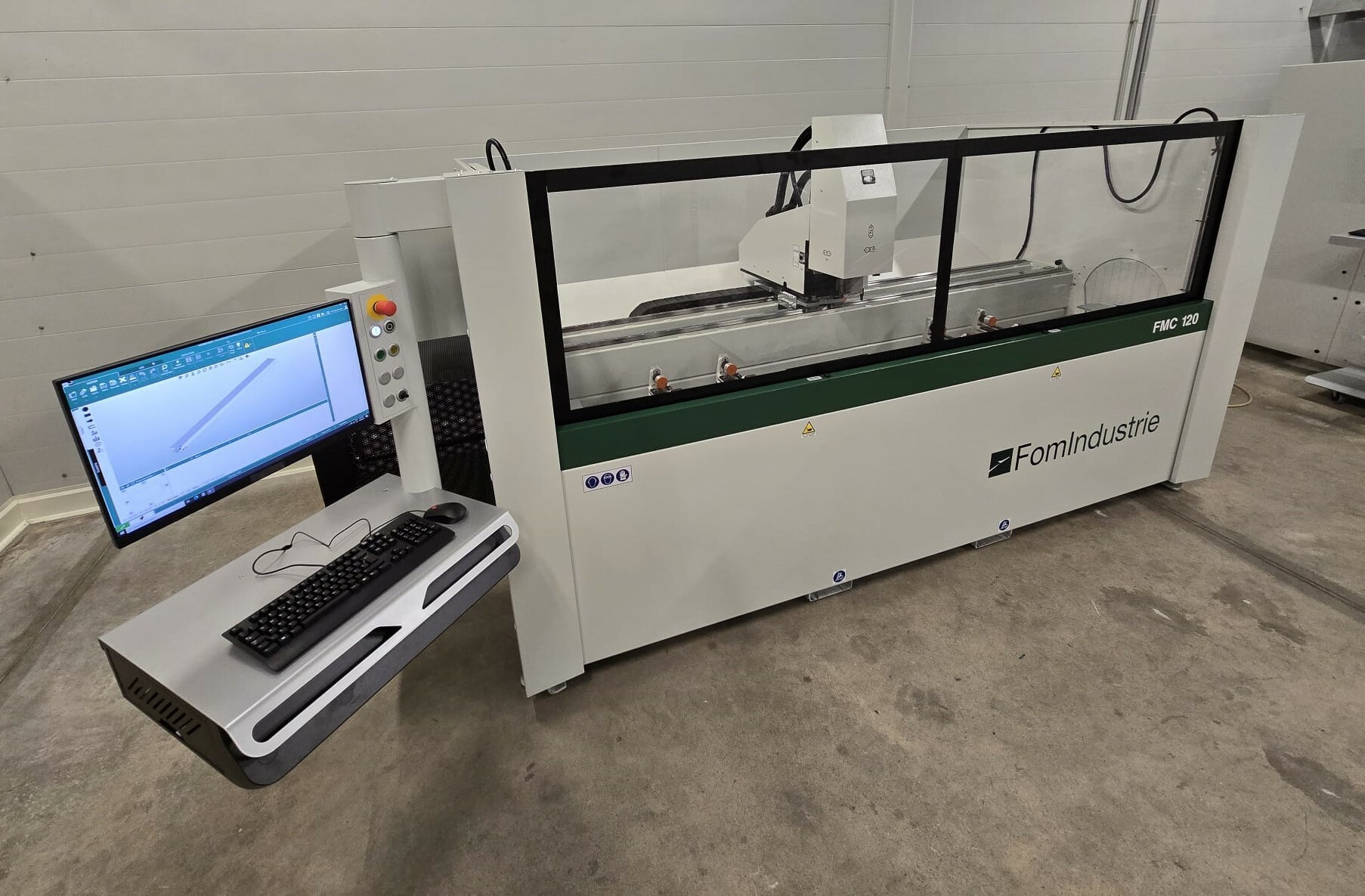

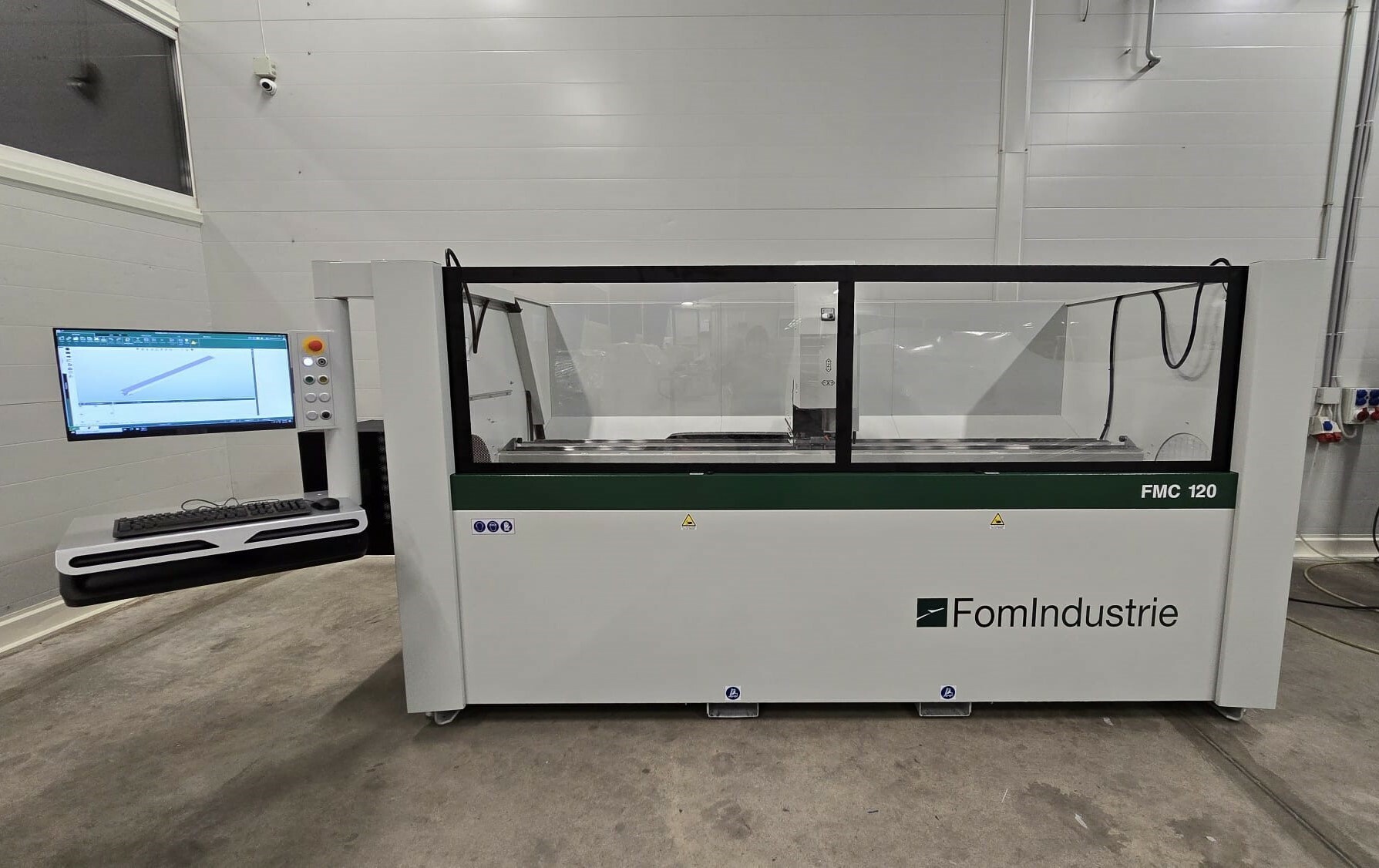

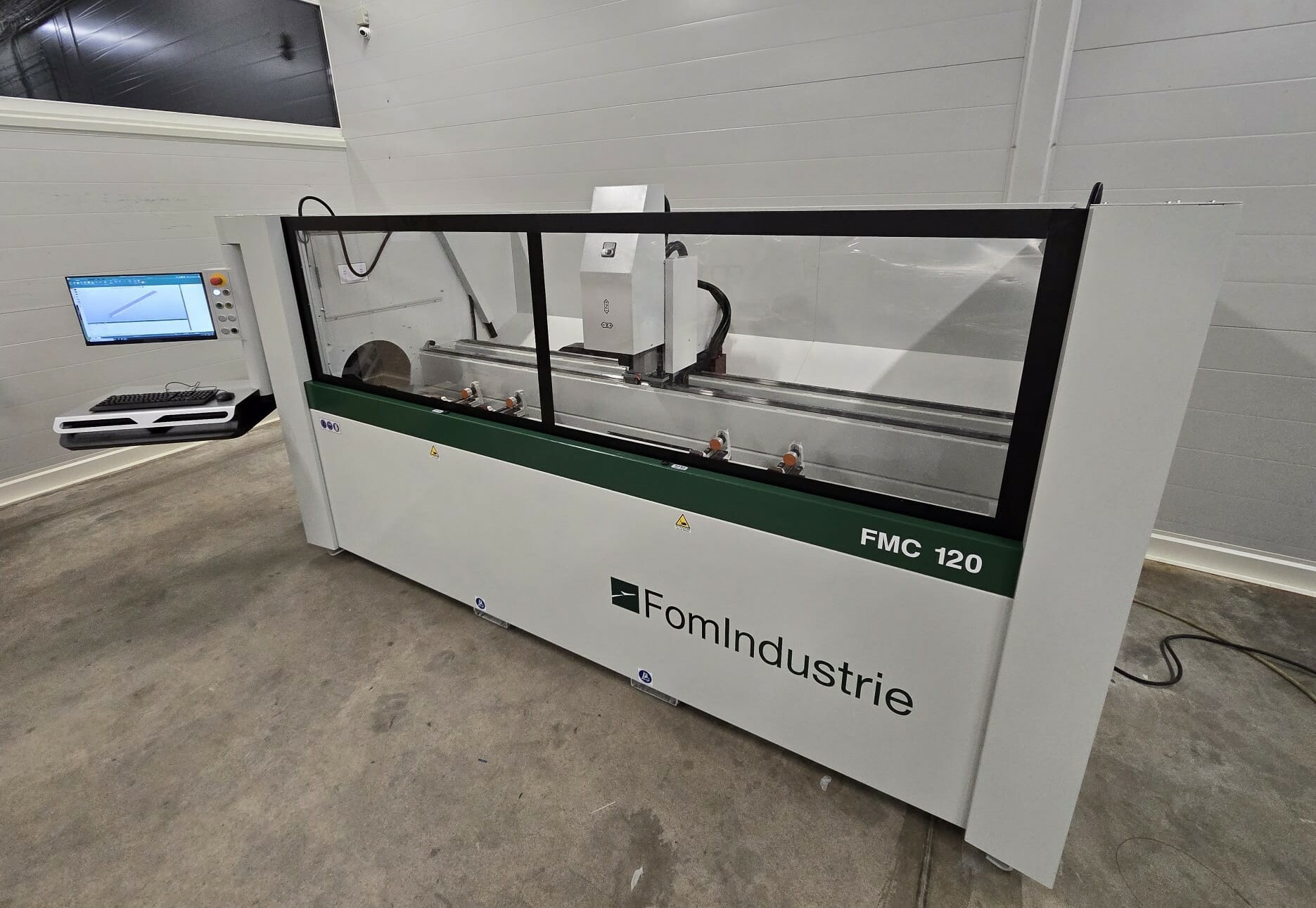

XX100329 CNC Machining Centre with 3 axes and worktable with pneumatic positioning at 0°/90°/180° FOM INDUSTRIE FMC 120
Machine in stock
Standard configuration:

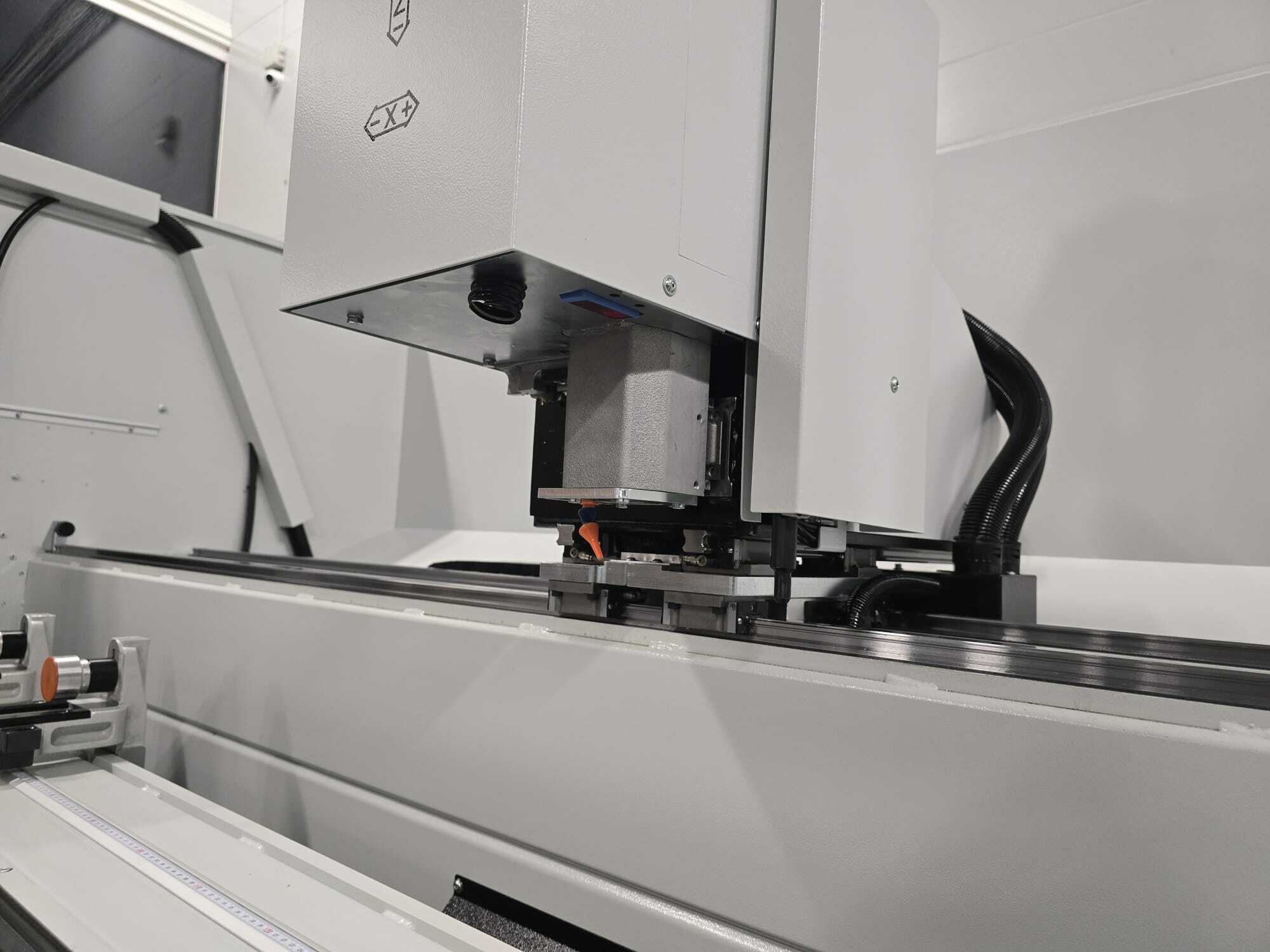

- Servo-ventilated three-phase spindle motor 3 kW, regulation of spindle rpm by numerical control - inverter (1000/17000 rpm)

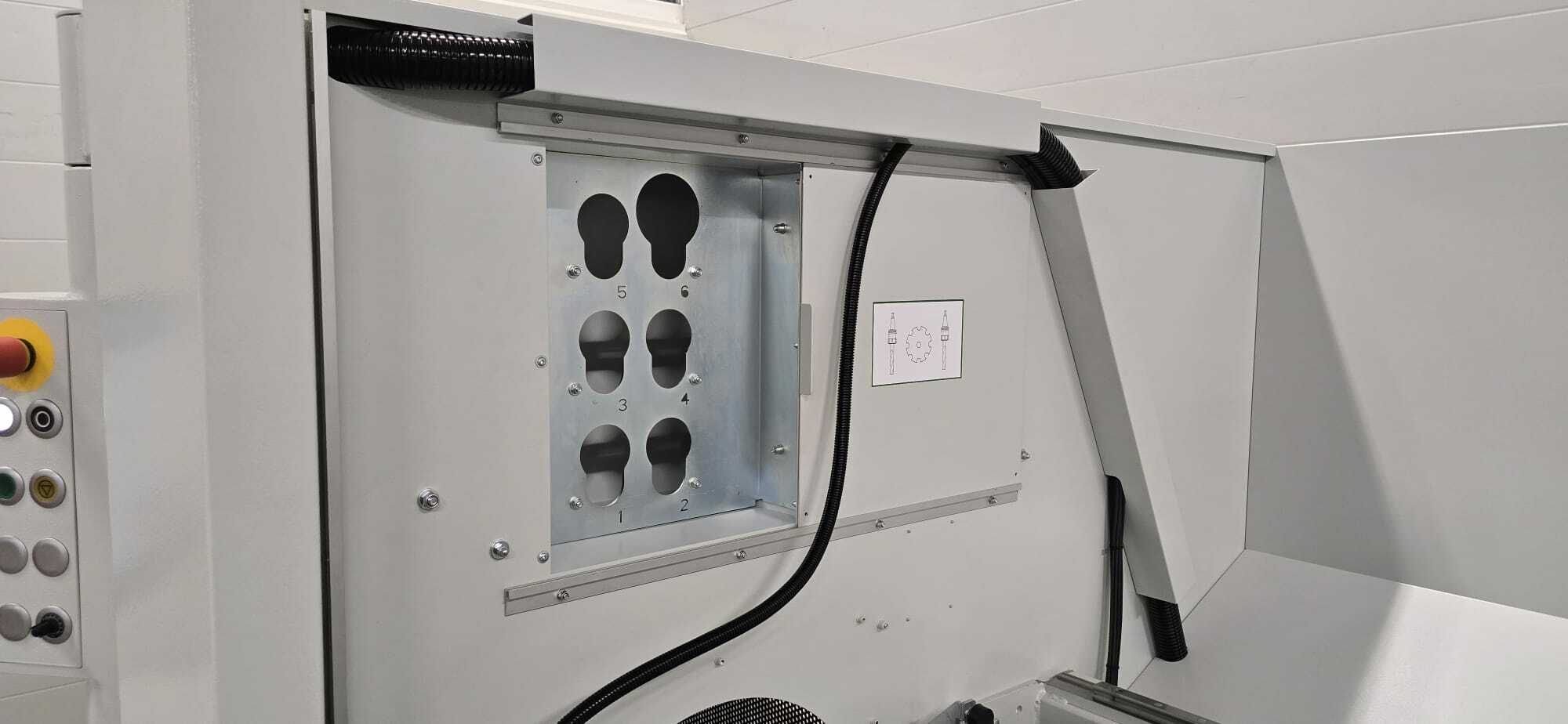

- 6 position tool-holder for manual change with pneumatic locking (ISO 30)
- Pneumatic rotation of the work table 0° to 90° to 180°

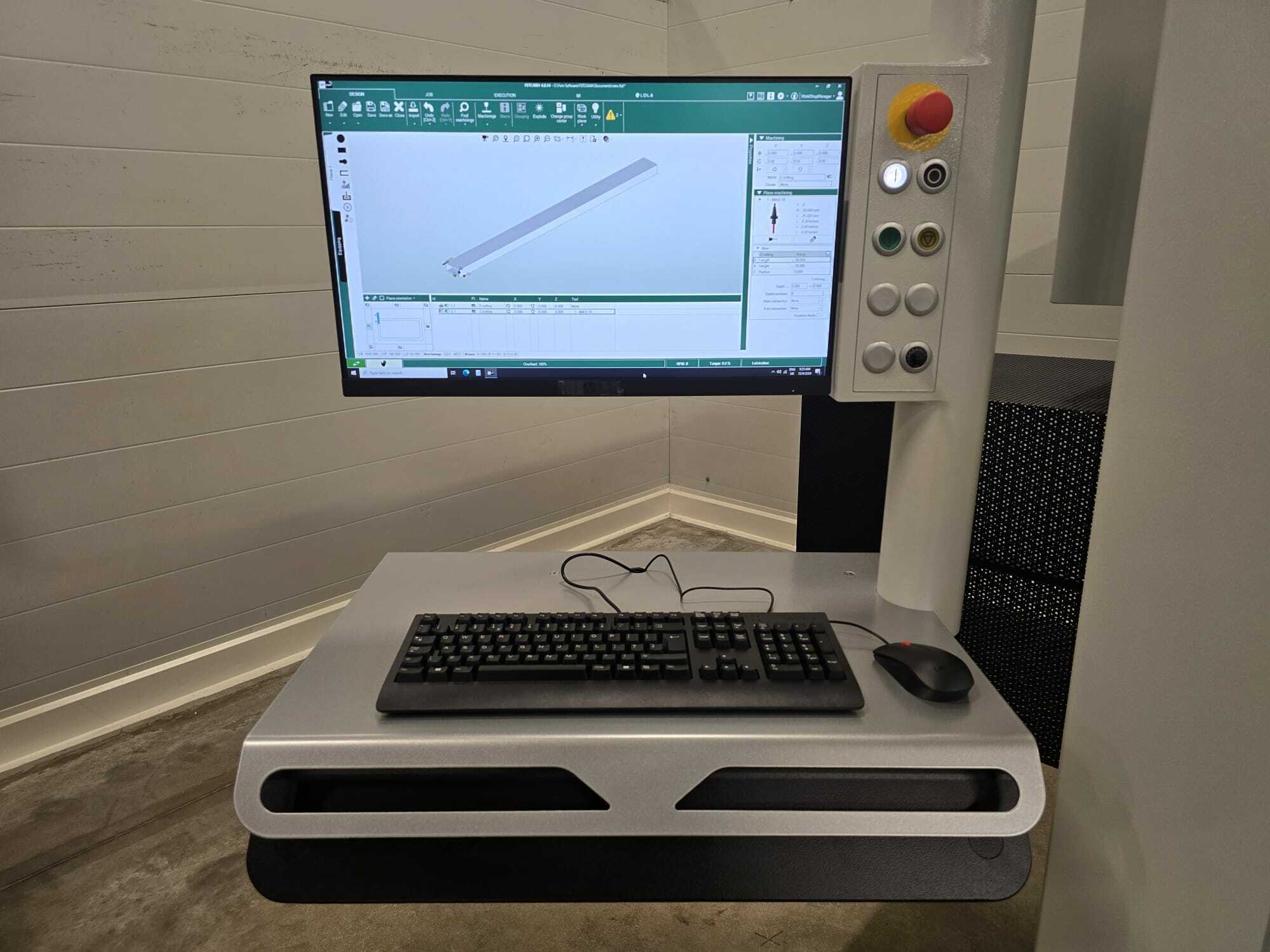

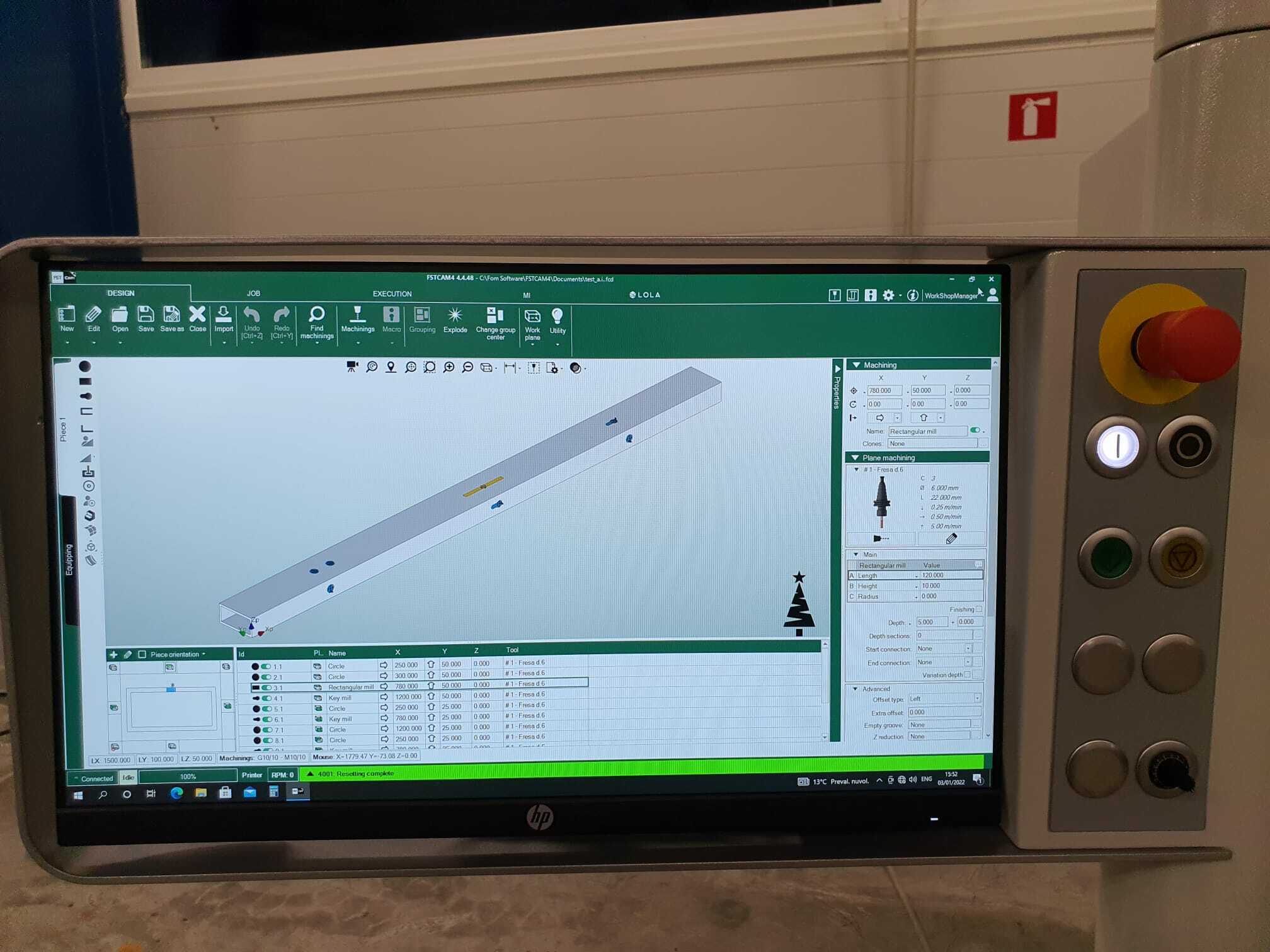

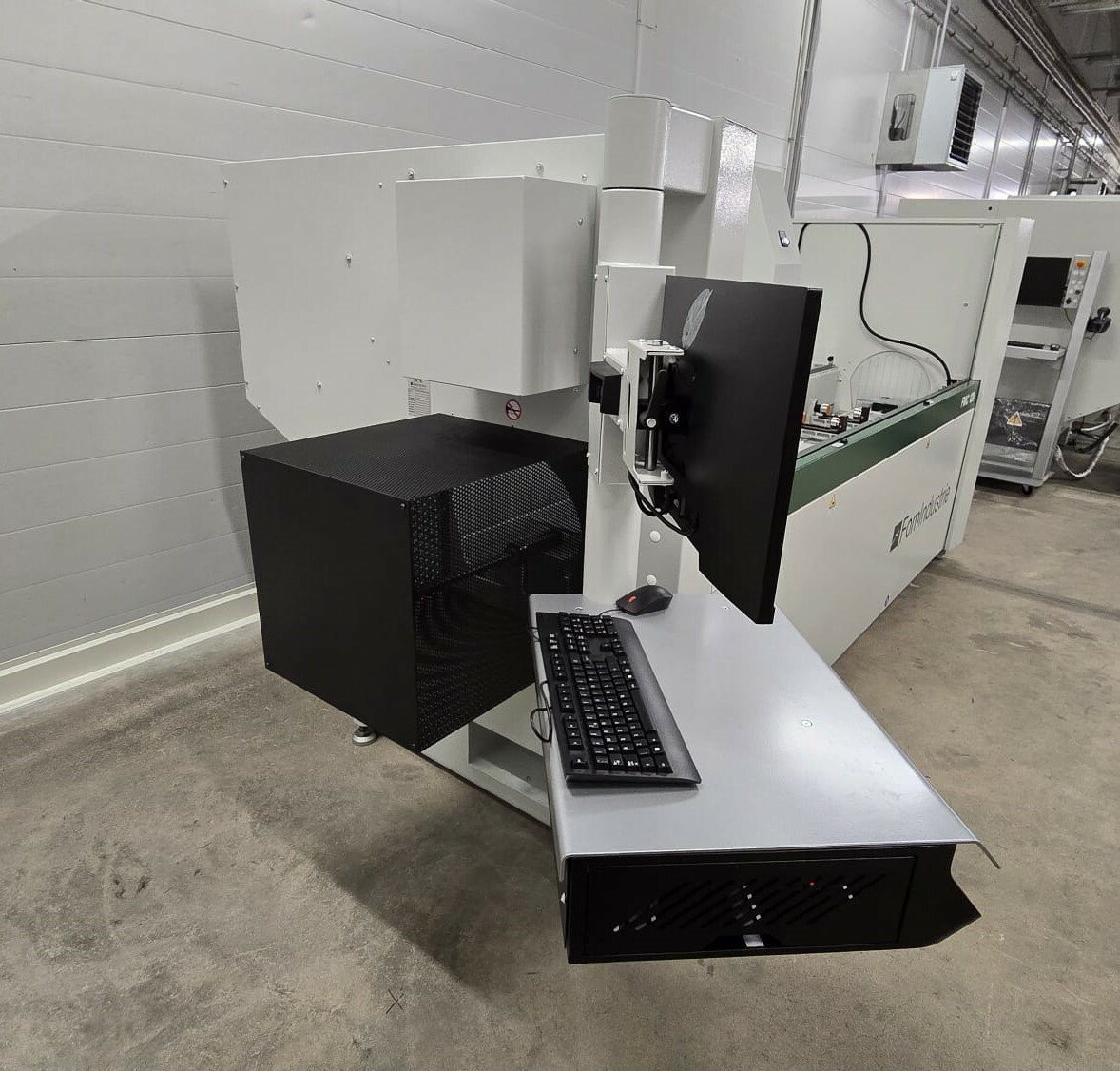

- Mobile control console with PC, 24''

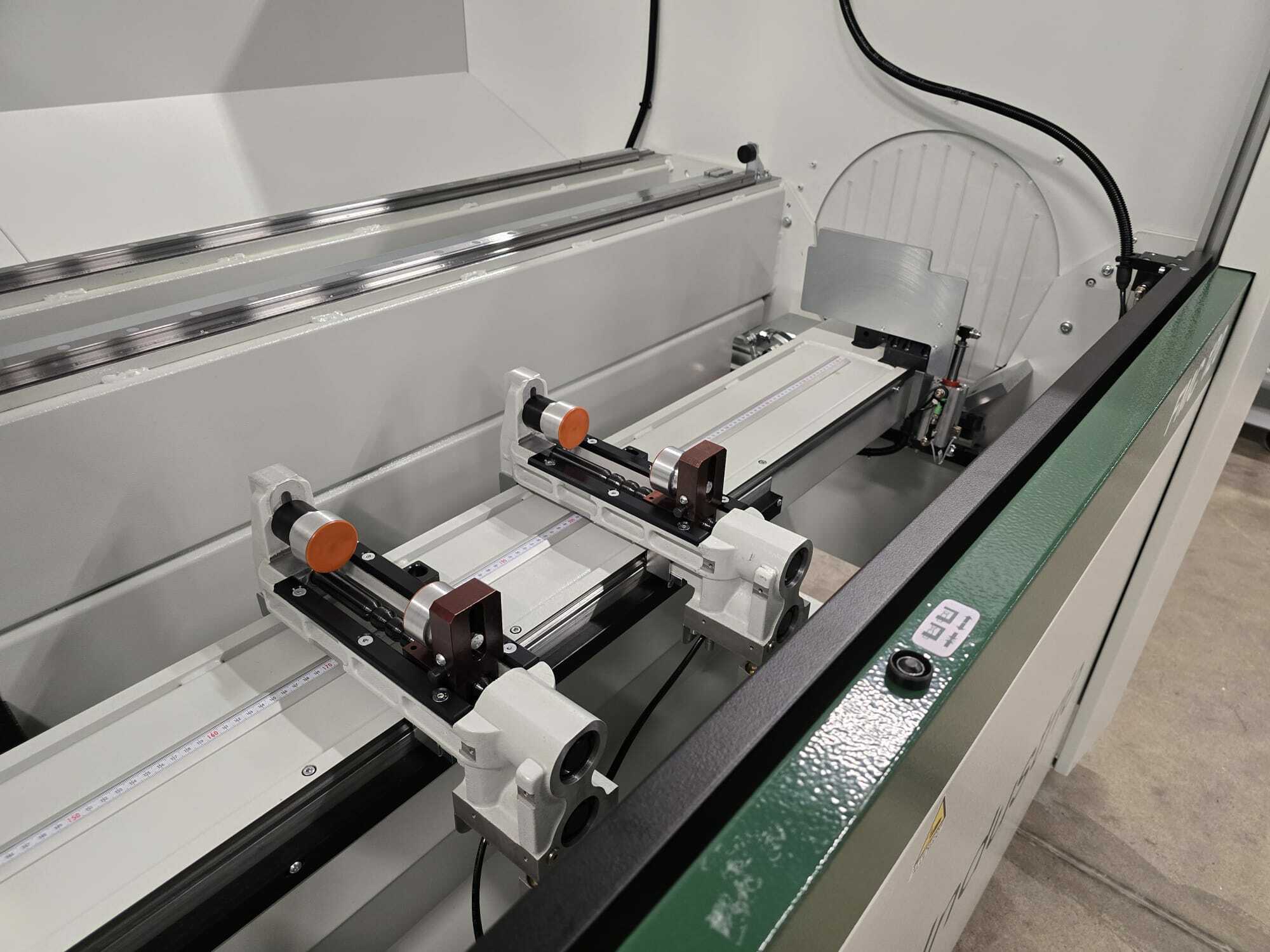

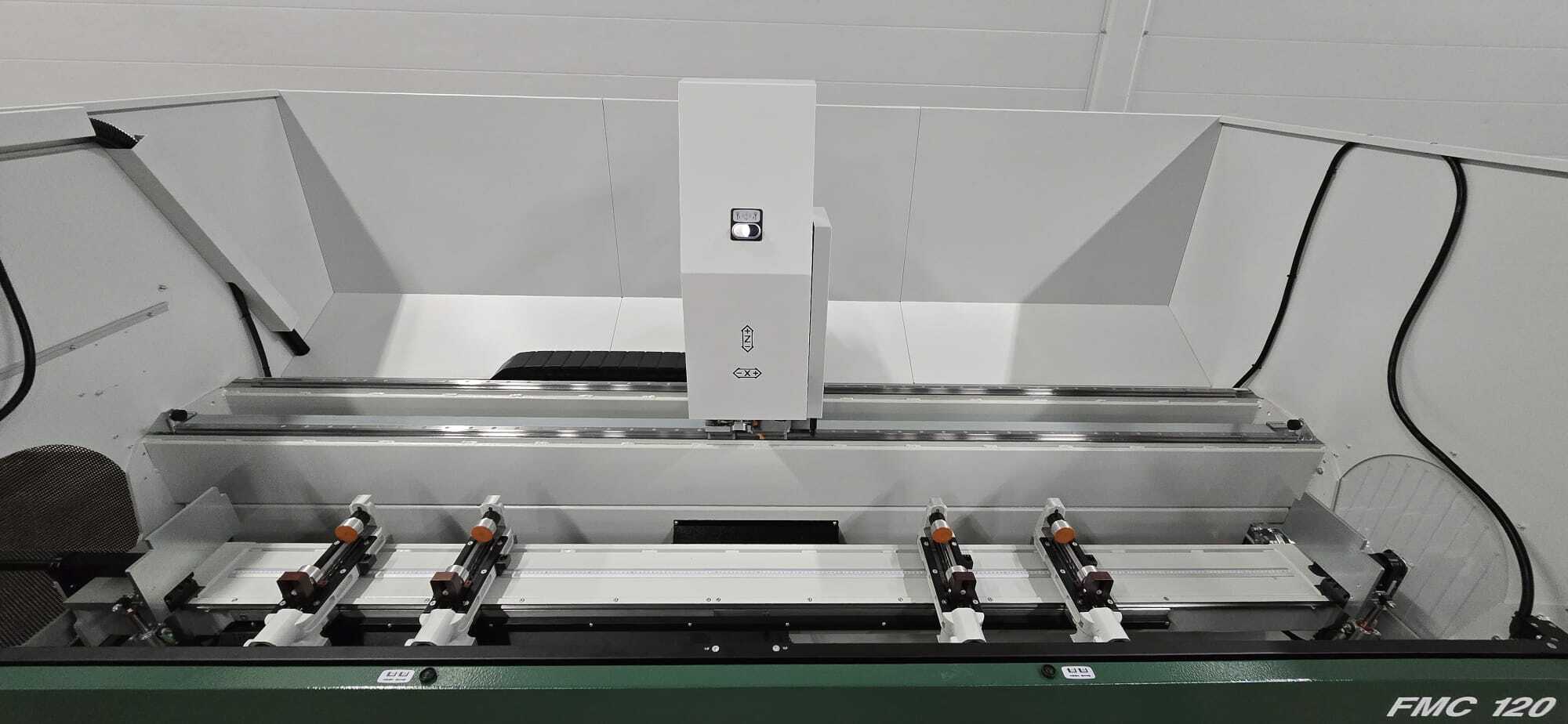

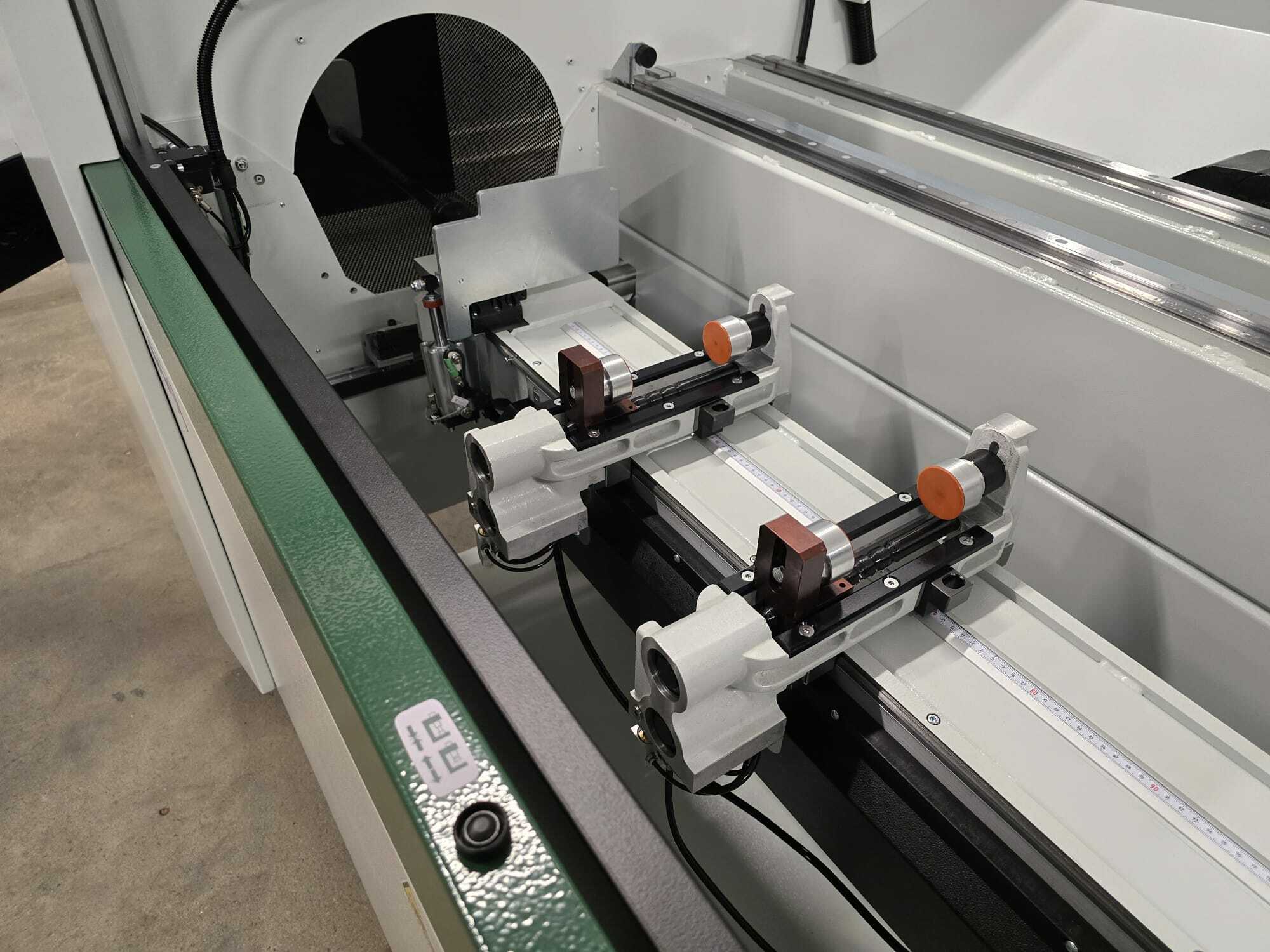

- No.4 pneumatic vices with manual positioning and double pressure with safety valves
- Manuallly adjustable profile reference stops on right and left of work table
- Minimum quantity lubrication (MQL) with pure oil
- Perimeter safety casing on 3 sides and retractable front door

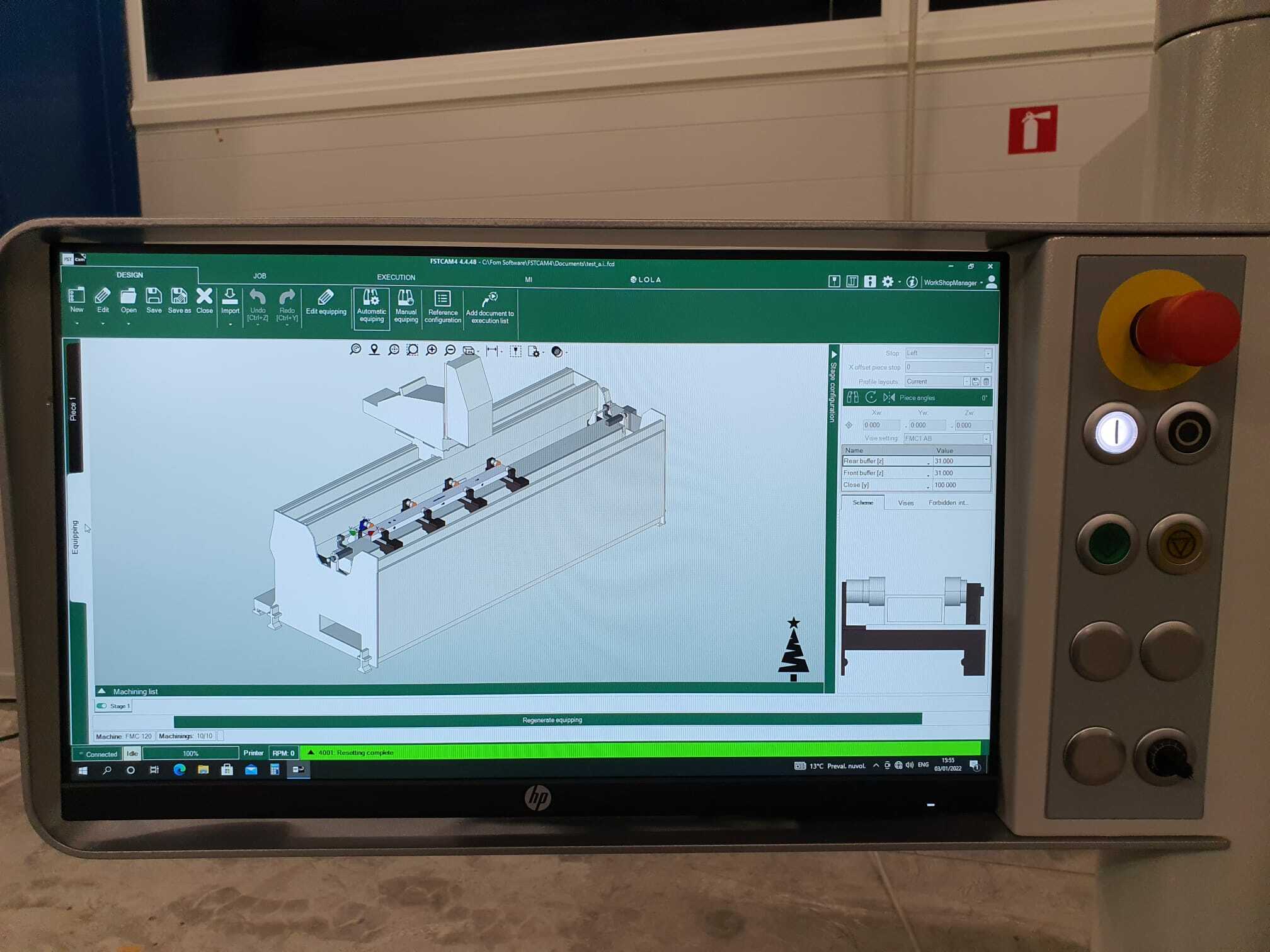

- FST CAM 4 program
Optional equipment installed on the machine:

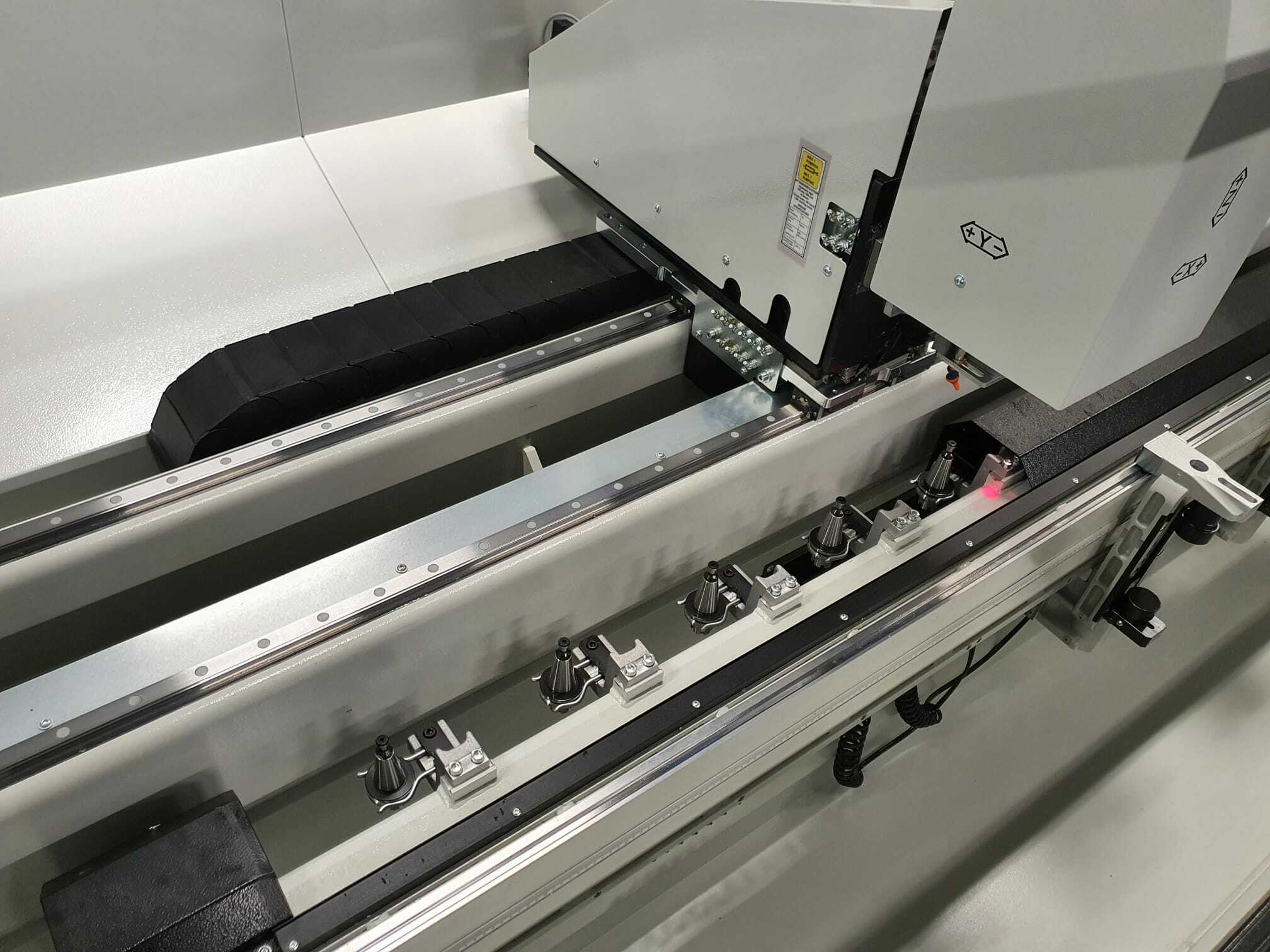

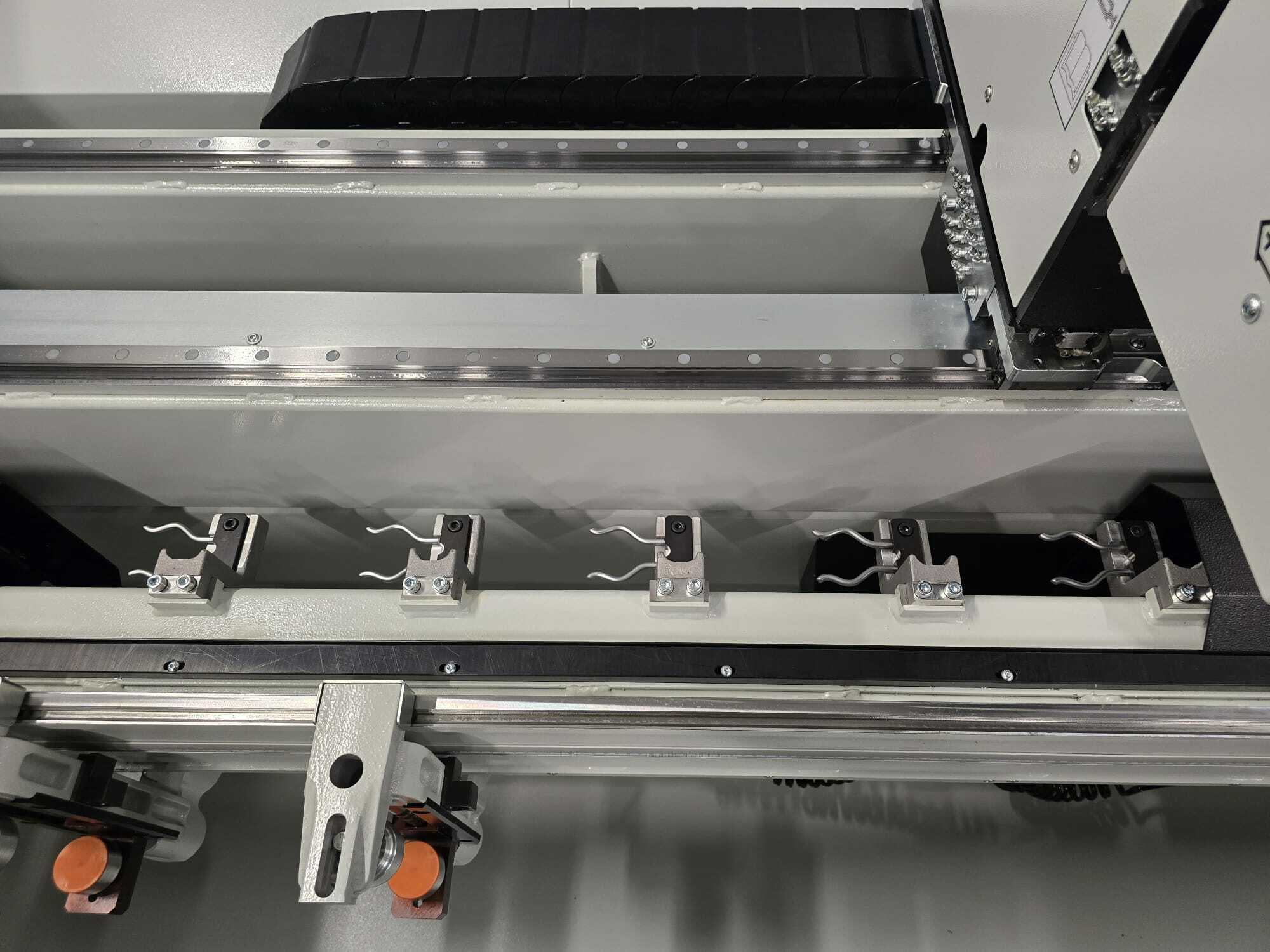

- PR204851 5-position automatic tool magazine (ISO 30)

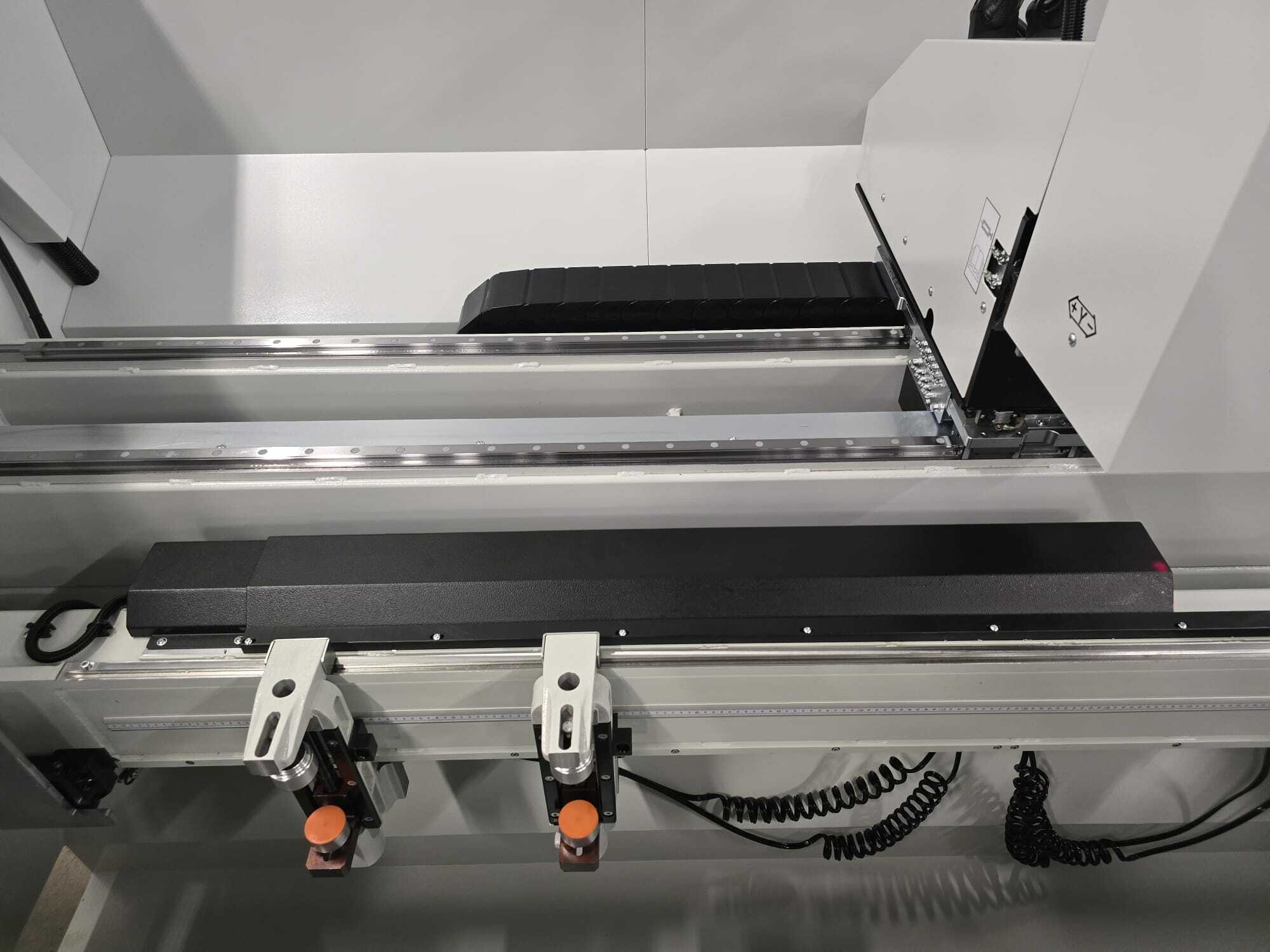

- PR207680 4-vice Easy-to-Set configuration:
• Transformation of standard vices into vices with automatic movement and pneumatic locking
• 2 retractable pneumatic side stops
• SW for vice positioning

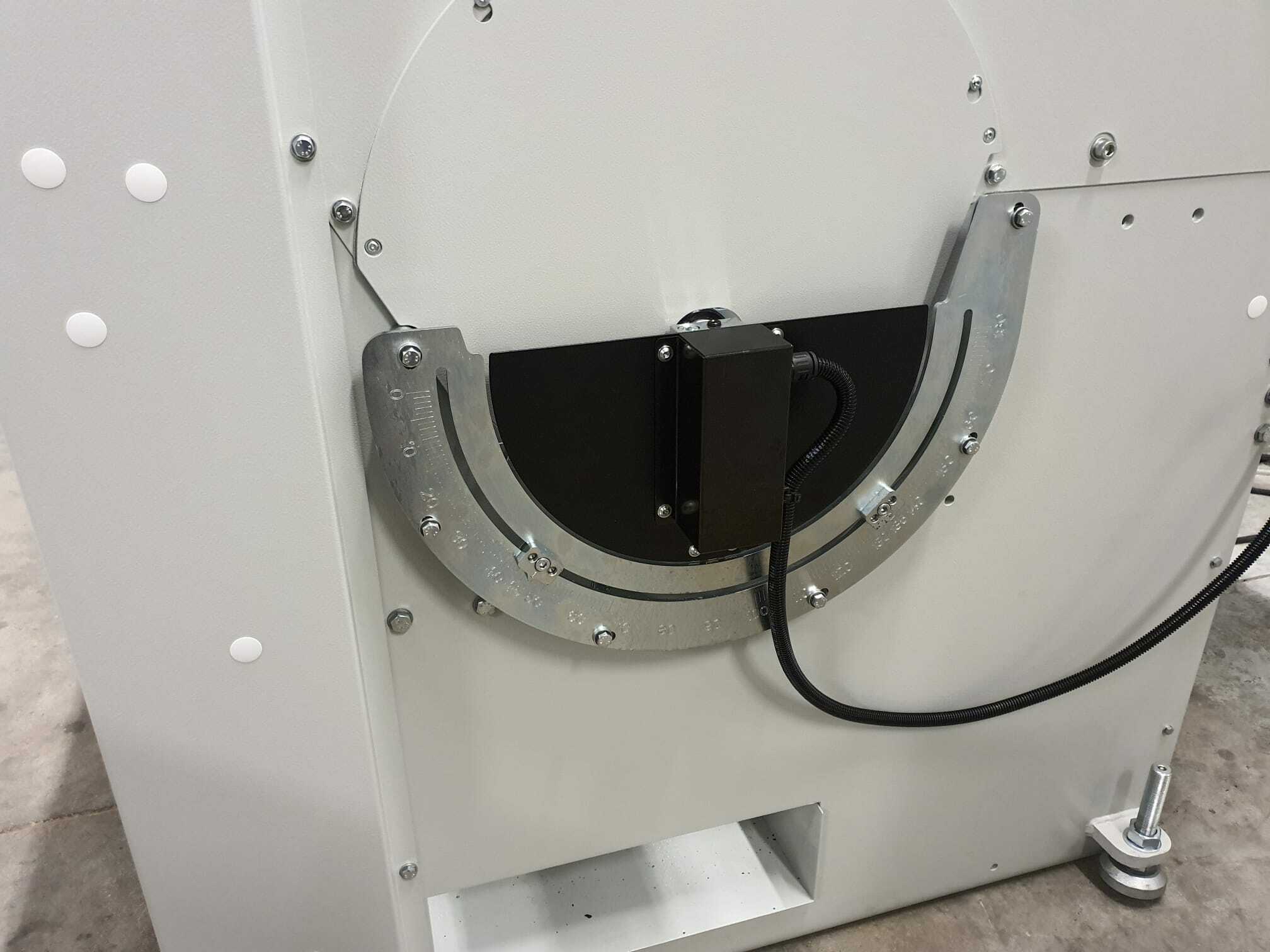

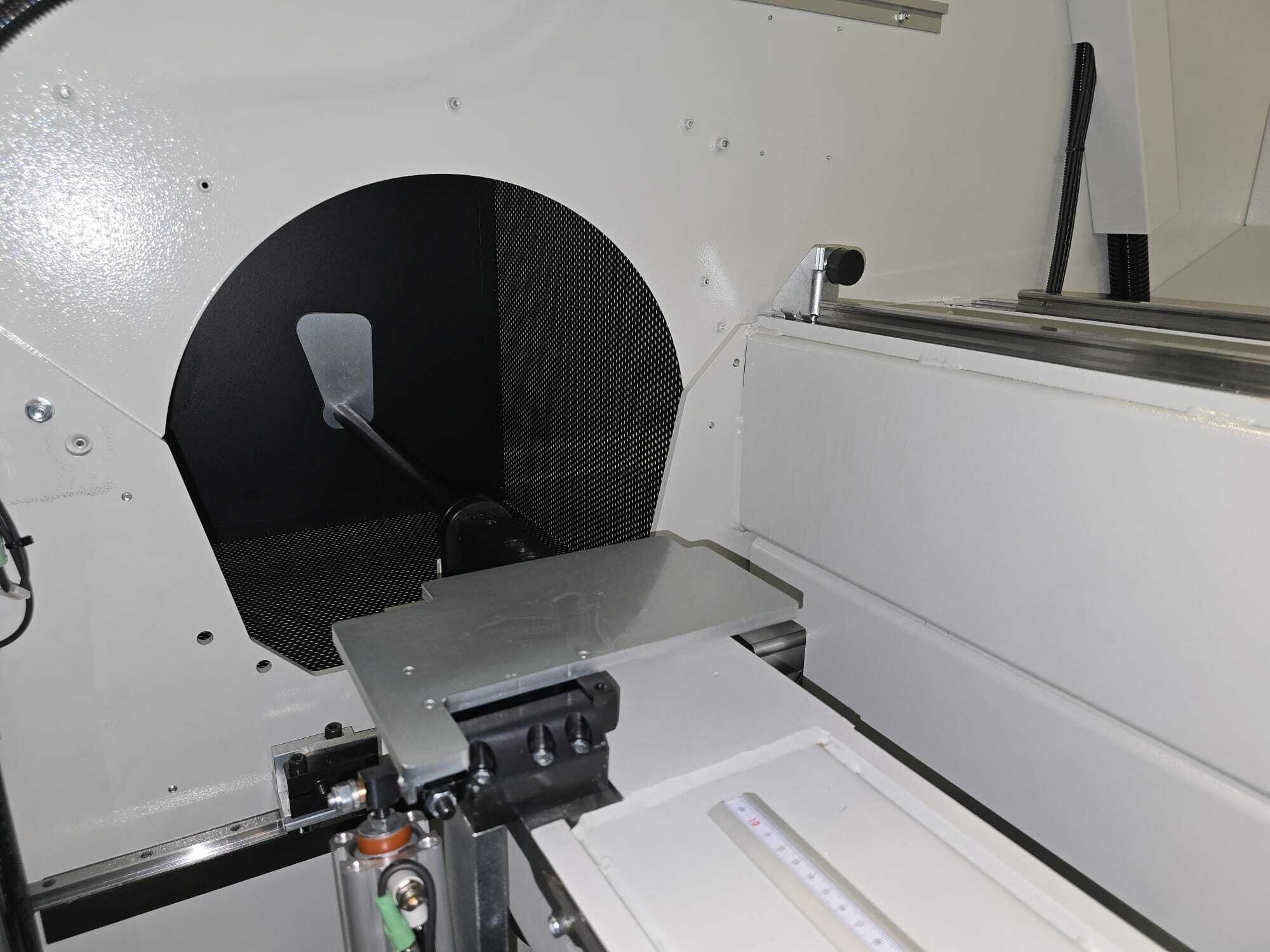

- PR-28965 Beam rotation stop for intermediate angles with manual adjustment
- PR204833 External stop with tunnel

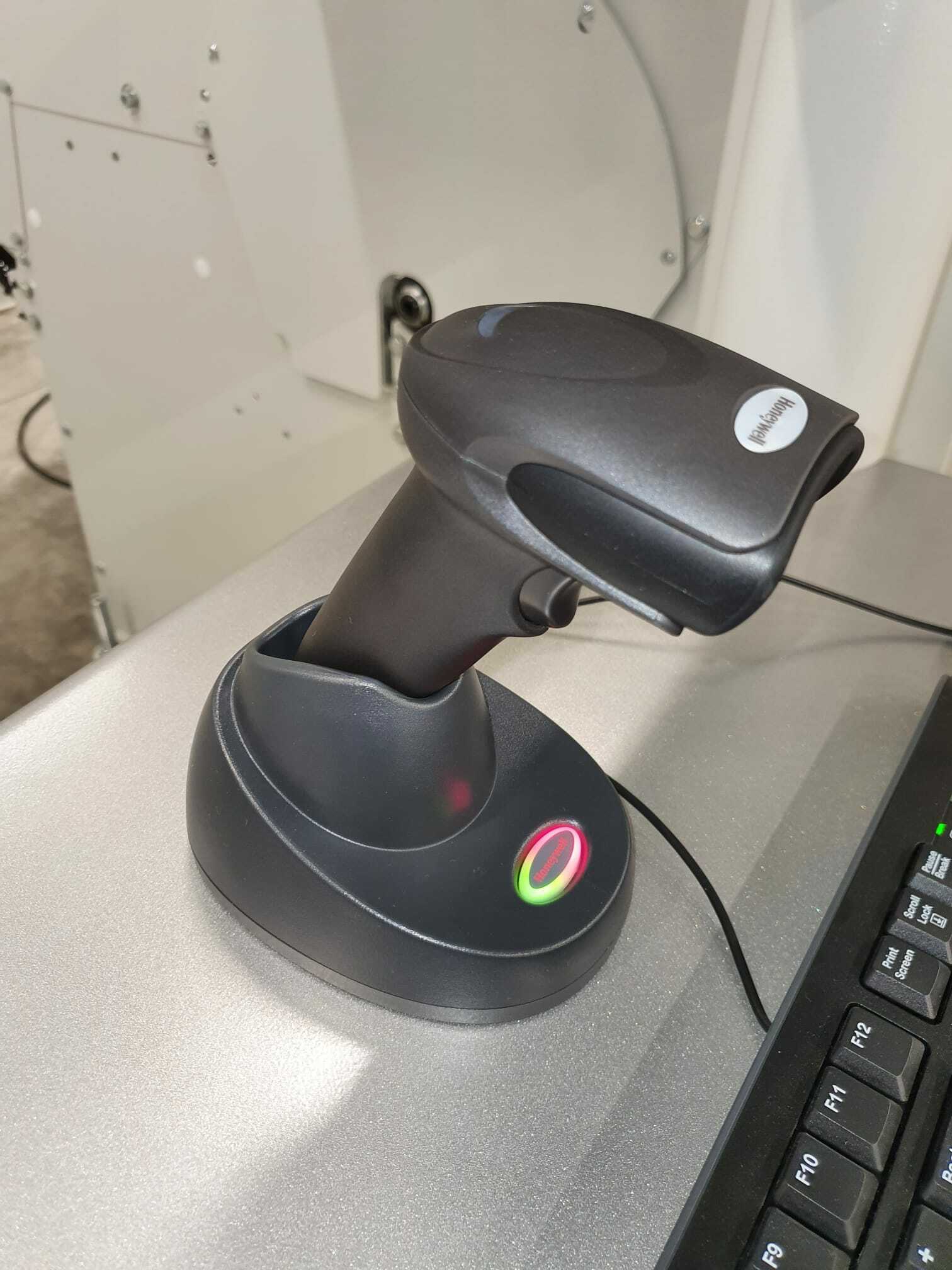

- PR202971 Data import software for data in accordance to FOM protocol with wireless bar-code reader
- PR-27602 Tool set for aluminium

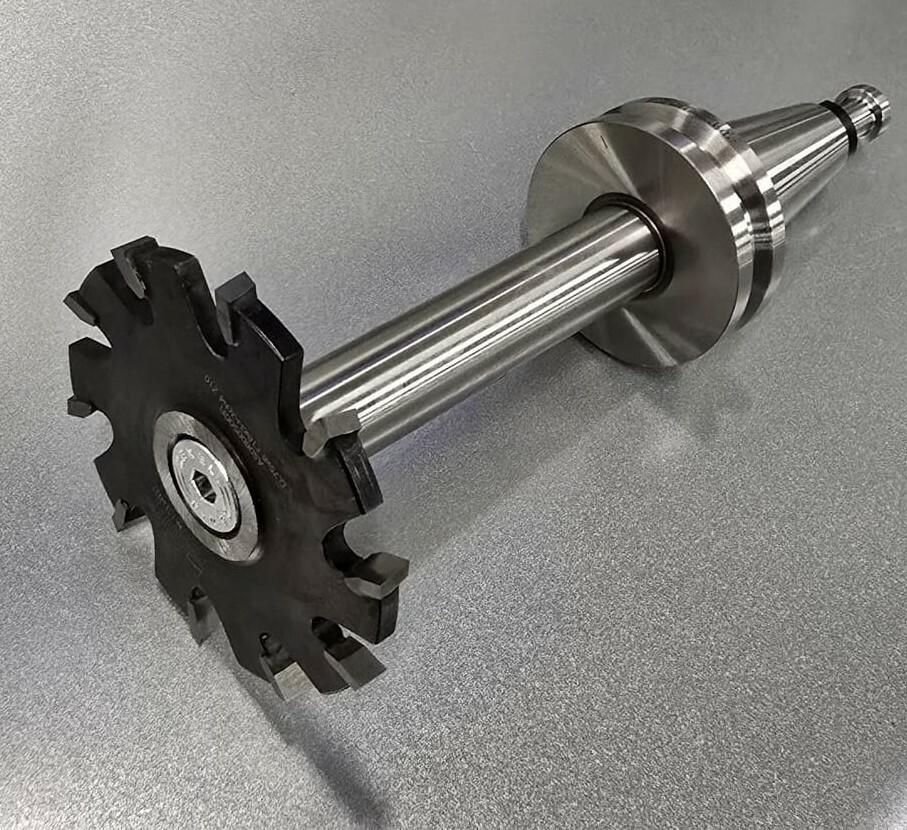

- QN-28849 ISO 30 cone with milling cutter Ø 75 mm thickness 6 mm for end milling
