MISTAL 26 A

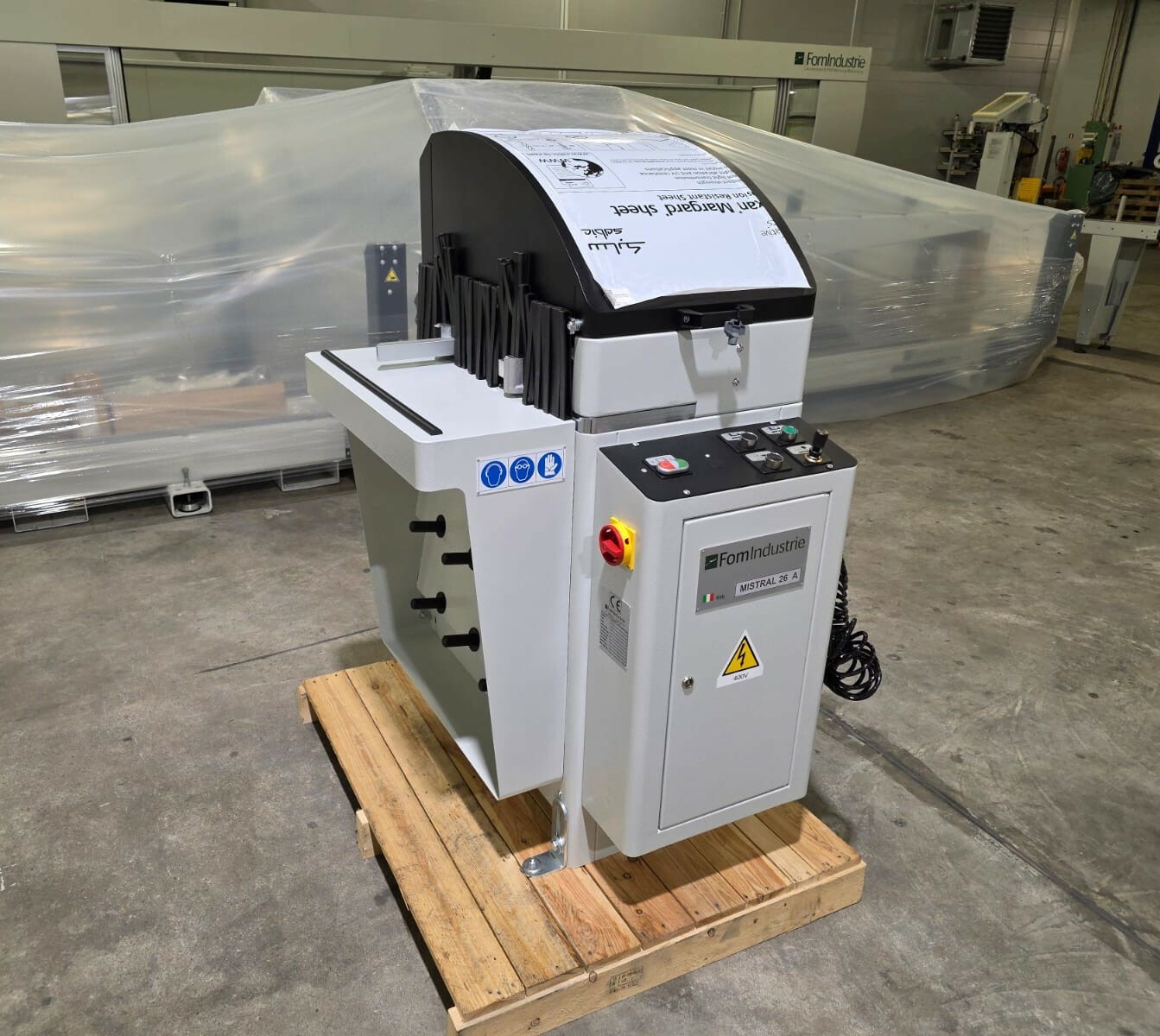

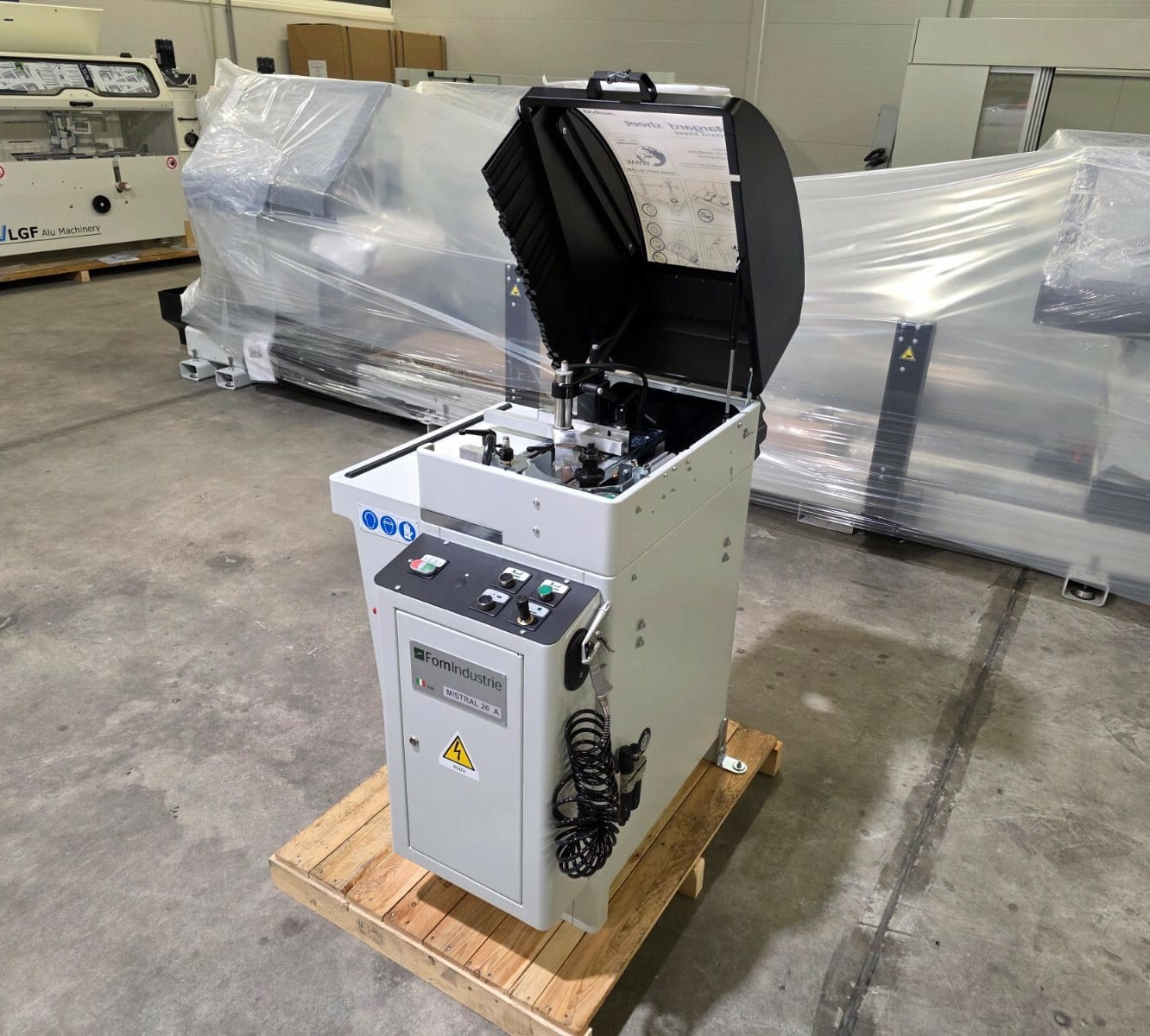

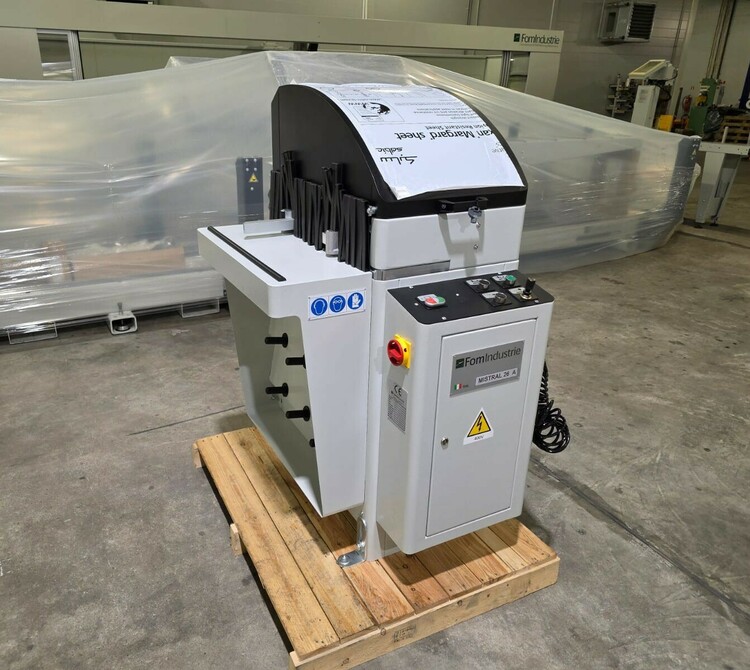

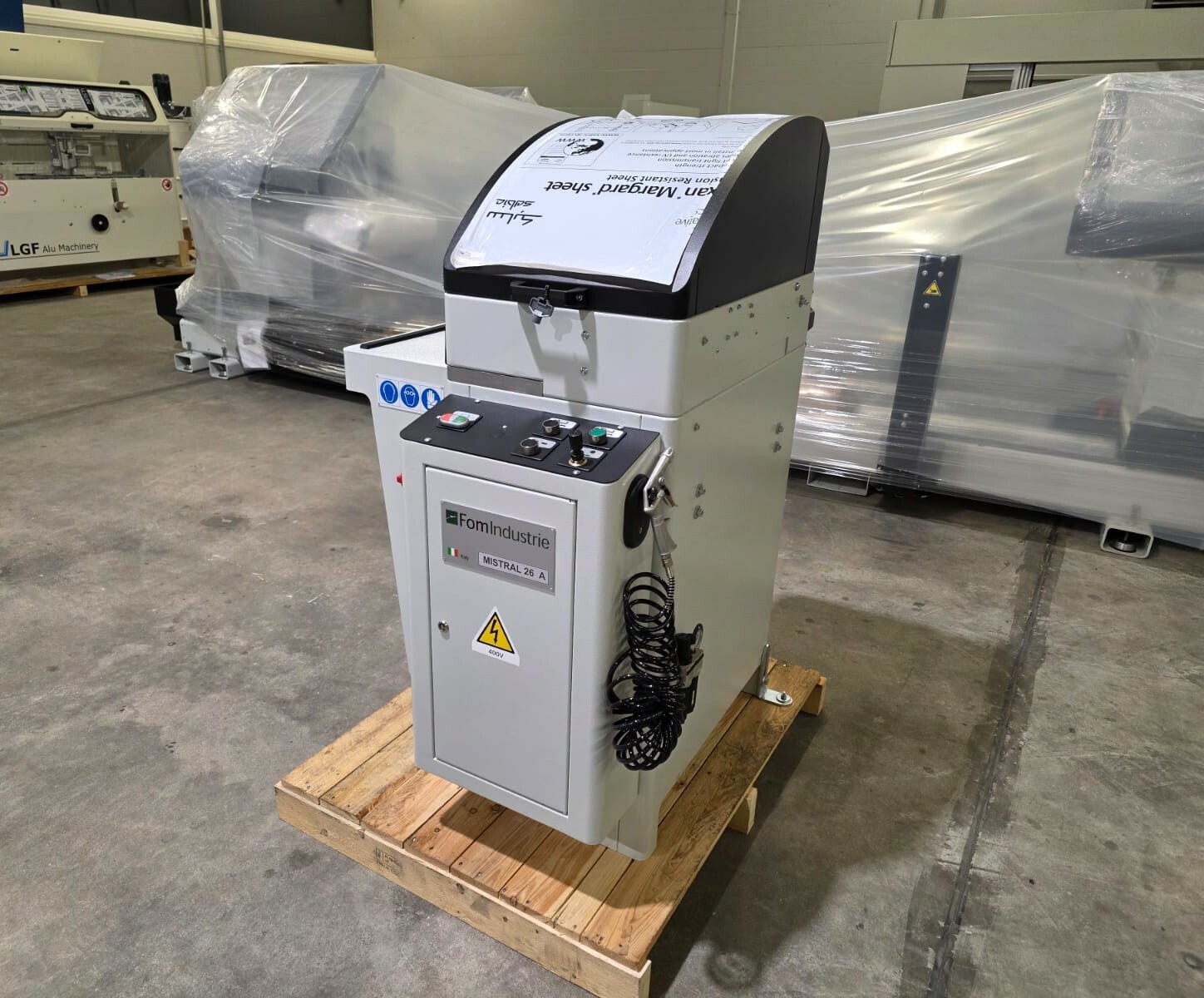

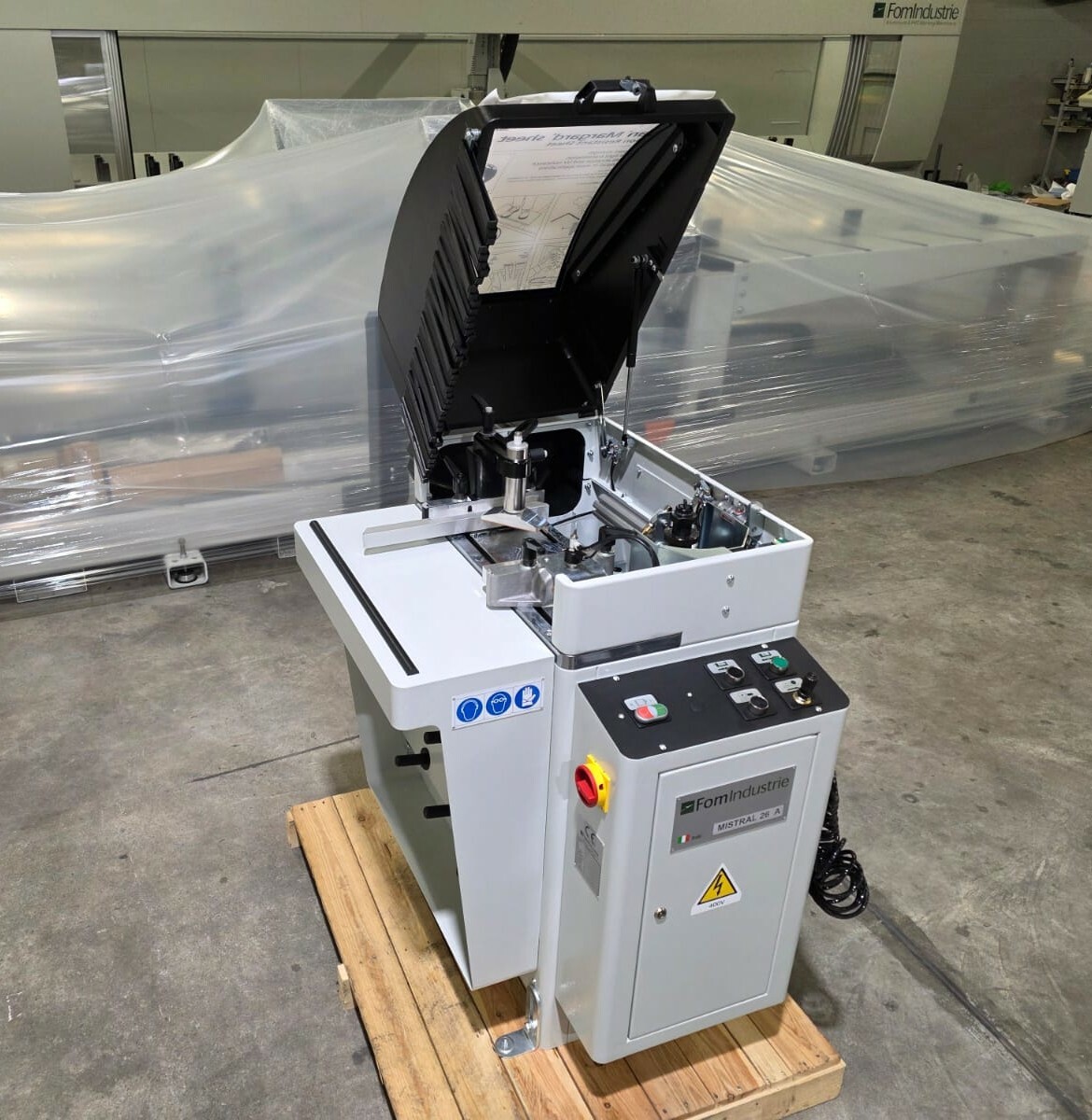

XX-11136 End milling machine FOM INDUSTIRE MISTRAL 26A
Machine in stock
Standard configuration:
- End milling angle 45° Rh, 90°, 45° Lh and intermediate angles
- Milling tool unit rotation speed 7000 rpm
- Max. milling tool size Ø 175 mm
- Automatic feed with rapid approach controlled by milling tool unit photocell
- Quick change milling tool unit
- Milling tool unit balancing system

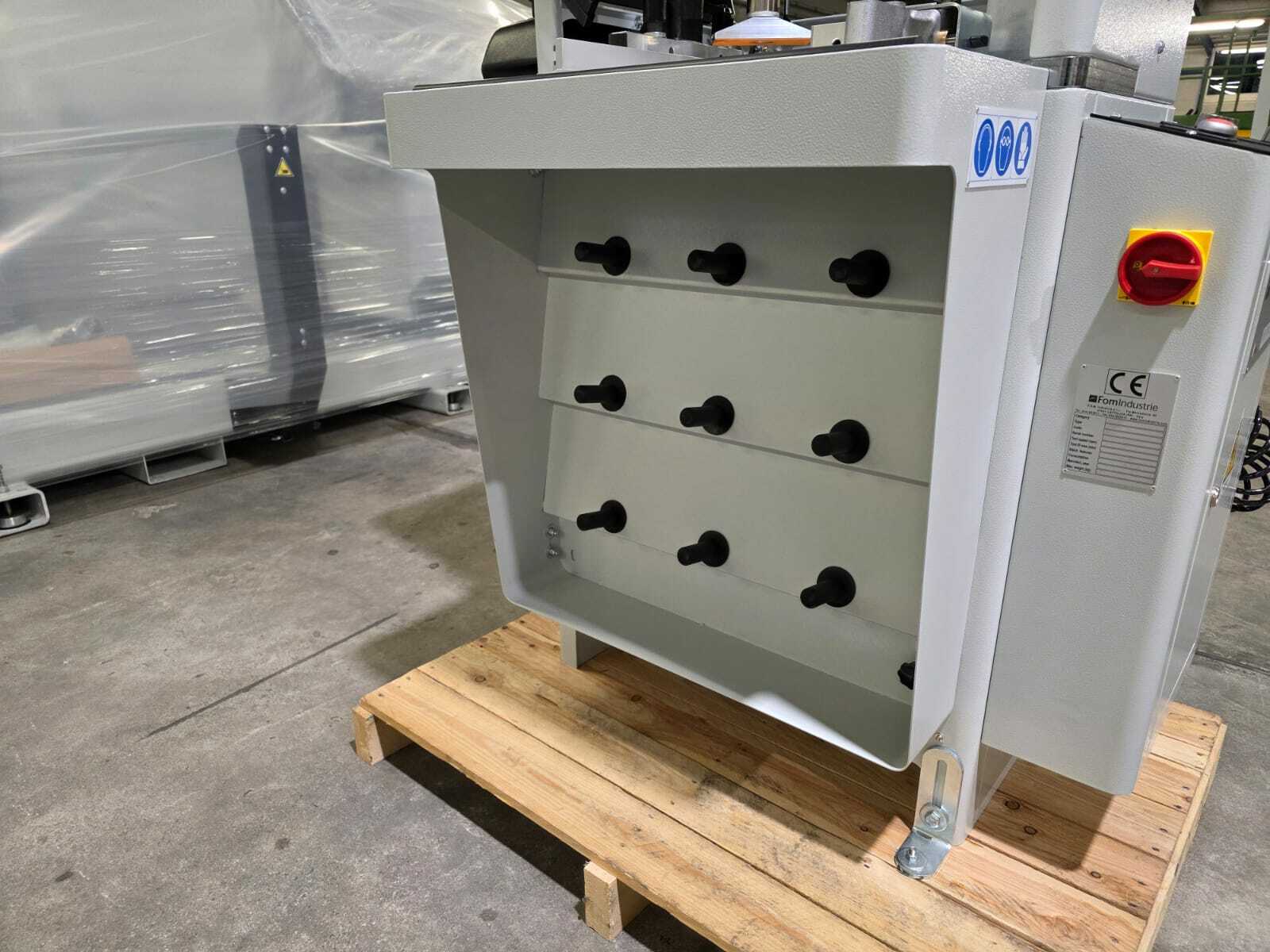

- Milling units magazine with 9 slots
- Spray mist blade lubrication system
- Carriage stroke: X max= 350 mm
- Milling depth: Y max = 65,5 mm
- Maximum milling unit height: 125 mm
- Working capacity: see attached diagram
- Patented system that allows profile positioning without the need for goniometries
- Set up for the extraction of chips and fumes

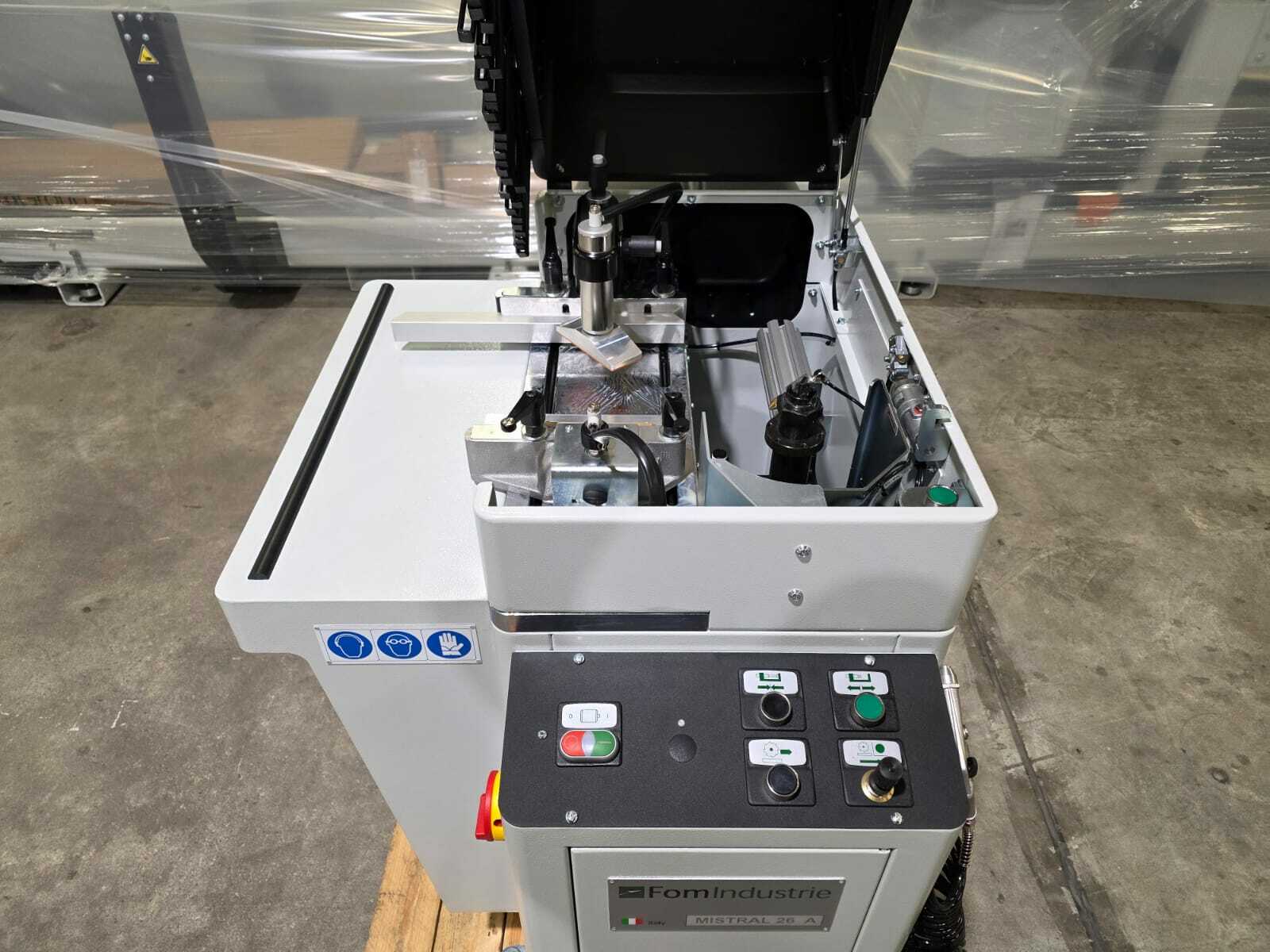

- Integral safety casing around work table with opening lock
- Double working pressure servo-controlled in low pressure
- In set Cutter sleeve for milling units

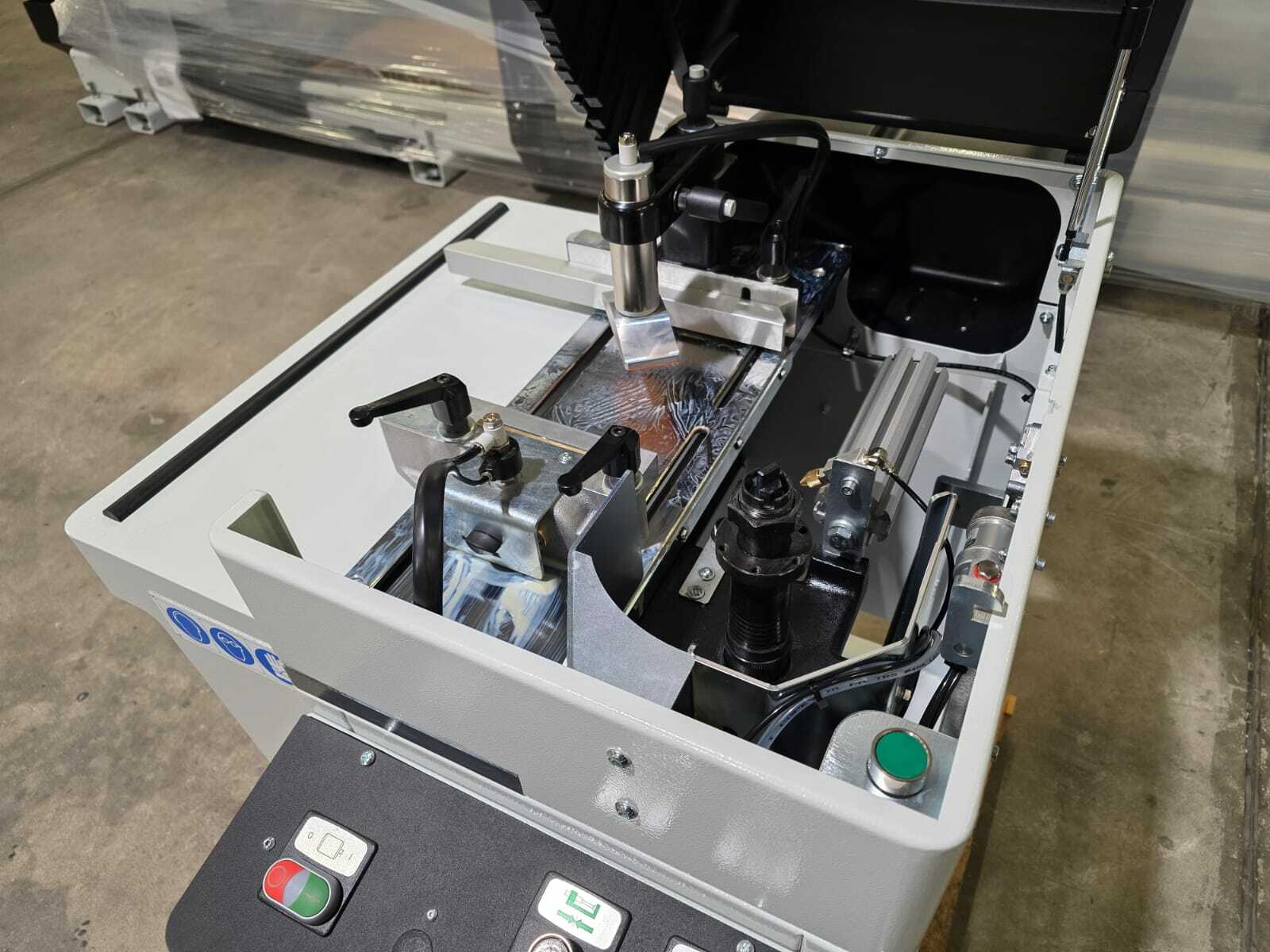

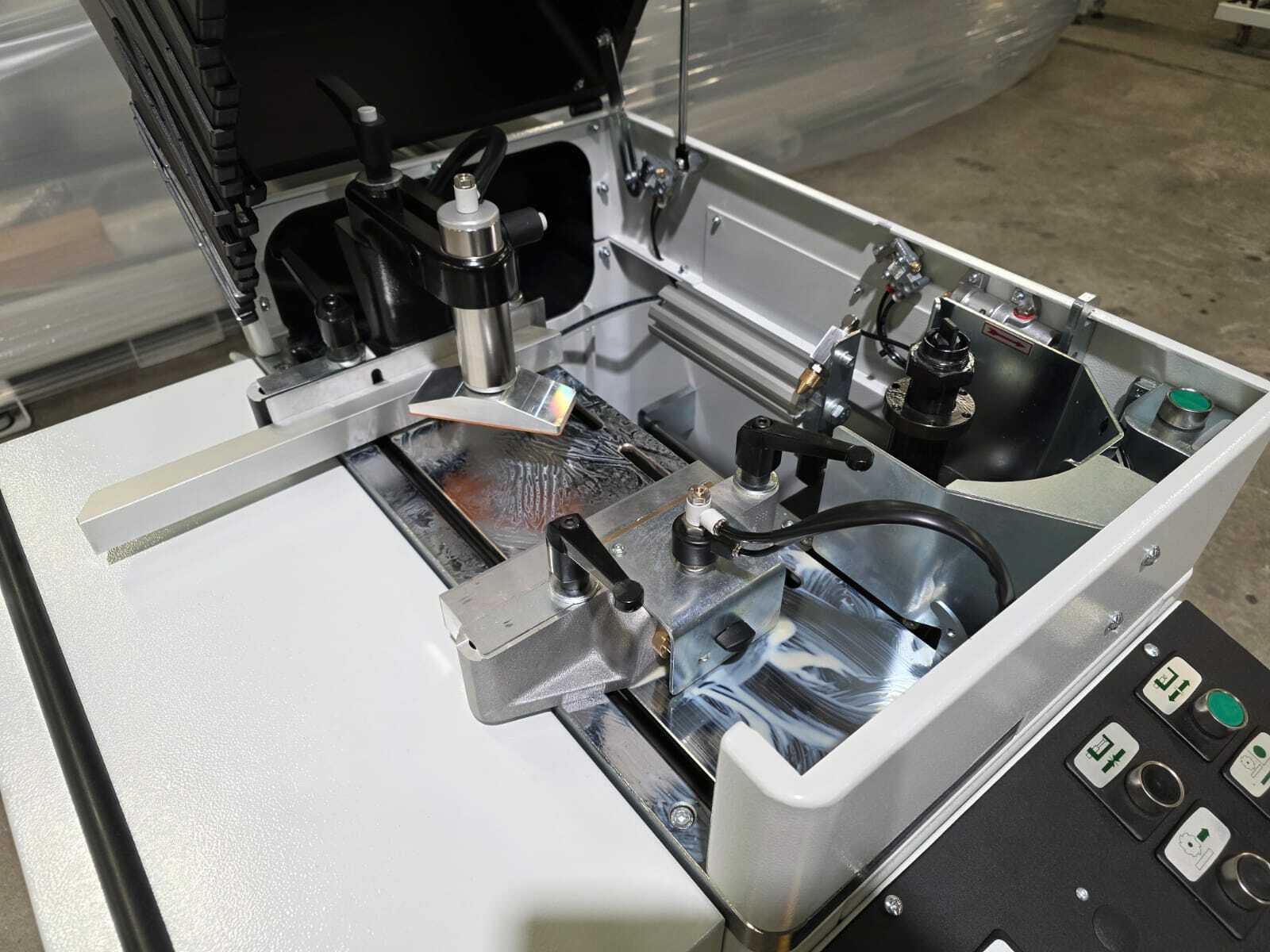

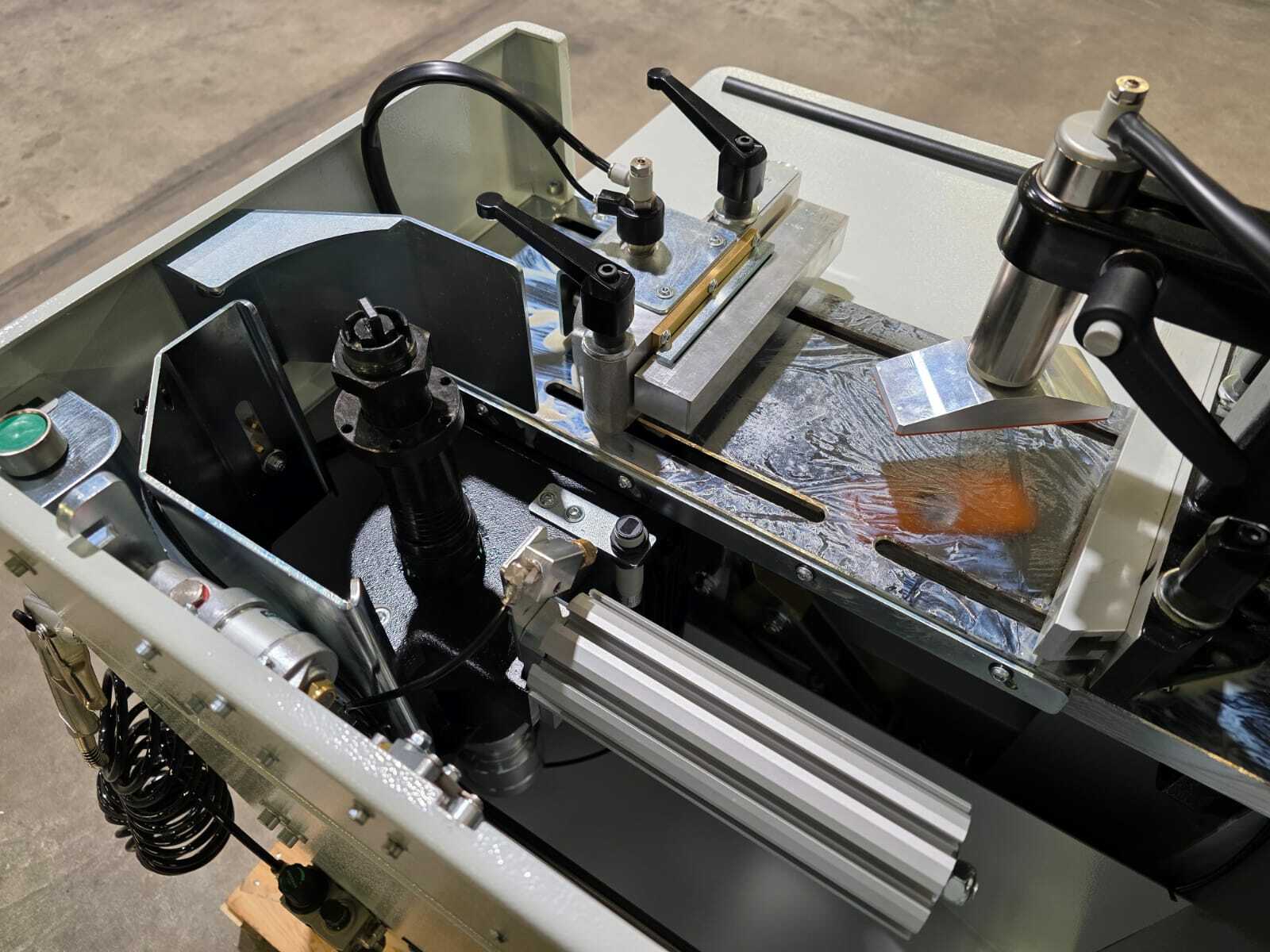

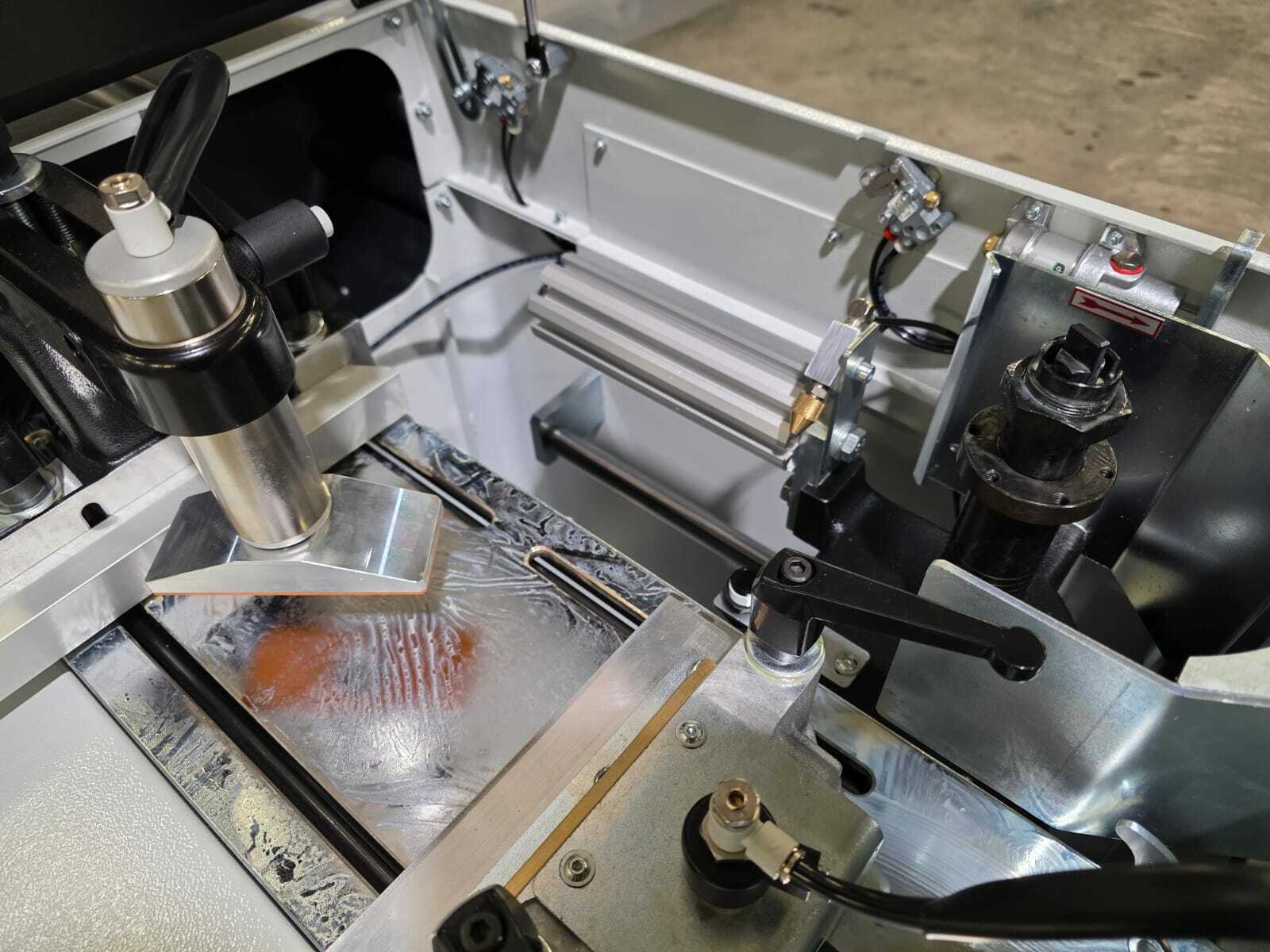

- Horizontal and vertical vices
- 8-positions star-shaped length stop
