FMC 470

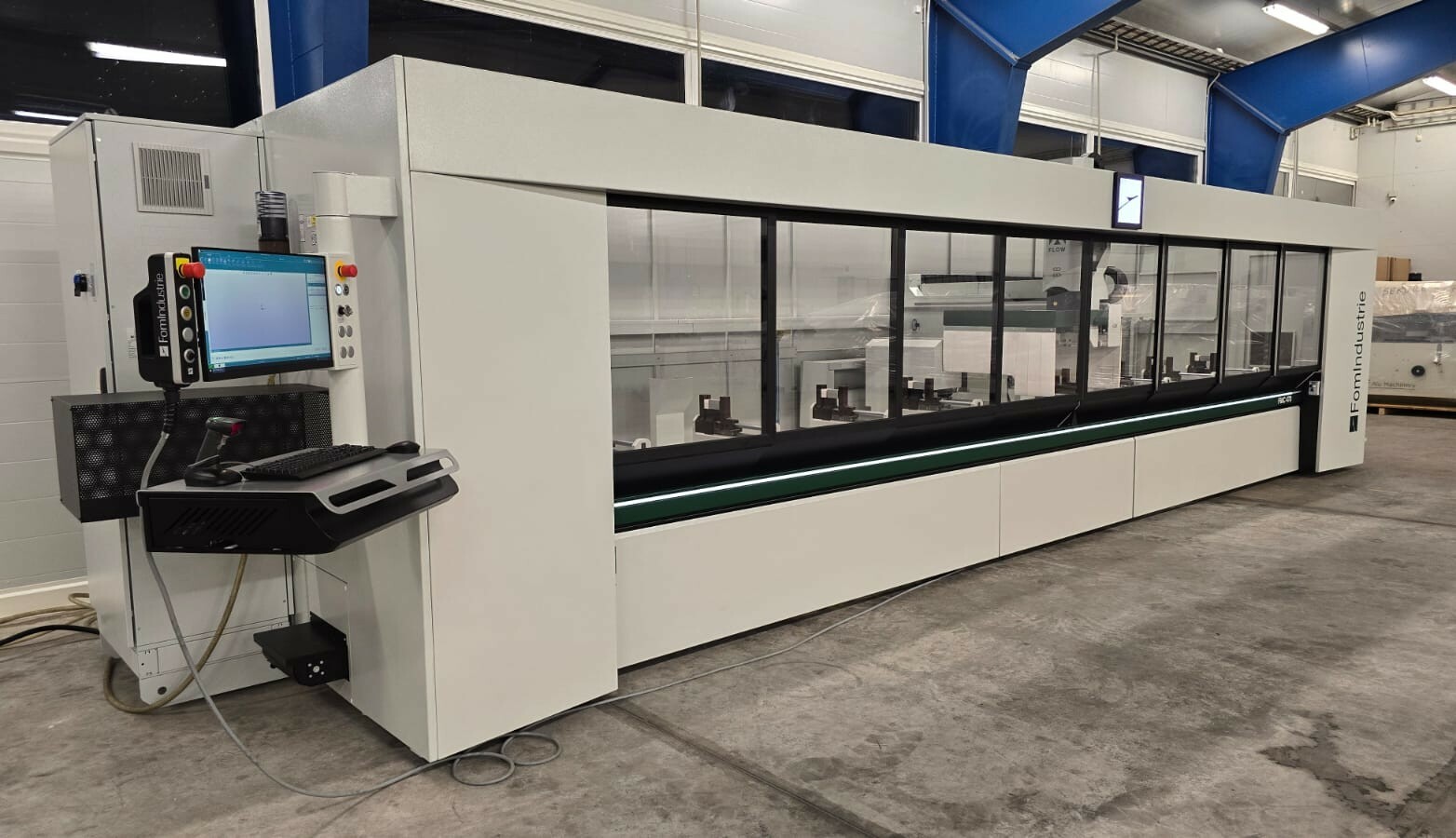

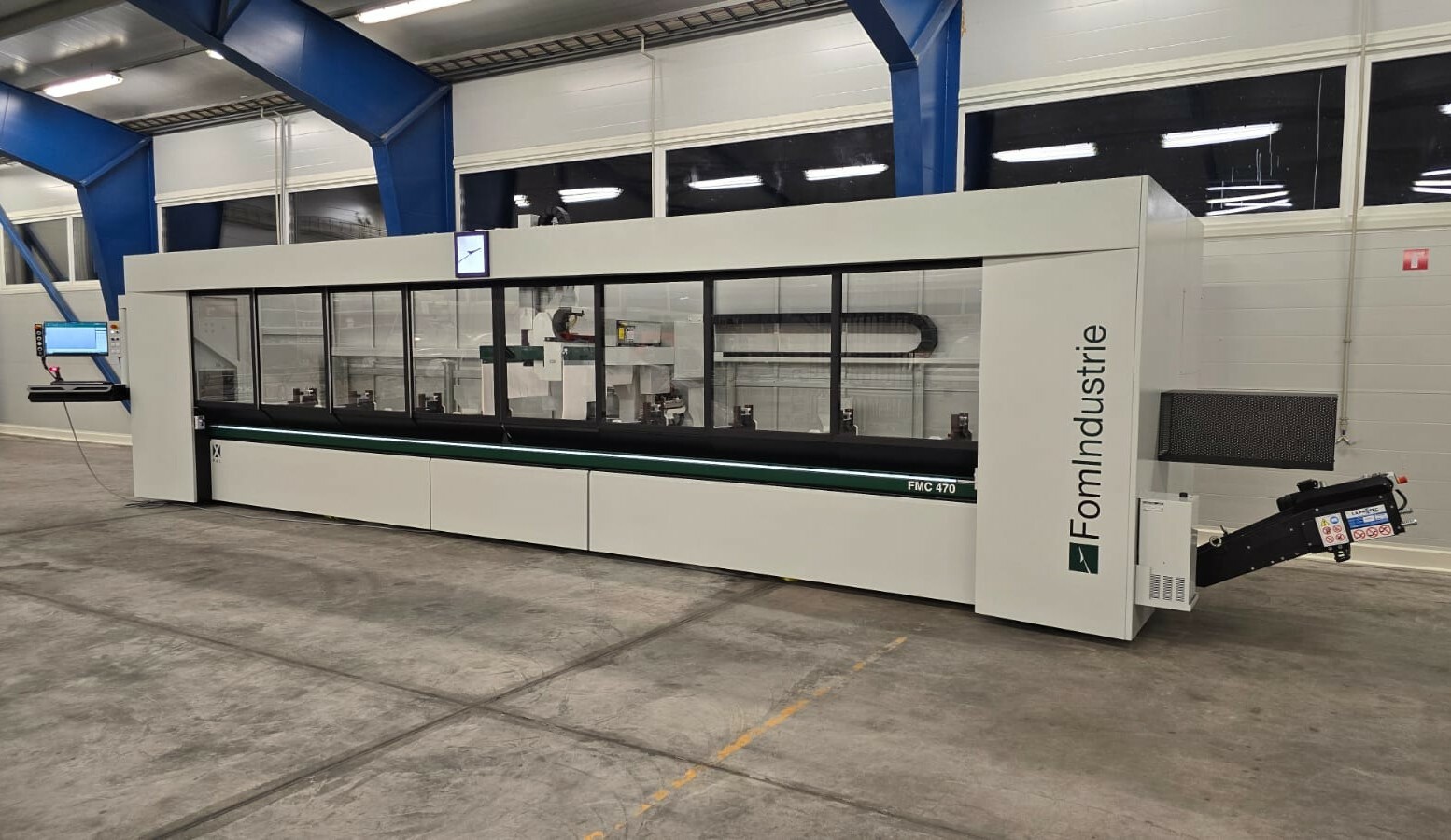

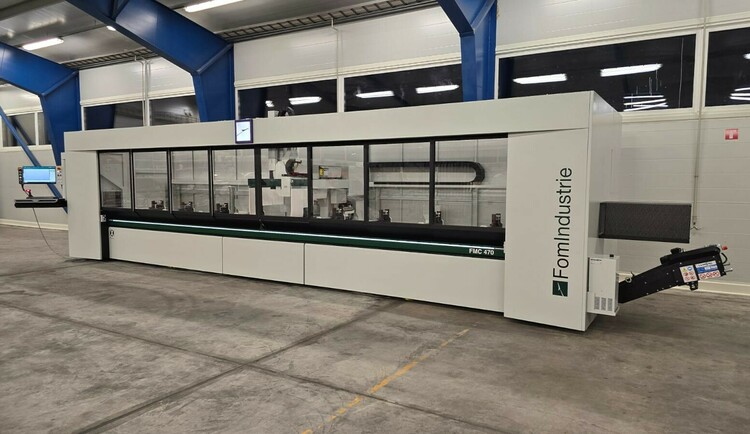

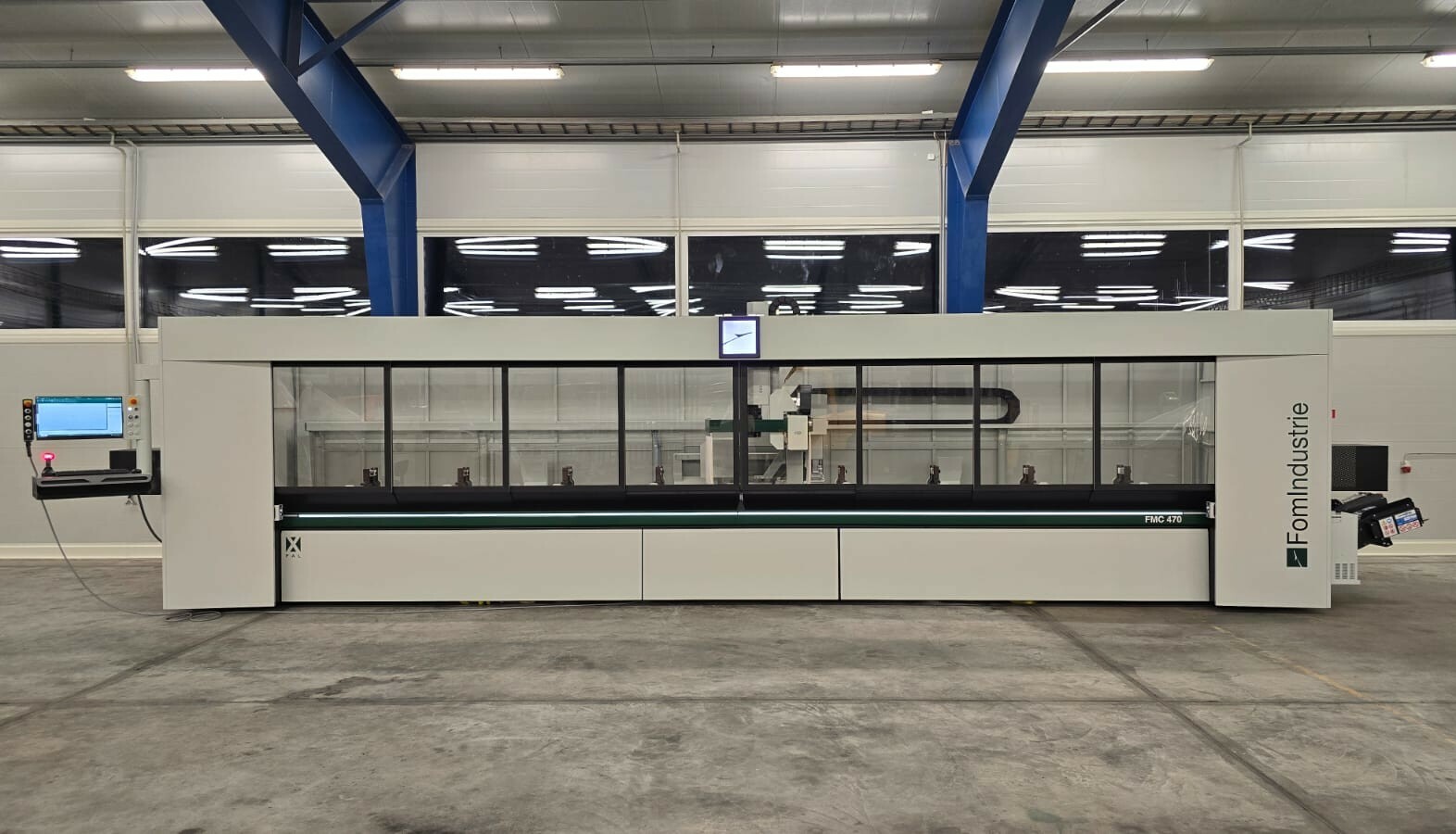

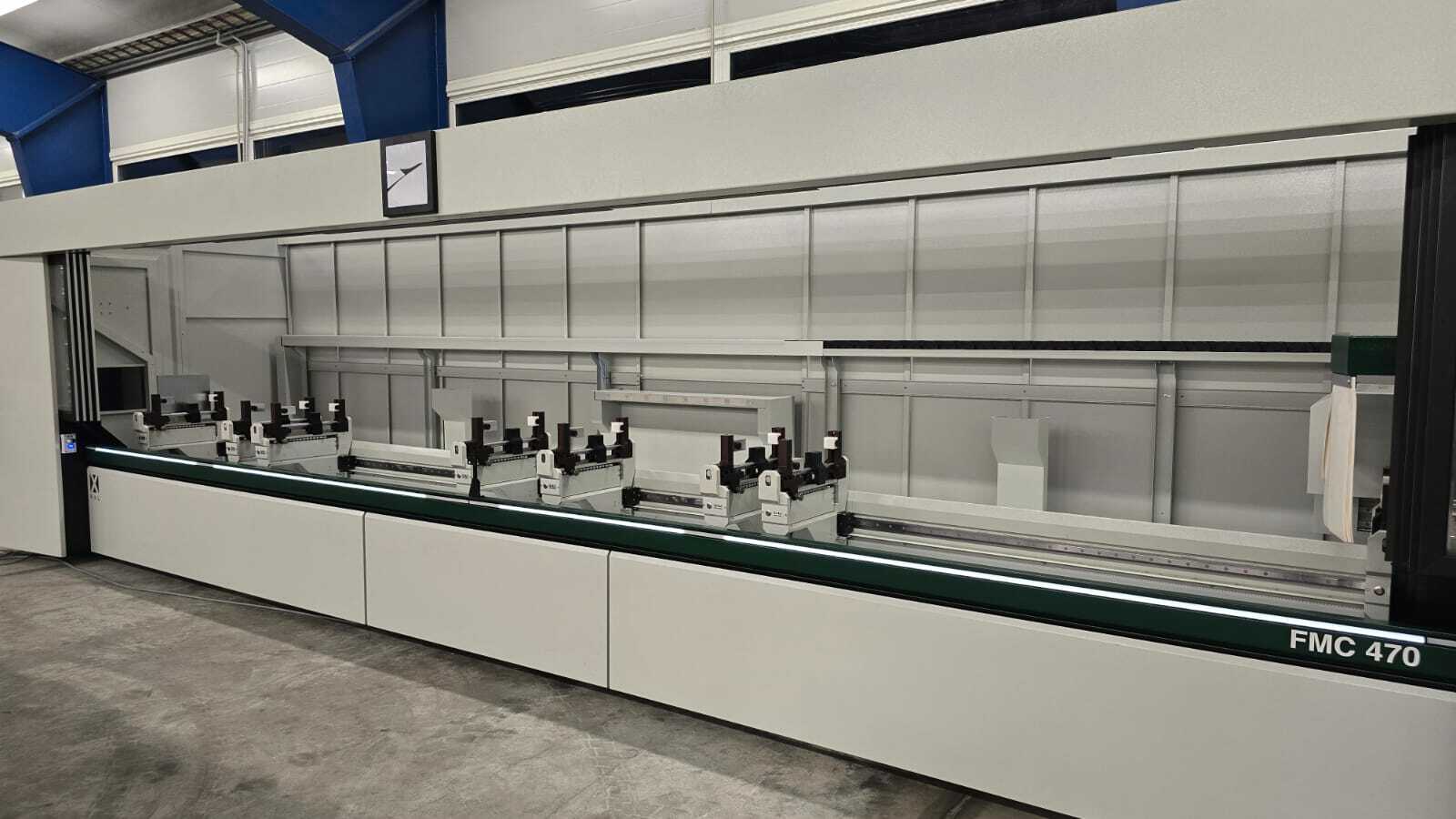

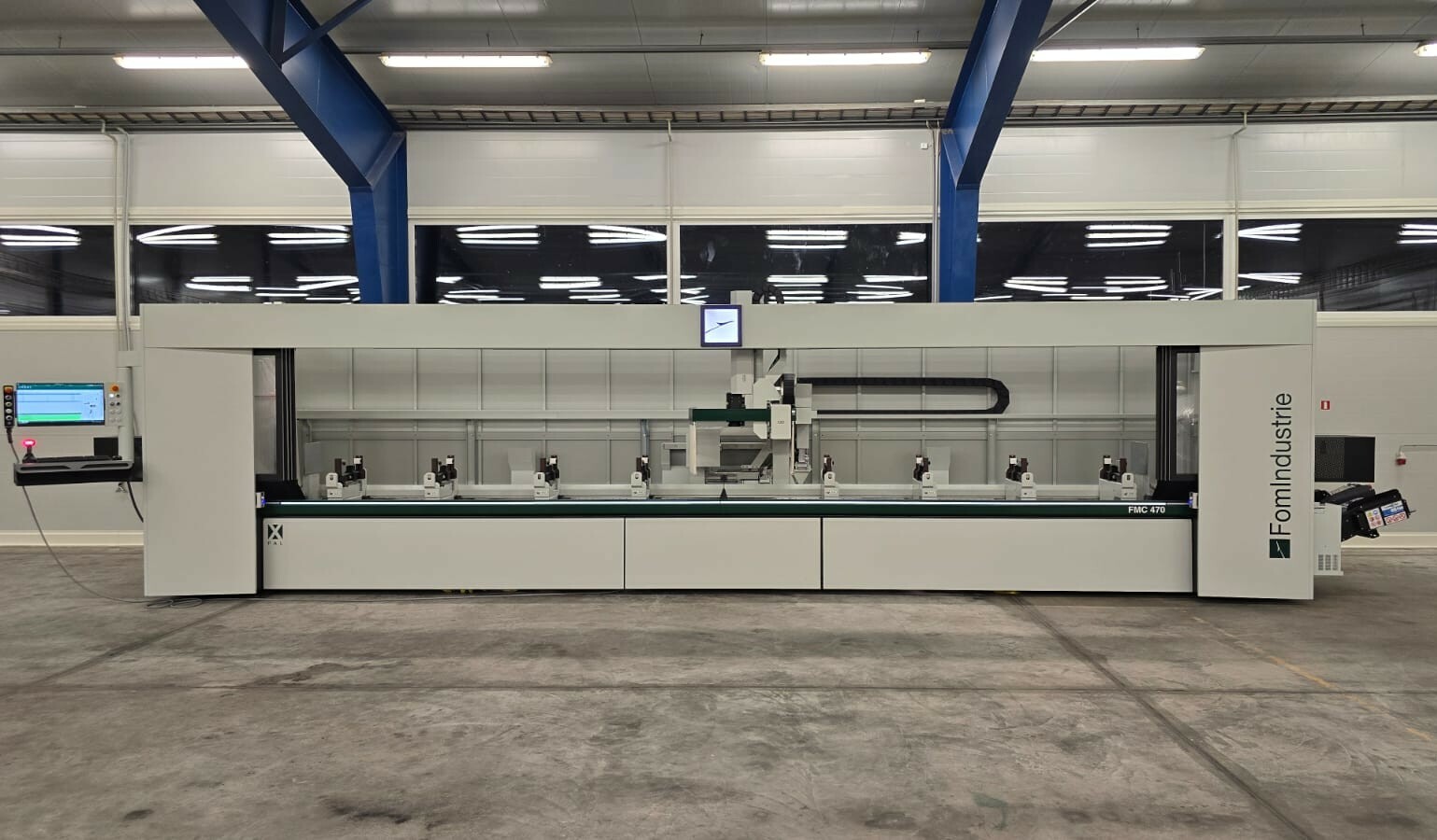

XX100292 CNC Machining centre with 4 controlled axes FOM INDUSTRIE FMC 470
Machine in stock
Standard configuration:

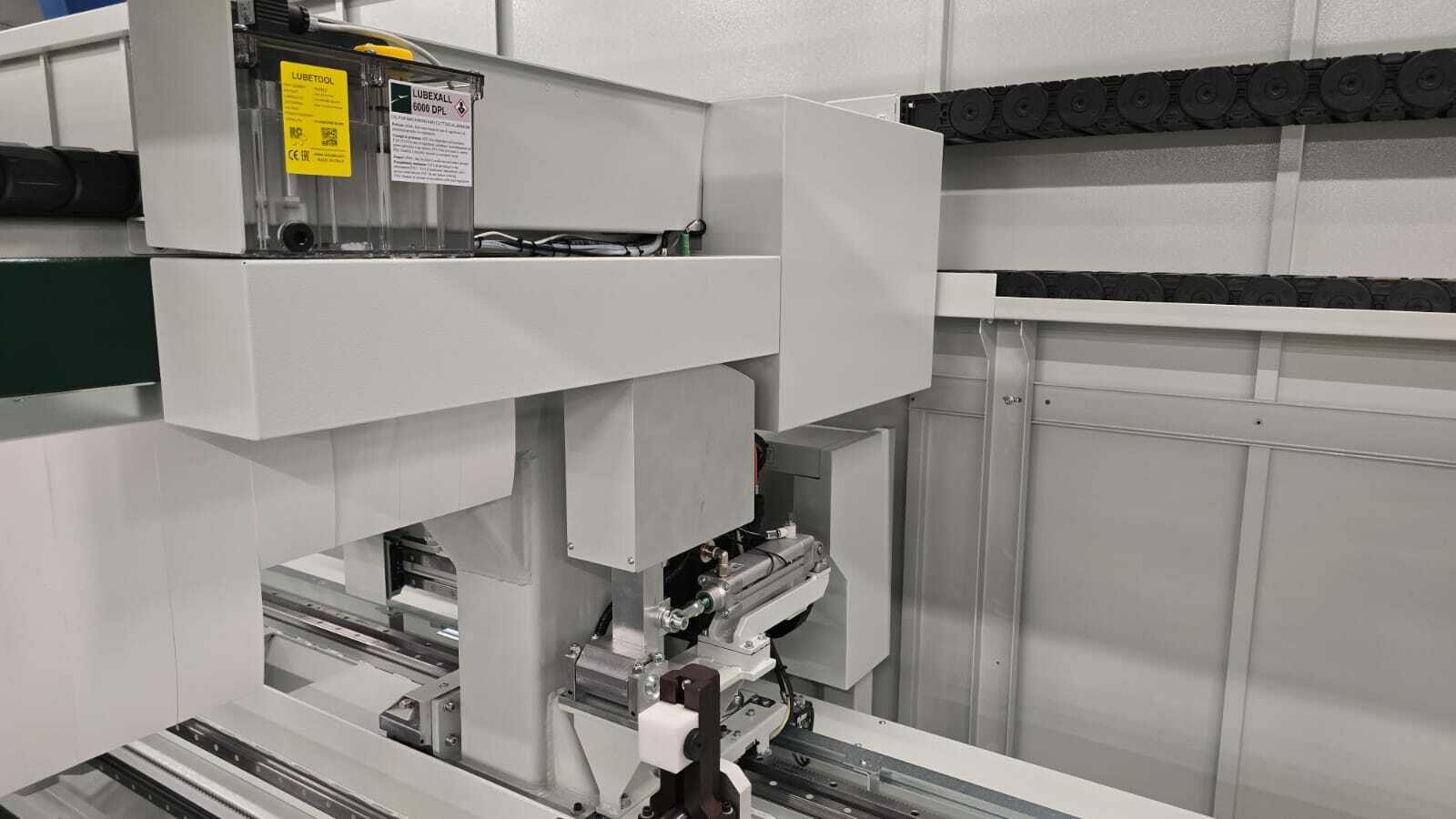

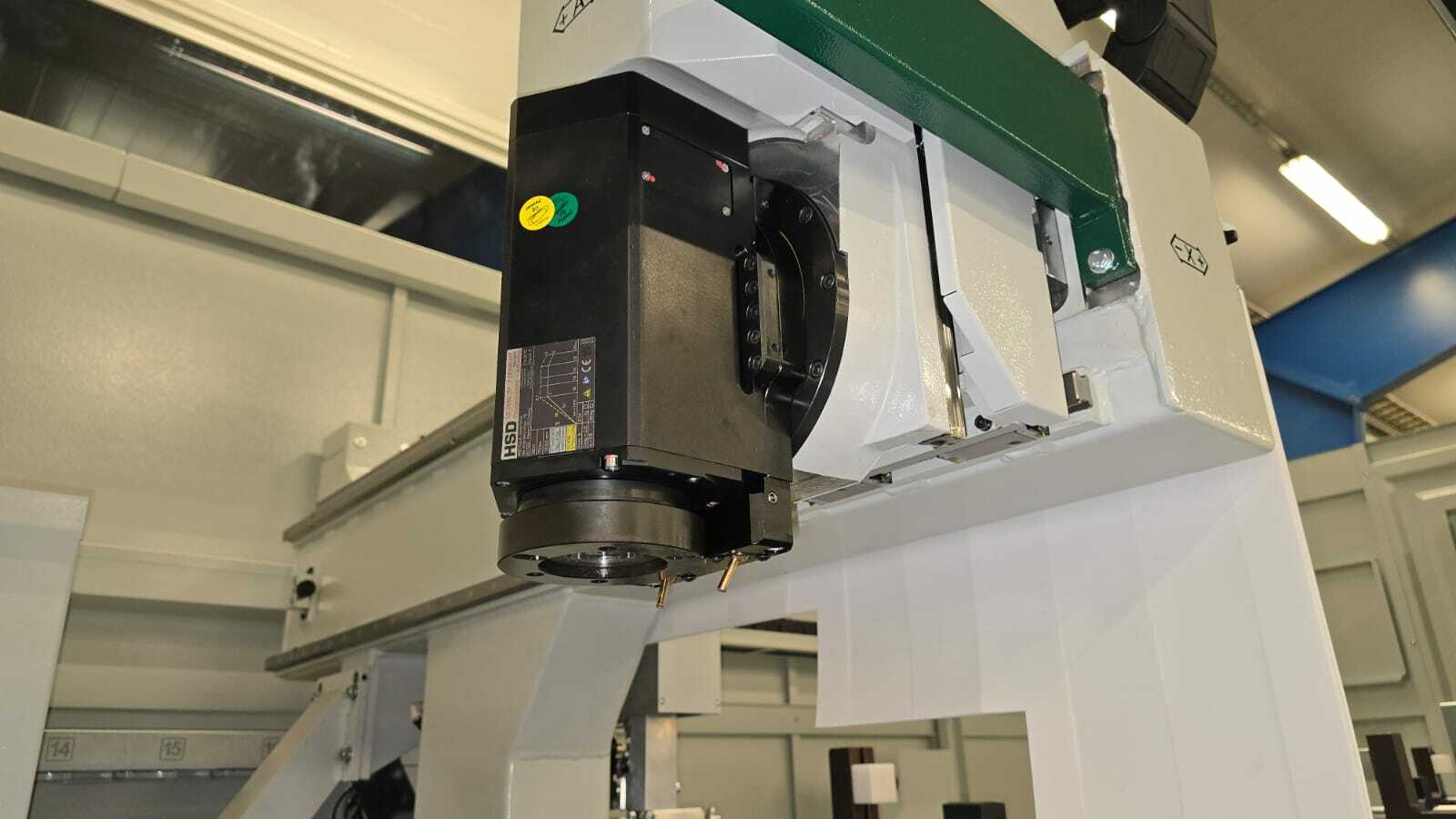

- Liquid-cooled electrospindle 7 kW, 20,000 rpm (HSK-F63)

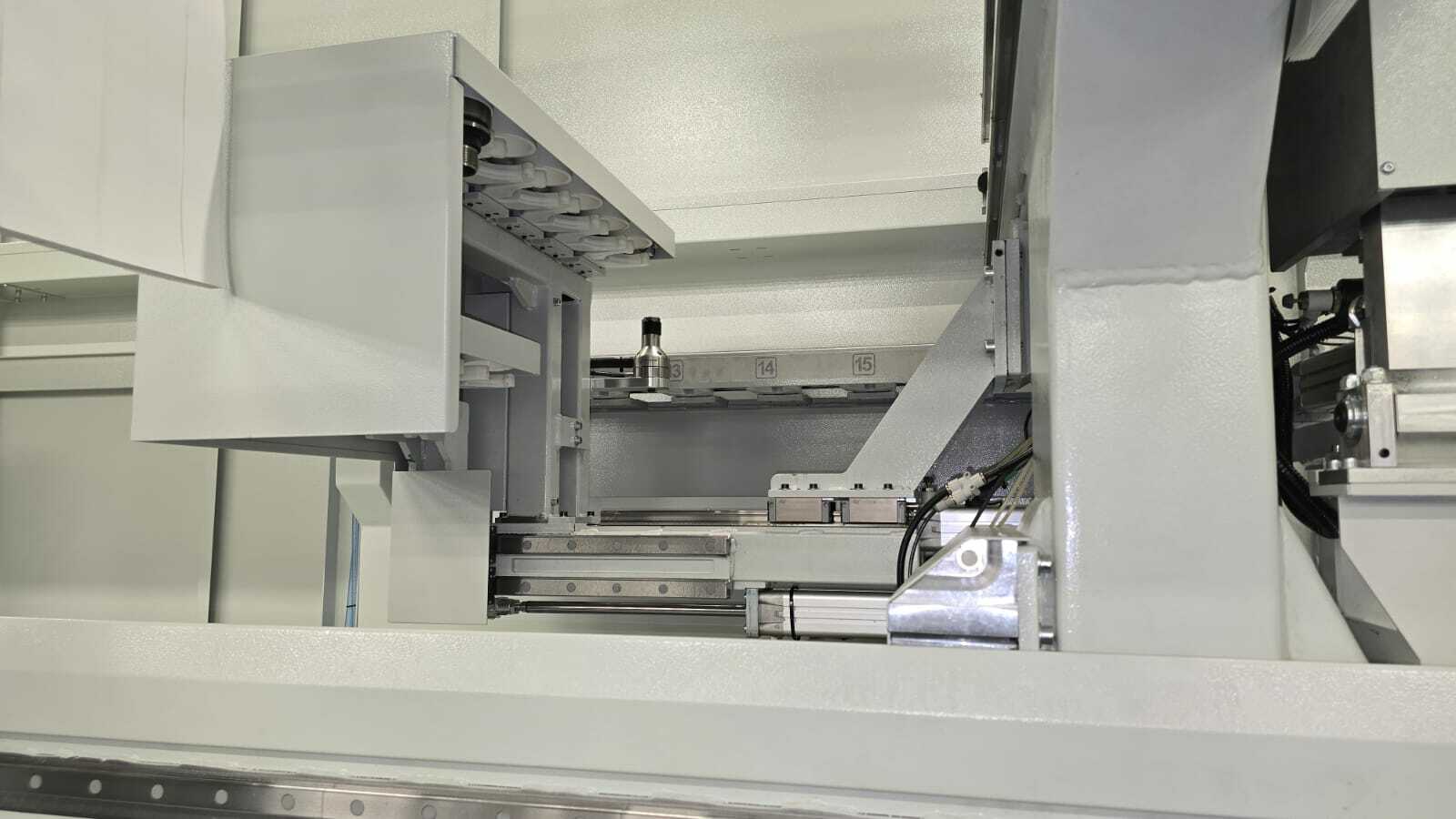

- 9 location tool magazine on head (HSK-F63)

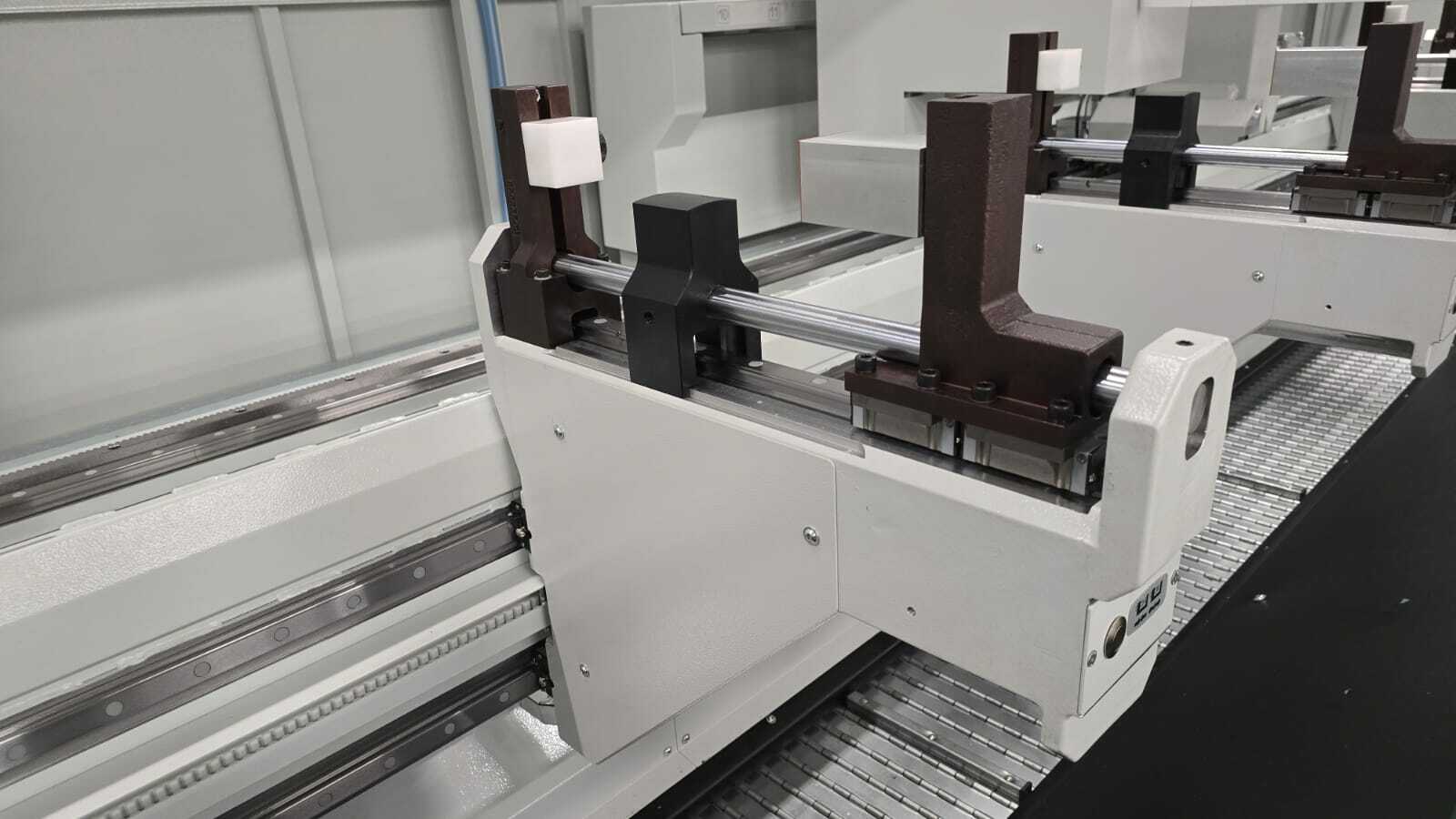

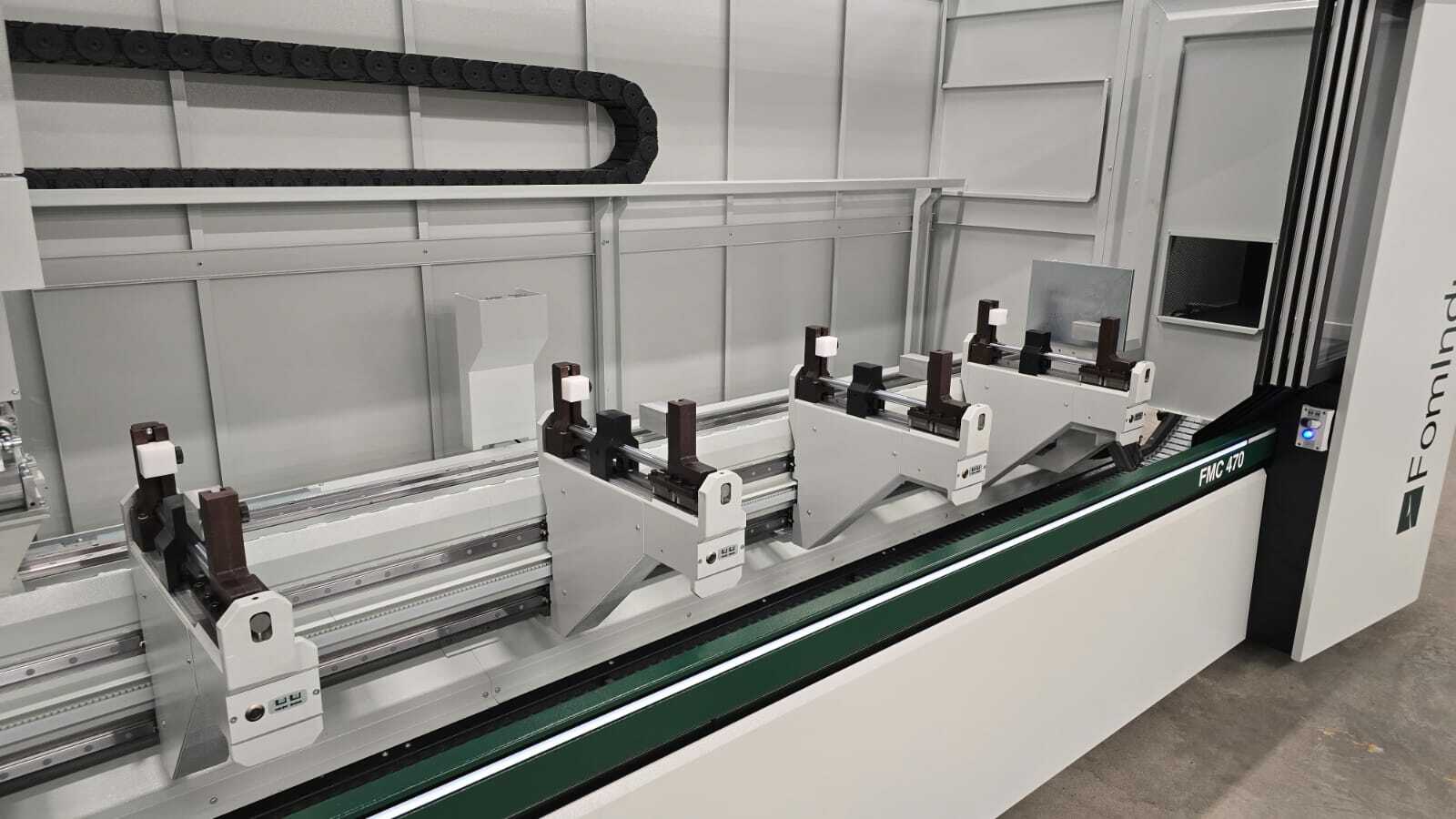

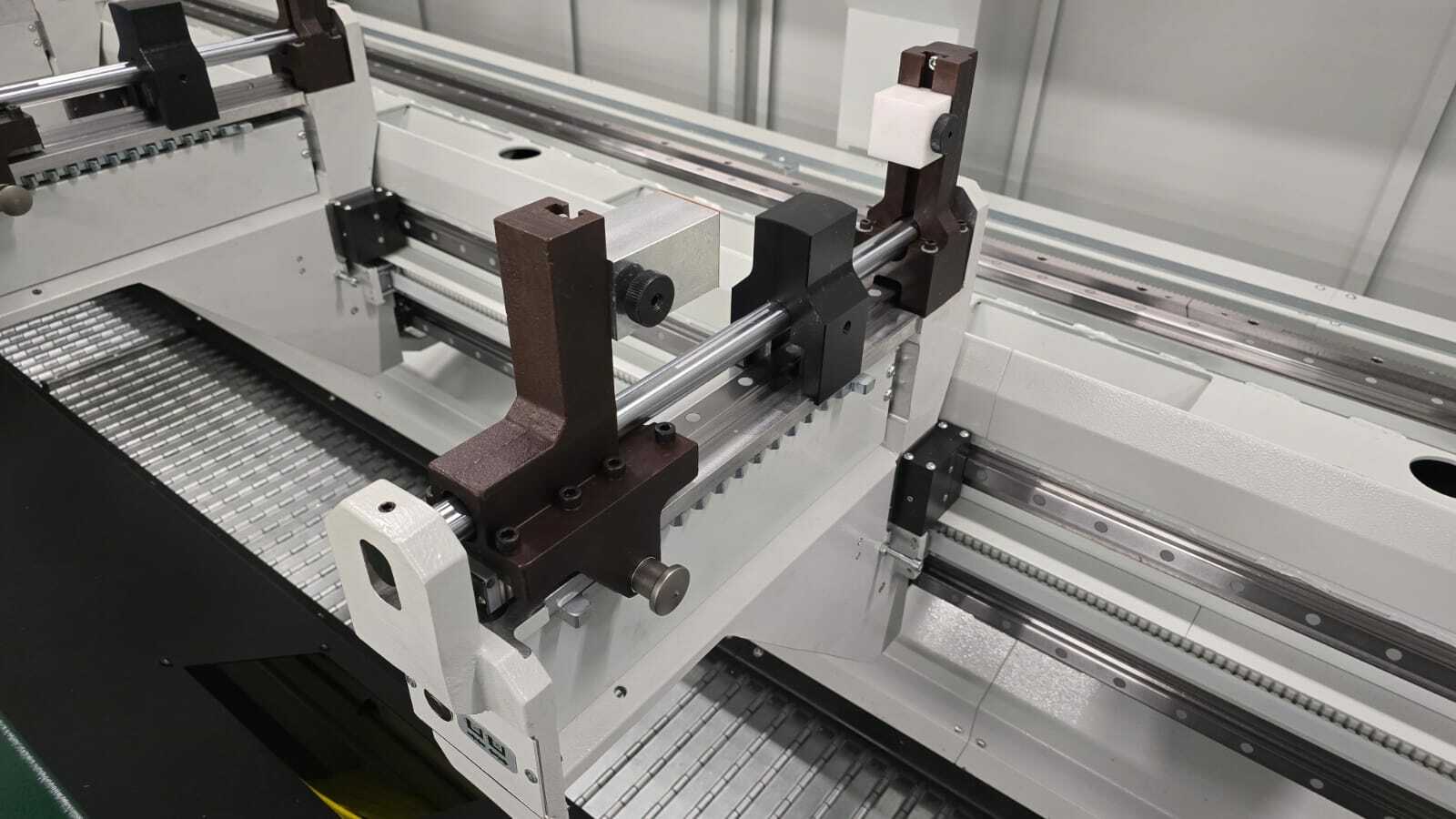

- No. 2 pairs of pneumatic vices with positioning through the travelling column
- No. 2 pairs of low profile jaws for clamping wide profiles
- Left pneumatic reference stop
- Minimum quantity lubrication (MQL) with pure oil

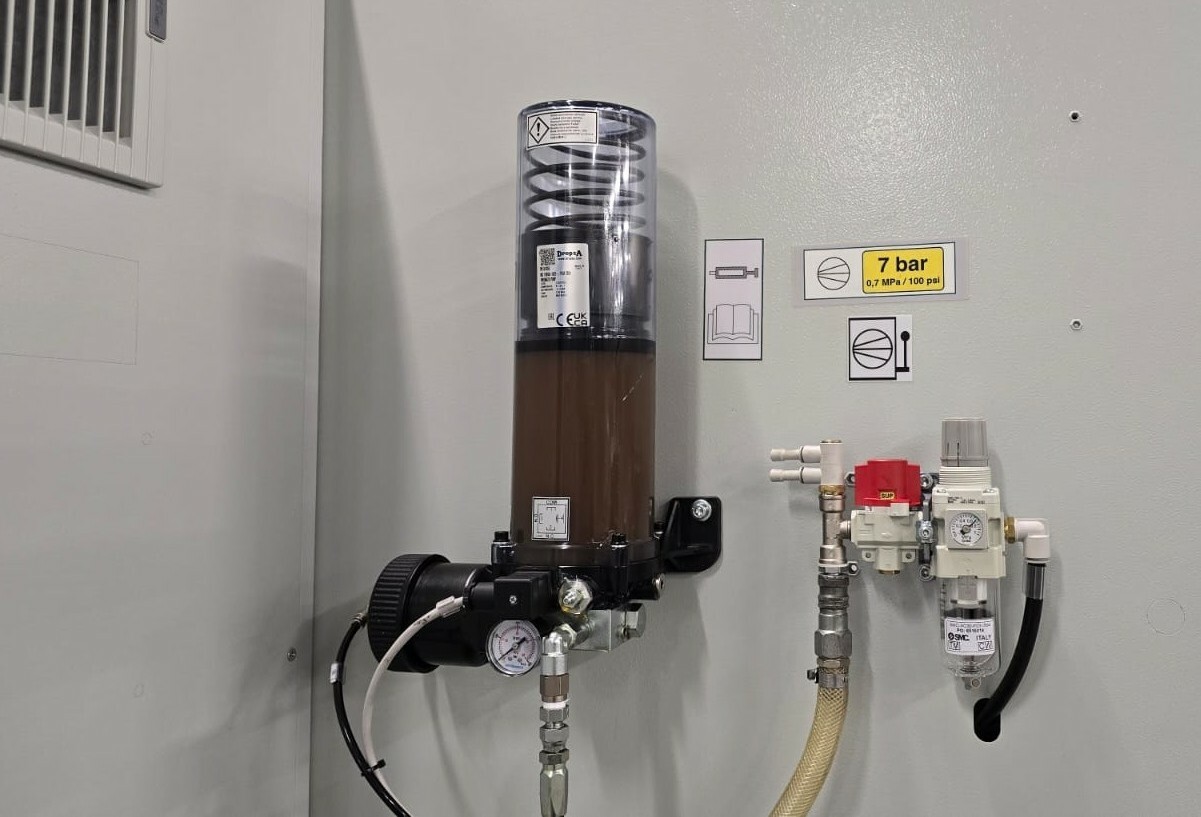

- Central automatic greasing system and device for manual greasing
- Chip and waste collection tank in base

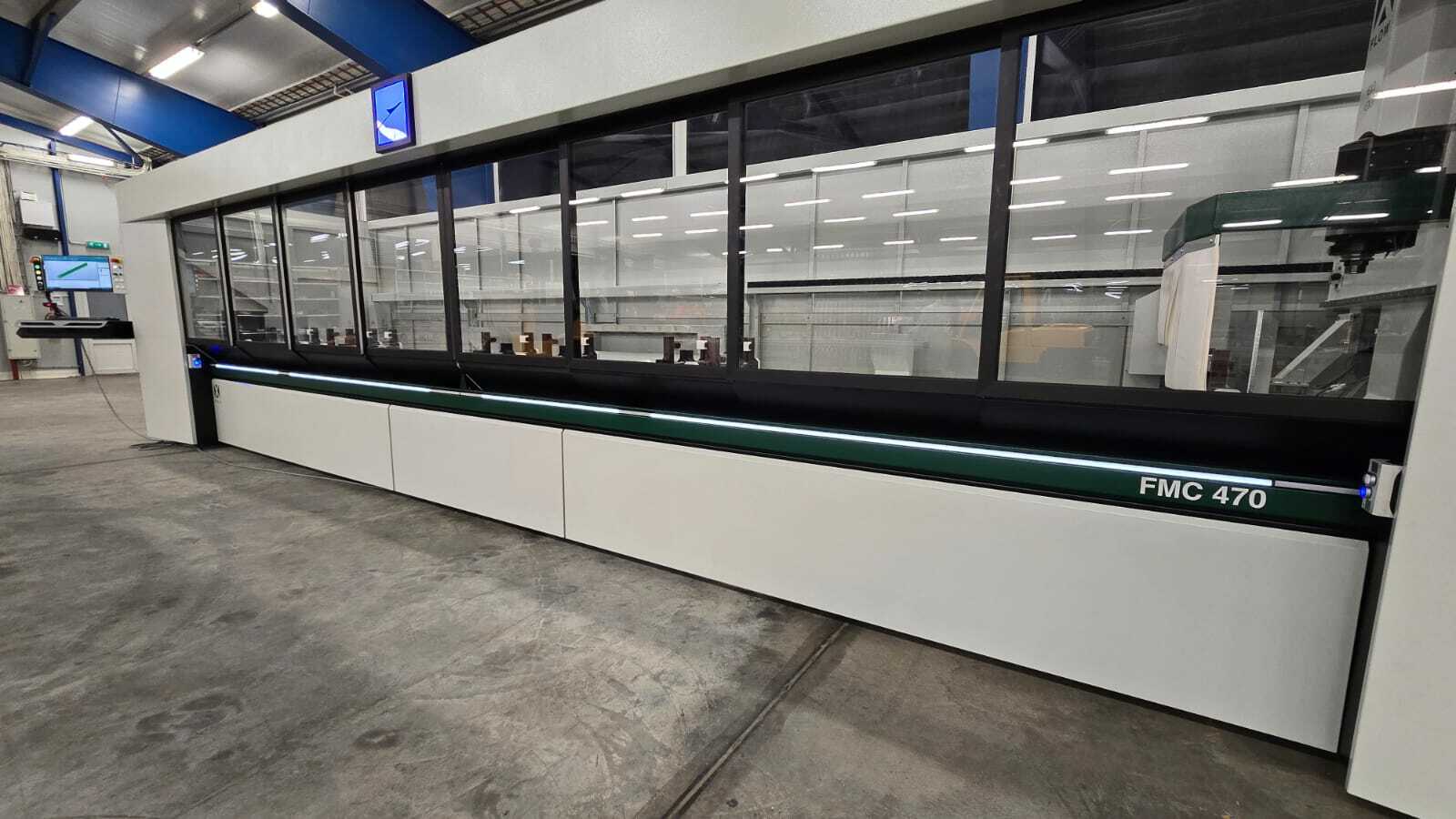

- Perimeter guard system with automatically opening, front retractable doors
- X FLOW (automatic orientation of lubricant nozzles)
- Control: POWER-D

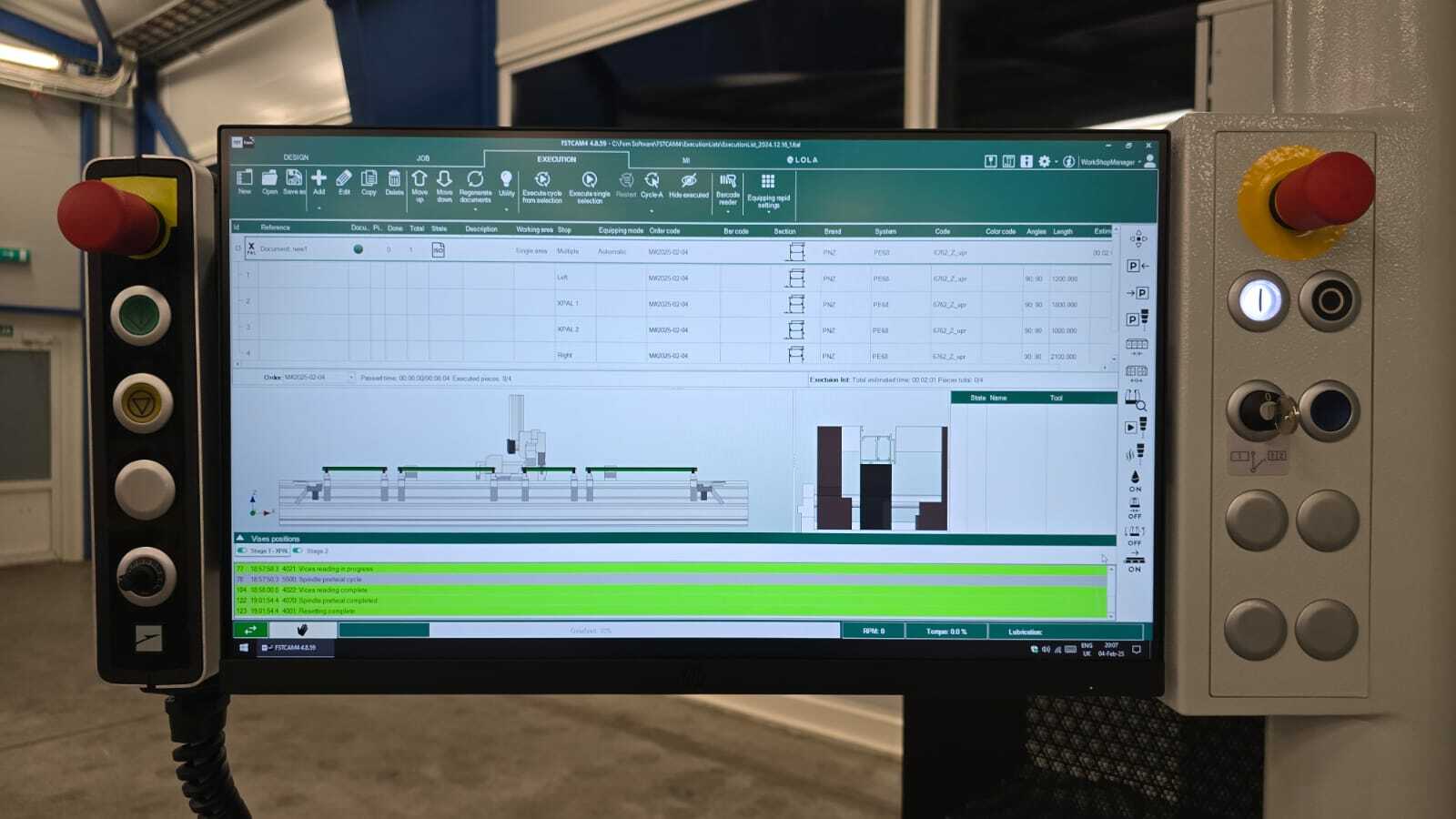

- Movable control console
- 24” display

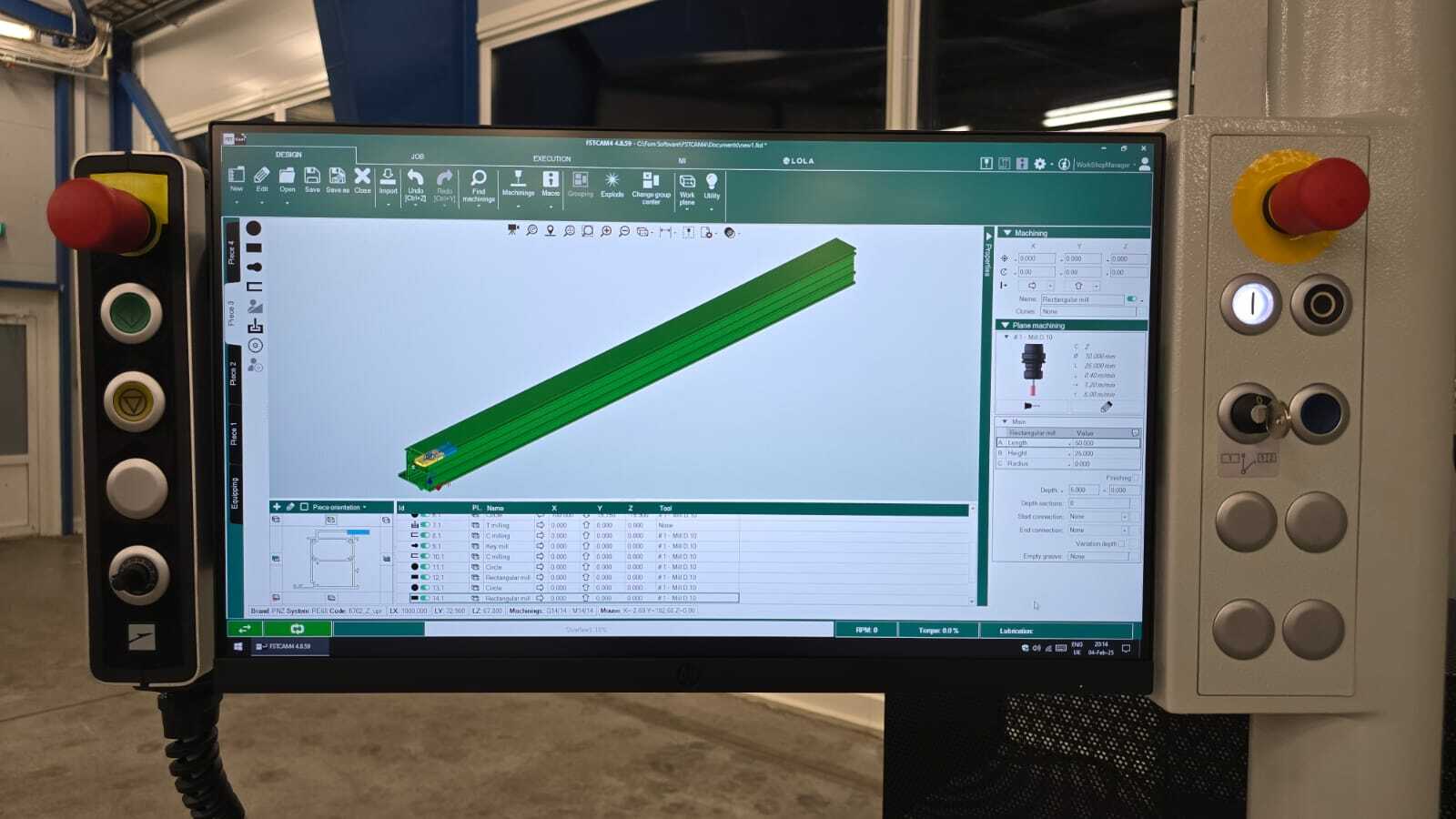

- FST CAM 4 program
Optional equipment installed on the machine:
- PR202941 Fixed tool magazine for 8 positions in the center on the machine base
- PR202962 Device for checking the integrity and measuring tool length
- ZR204058 Pendulum mode with multiple workpieces (2 work areas, 4 workpieces) and processing of non-standard lengths with X-PAL:
• Two pairs of additional vices with independent positioning
• Transformation of std vices into vices with independent positioning
• LED bar

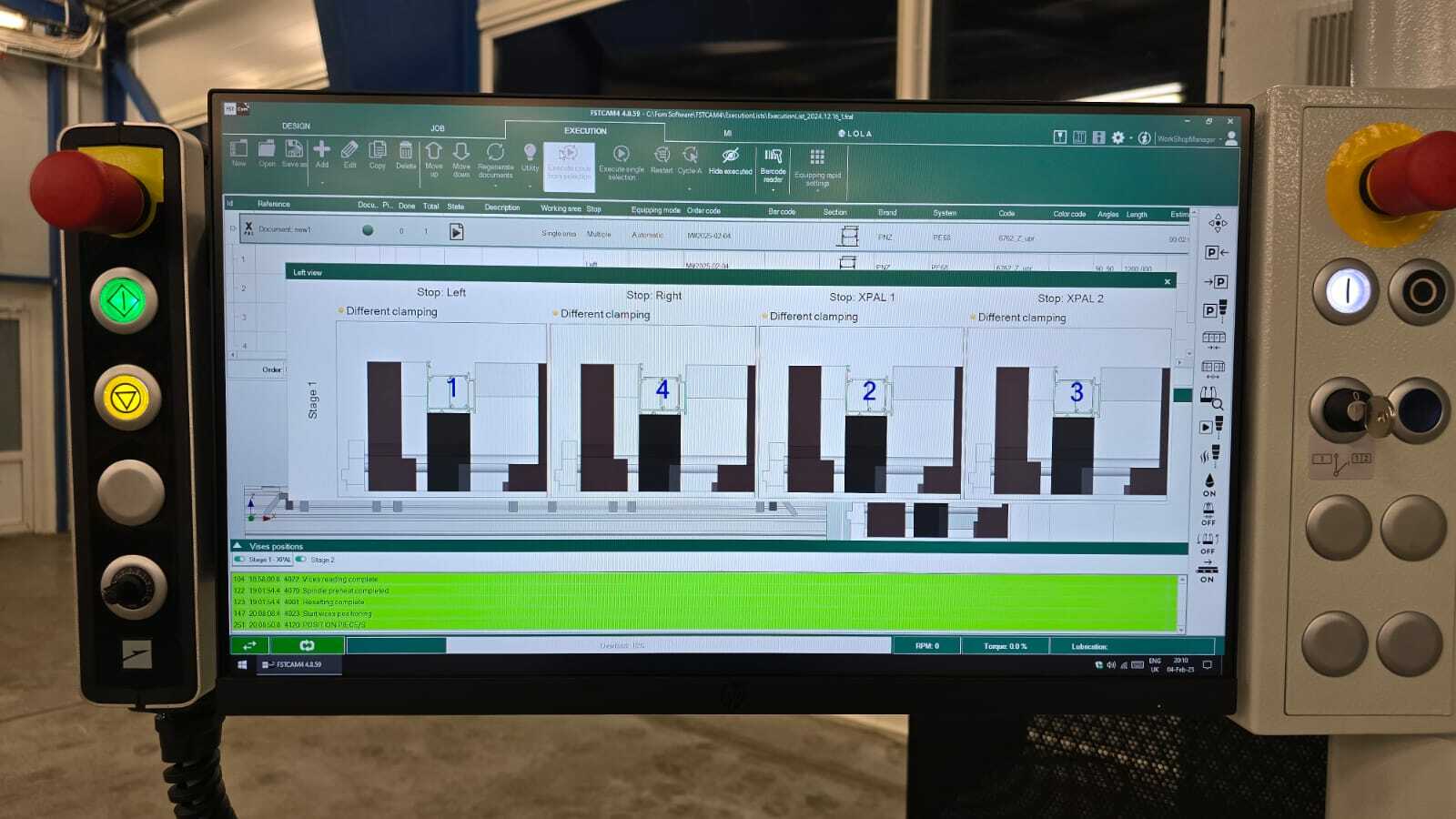

• Profile positioning software
• Software for viewing the progress of the processing cycle
• Device for measuring profile length
• Second X-FLOW
• Right pneumatic reference stop
• Pendulum control software
• Safety devices for pendulum processing
• Tunnel for oversized profile machining
• Software to manage oversized machining operations
• ''Clock'' time calculation module program
- PR202971 Data import software in accordance to FOM protocol and wireless optical bar code and QR code reader
- ZP715010 Module for rigid tapping and chase tapping

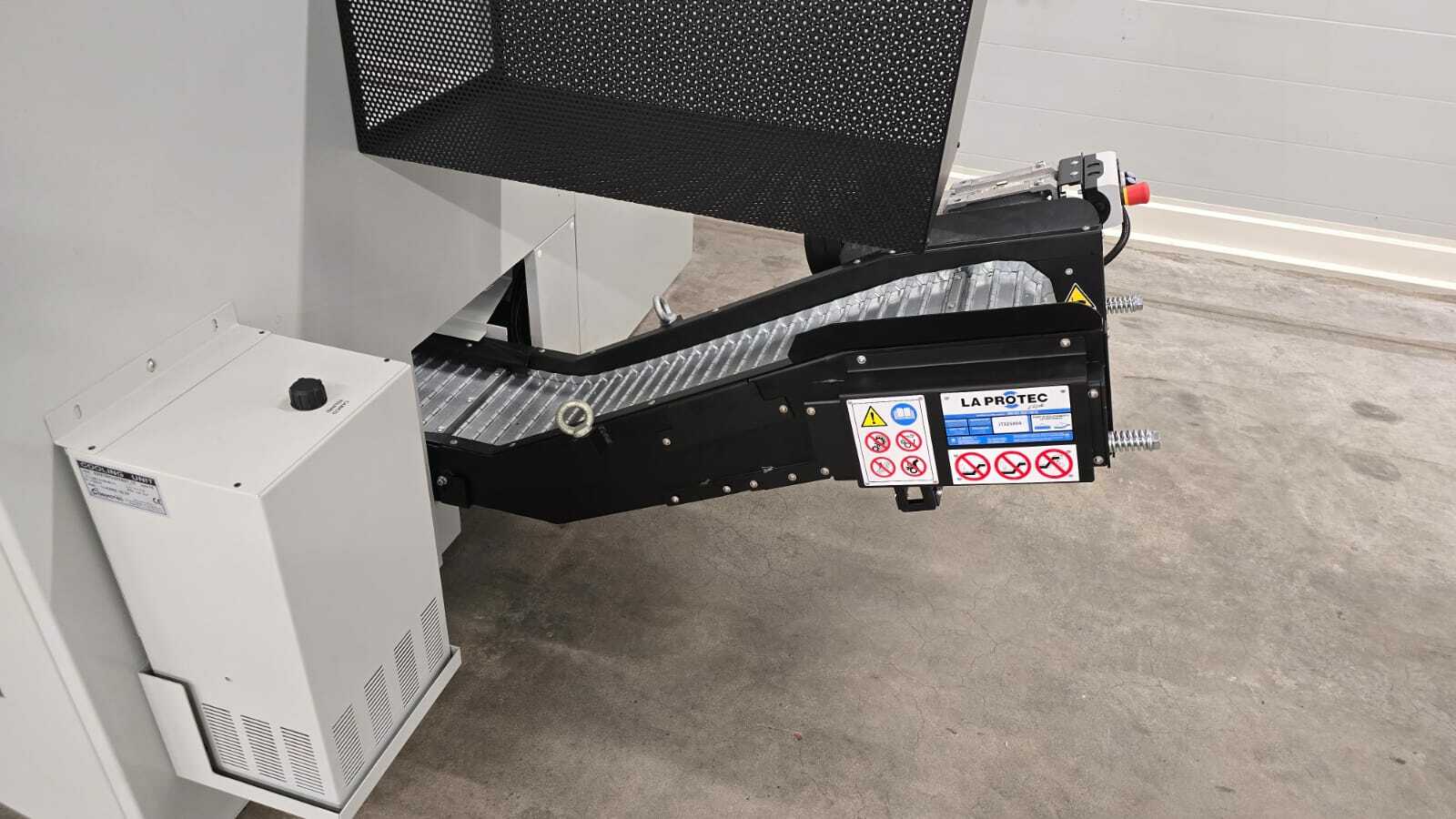

- PR202957 Hinged belt conveyor with ramp
- PR203389 Rear chip collection tank
- PR202975 Tool set A3/HSK F63
- PR202967 Angle head with vertical disc Ø 230 mm
- PR202968 Cone with horizontal disc Ø 250 mm
- PR204497 Holder HSKF63 with cutter Ø 200 x 6 mm
- PR203072 Software adjustment of the vice pressure 3,5 - 7 bar
- ZP714611 License for the office version of FST CAM 4
