SIKA PLUS M

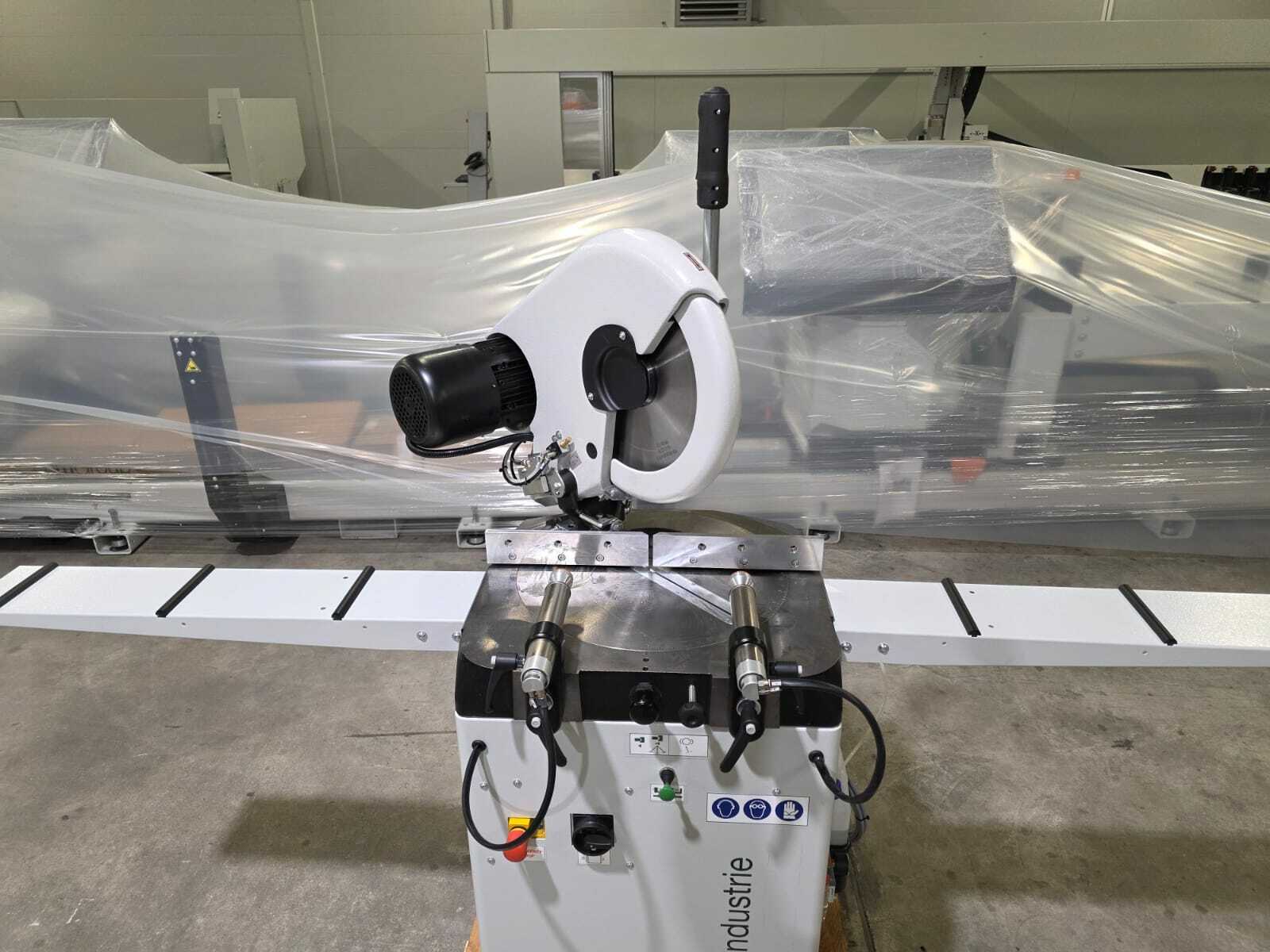

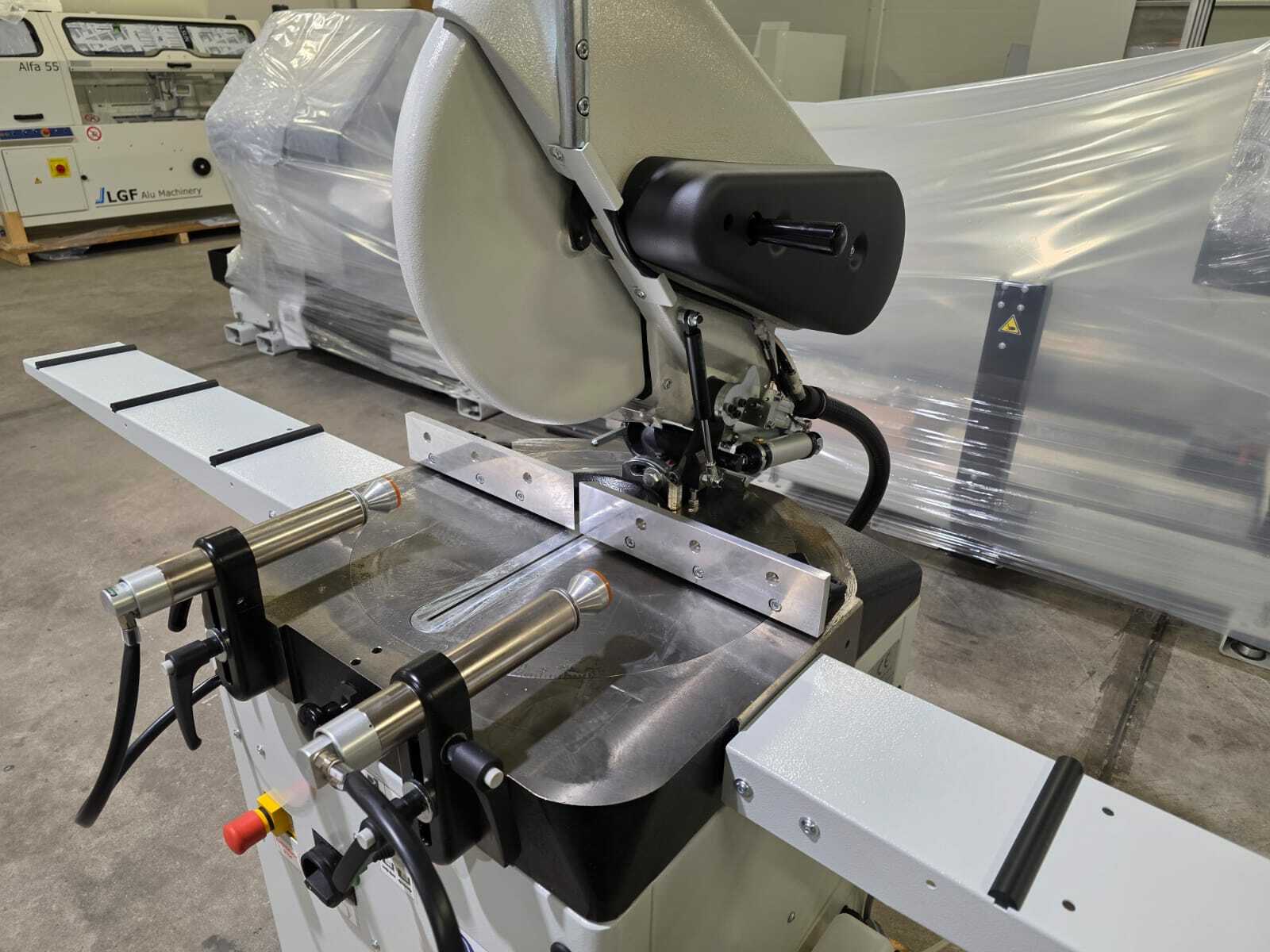

XZ100228 Single head sawing machine Ø 400 mm for aluminium and PVC with manual blade down-feed and pneumatic vices FOM INDUSTIRE SIKA PLUS M
Machine in stock
Standard configuration:
- Aluminium and PVC cutting machine with CE certification
- Tungsten carbide saw blade Ø 400 mm
- Manual blade lowering (with lever) with pneumatic servo control to reduce operator stress
- Side support plates on both sides
- Blade motor power 2.2 kW - 2850 rpm
- Self-braking motor with blade stop in less than 10 sec
- Cutting angle from 45°Lh to 45°Rh on vertical axis and 45°Rh to 90° on horizontal axis
- Intermediate angles with mechanical stop
- Cylinder blocking involuntary head lowering
- Double working pressure servo-controlled in low pressure
- 2 pneumatic horizontal vices
- 1 safety servo-valve for each pneumatic horizontal vice
- Conical anti-crushing buffers
- Worktable and turntable structure in stabilized cast iron
- Motor transmission by belt
- Saw blade holding spindle Ø 32 mm
- Spray mist blade lubrication system
- Integral blade guard in rest position
- Set up for the extraction of chips and fumes
