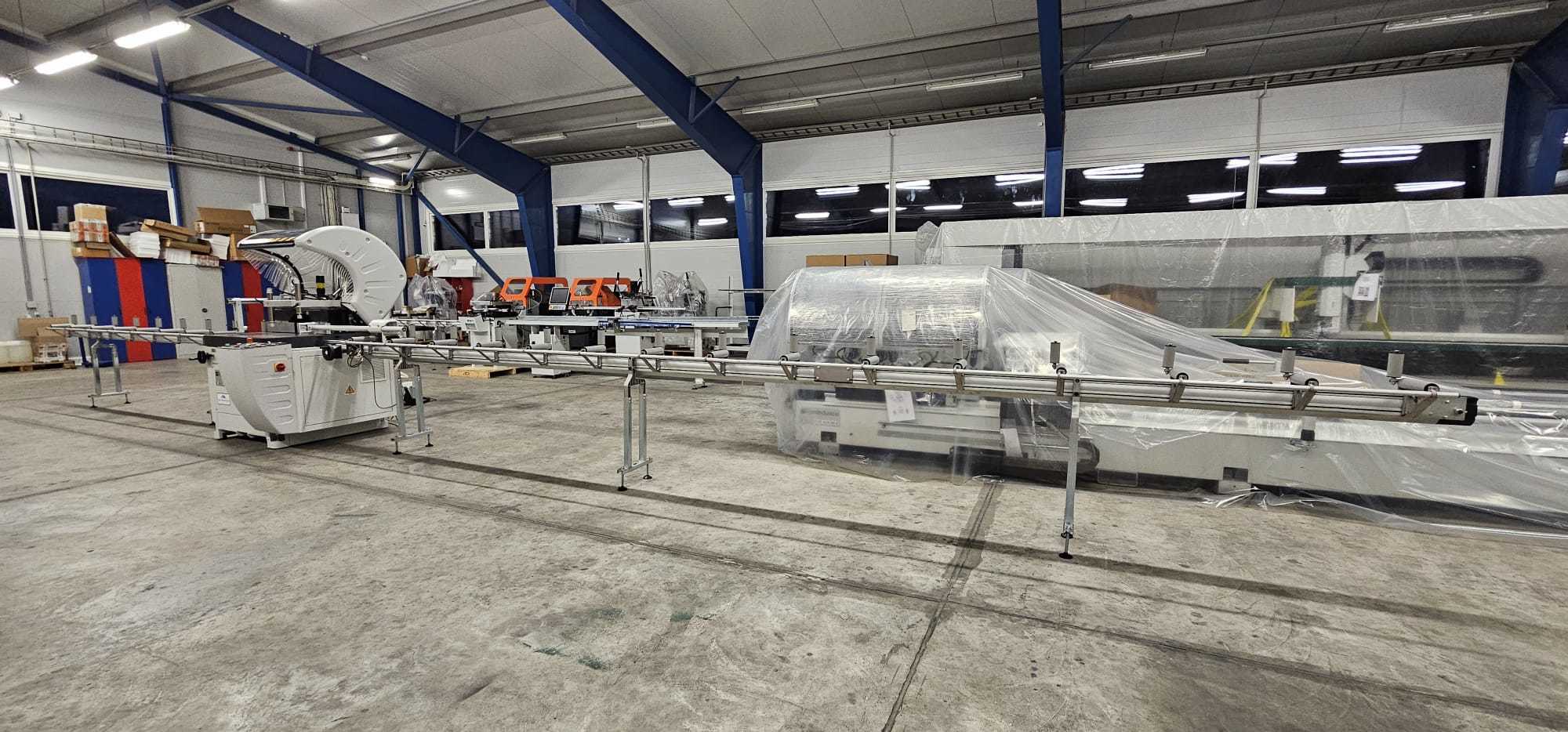

PANDA 550 with ASSOMAK VS 7m, 2021

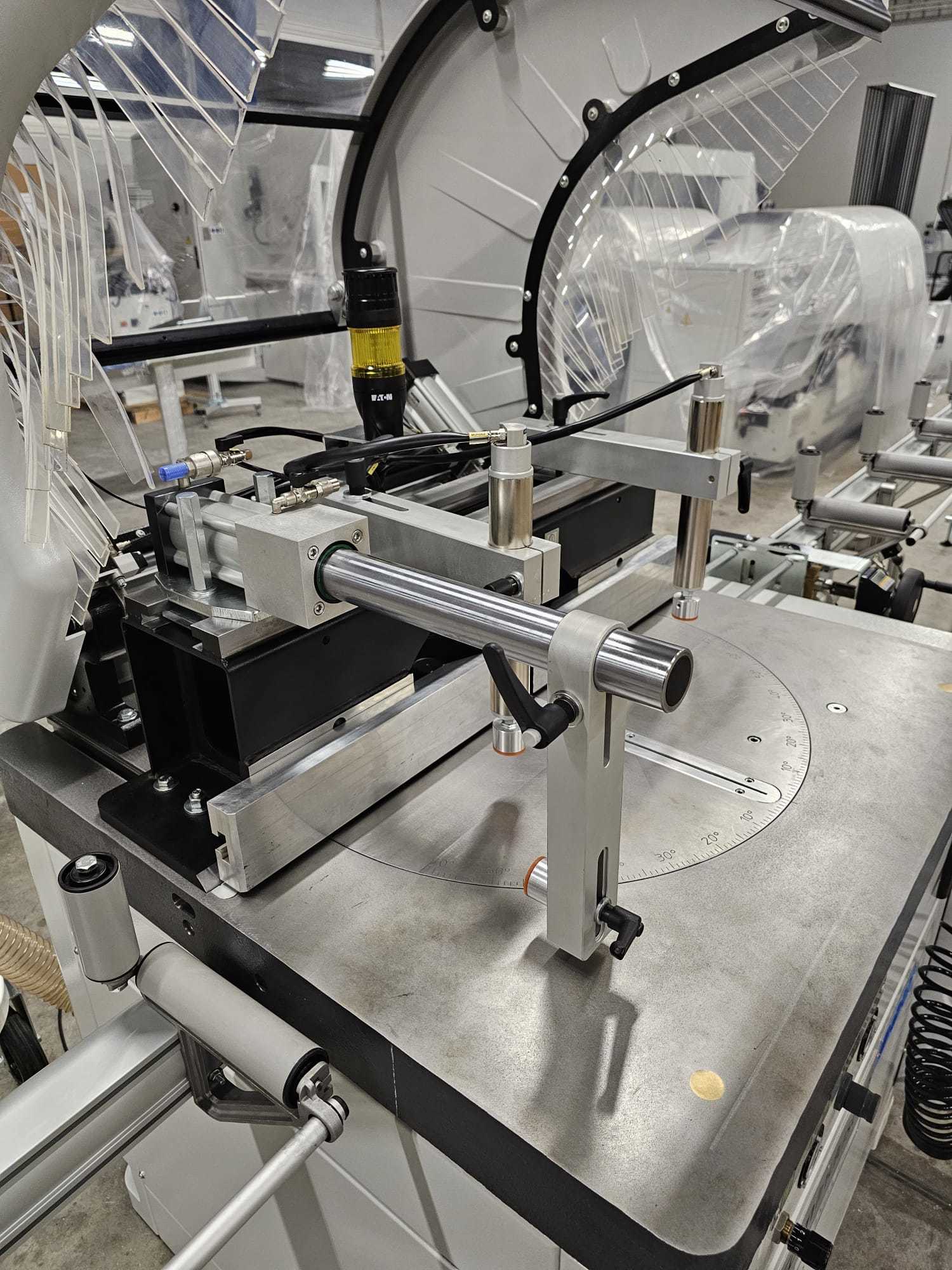

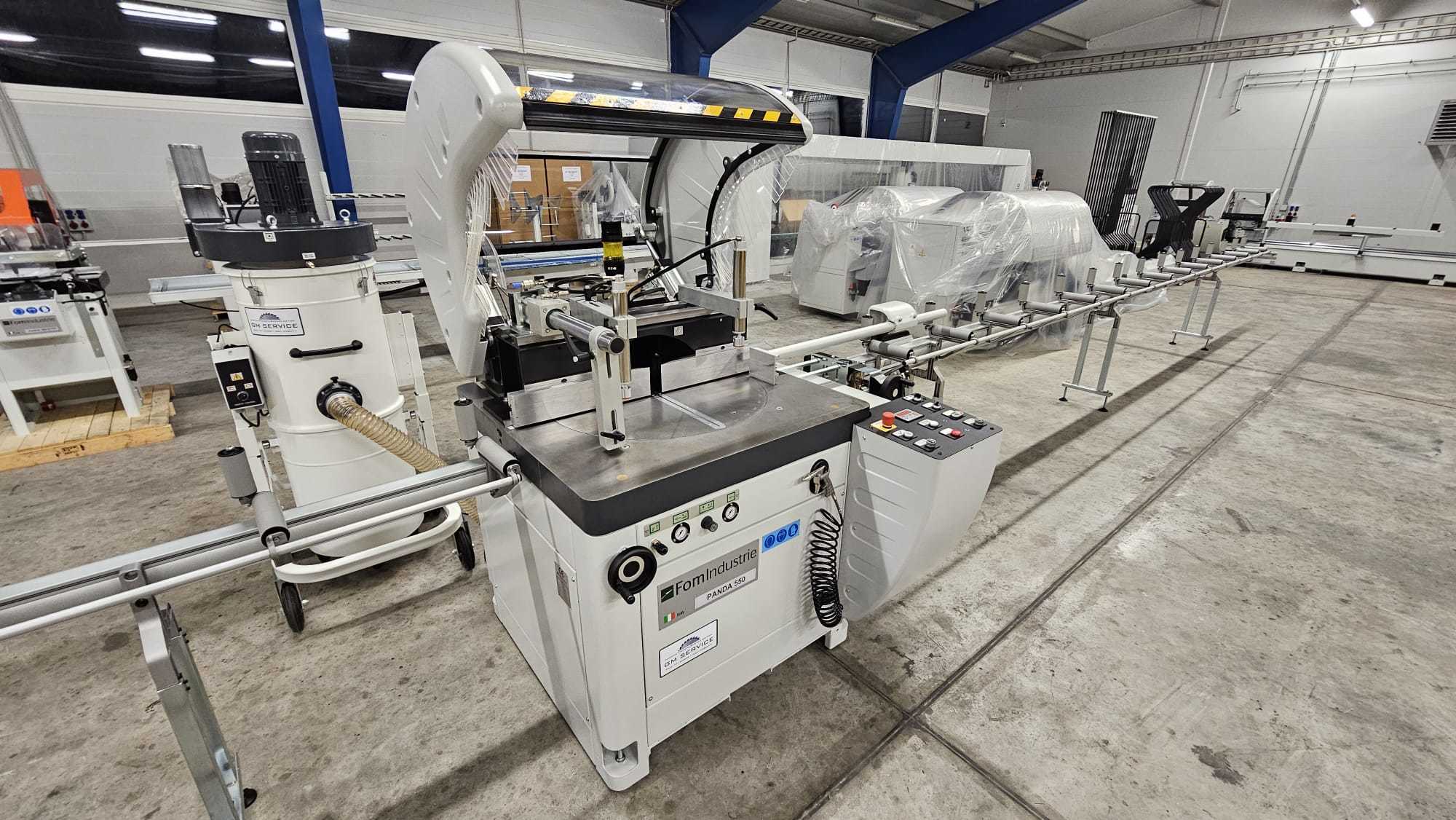

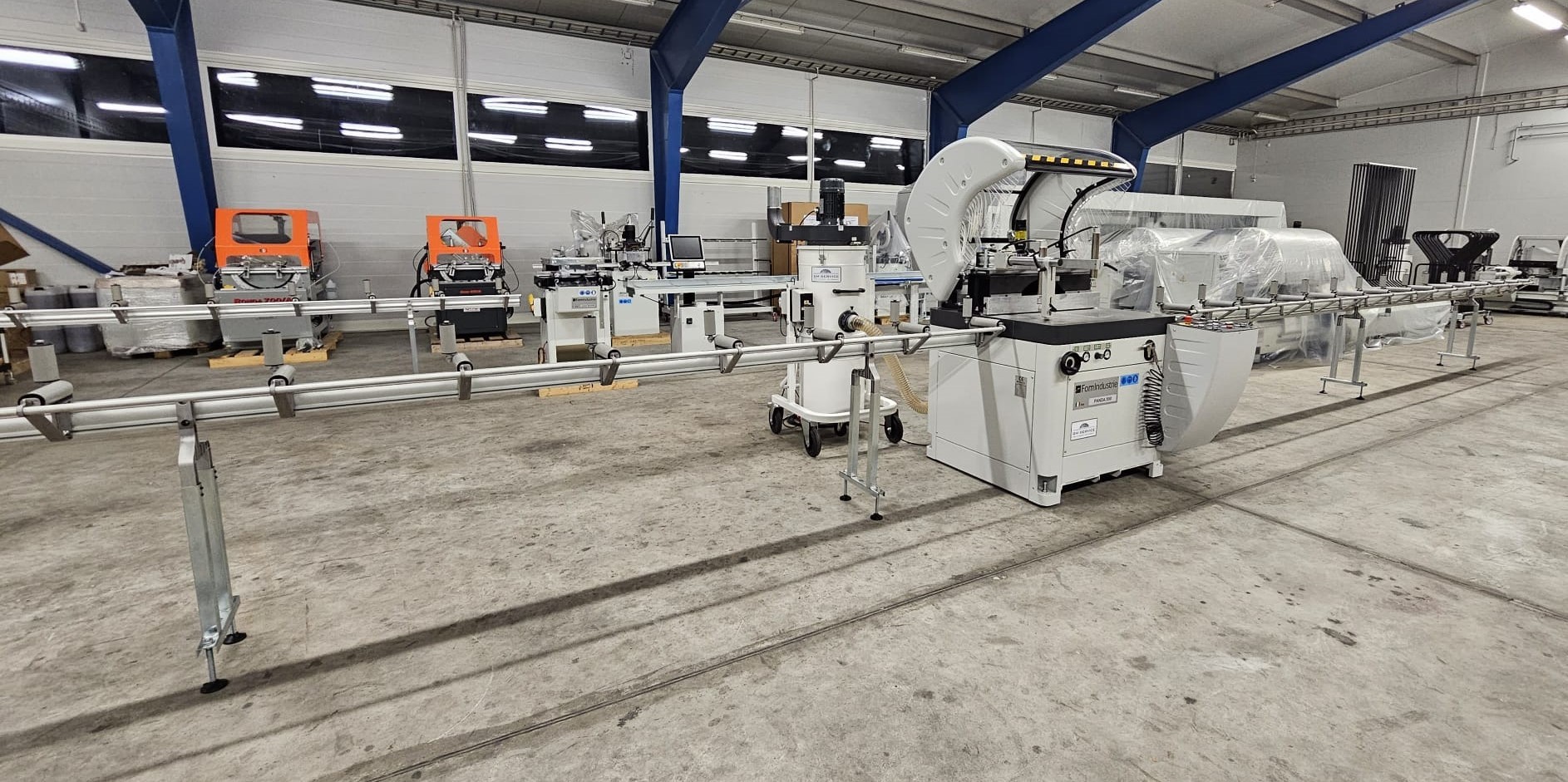

Single head sawing machine with up-feed blade Ø 550 mm and manual positionning of the vertical axis FOM INDUSTRIE PANDA 550 with measuring roller conveyor ASSOMAK VS 7m and inlet conveyor PORTER 4,2m

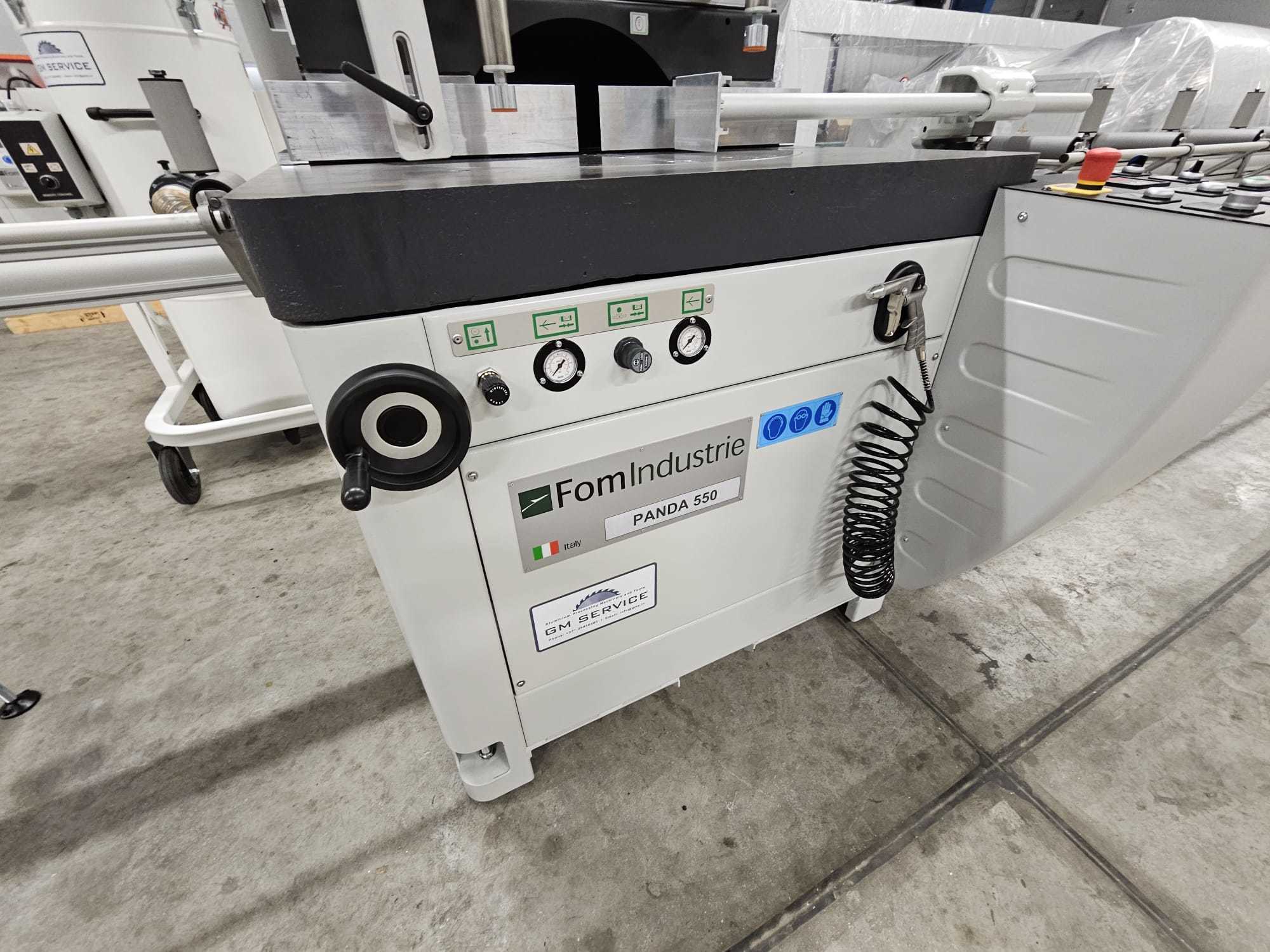

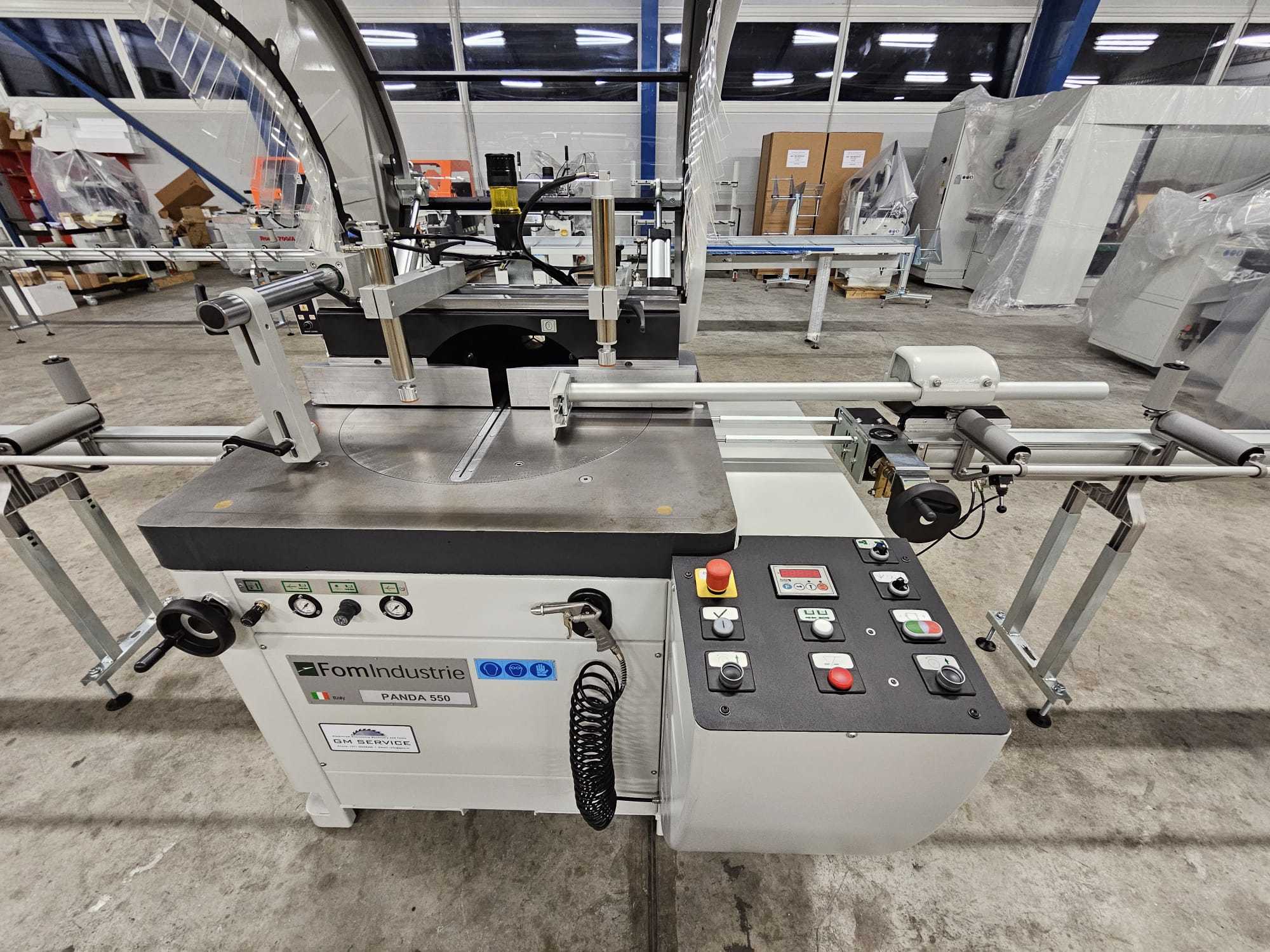

Standard configuration XZ-10493 PANDA 550:
- Ø550 mm tungsten carbide saw blade
- Grades digital display (manual rotation)
- Hydro pneumatic advance of the blade (adjustable blade exit speed quick return)

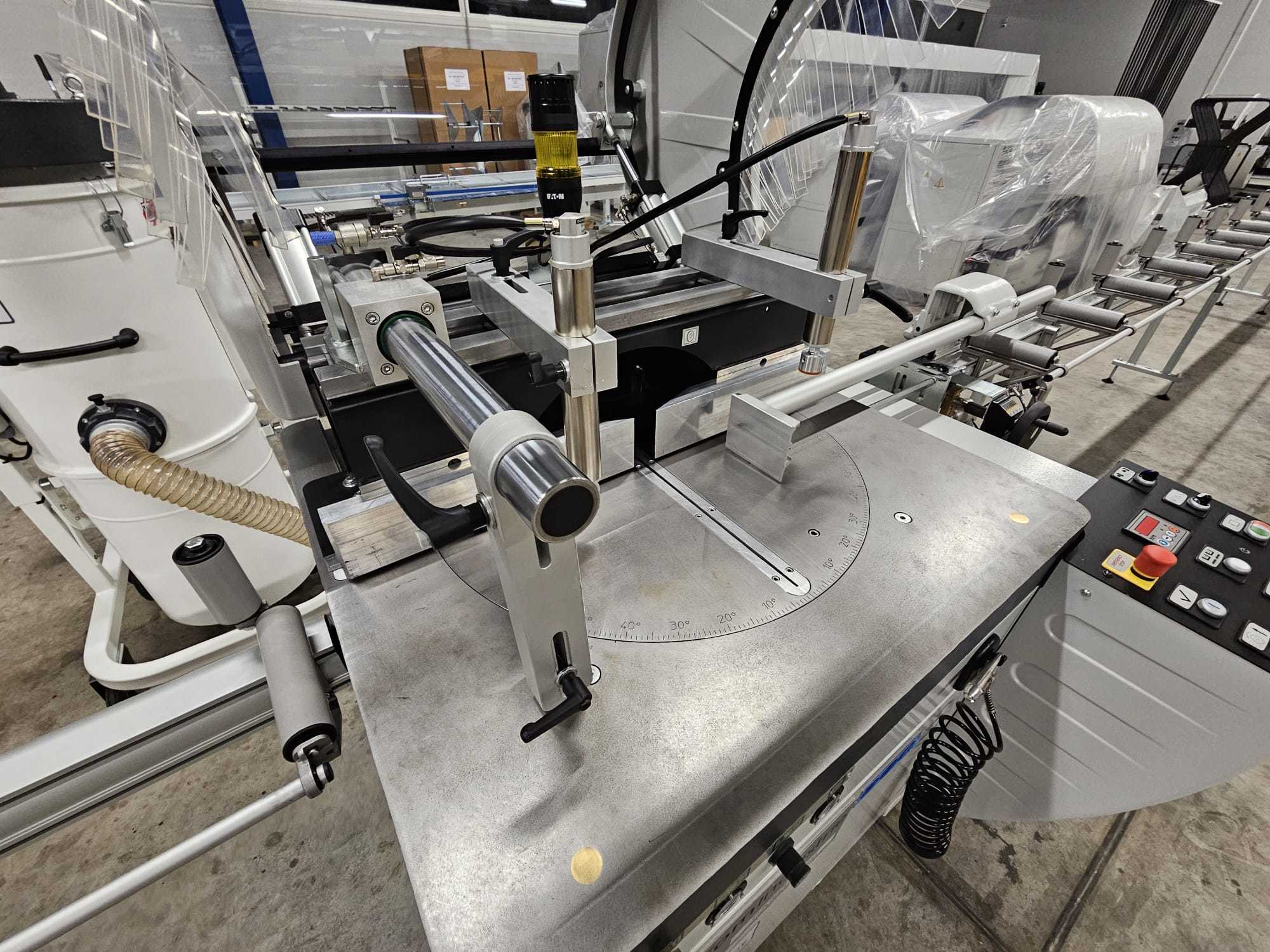

- Rotation from 20° Lh to 20° Rh on vertical axis
- Minimum quantity lubrication (MQL) with pure oil
- Working pressure: 7 bar
- Saw blade motor, three phase (4 kW) - 2800 rpm, 230/400 V - 50 Hz
Oprions installed on the machine:

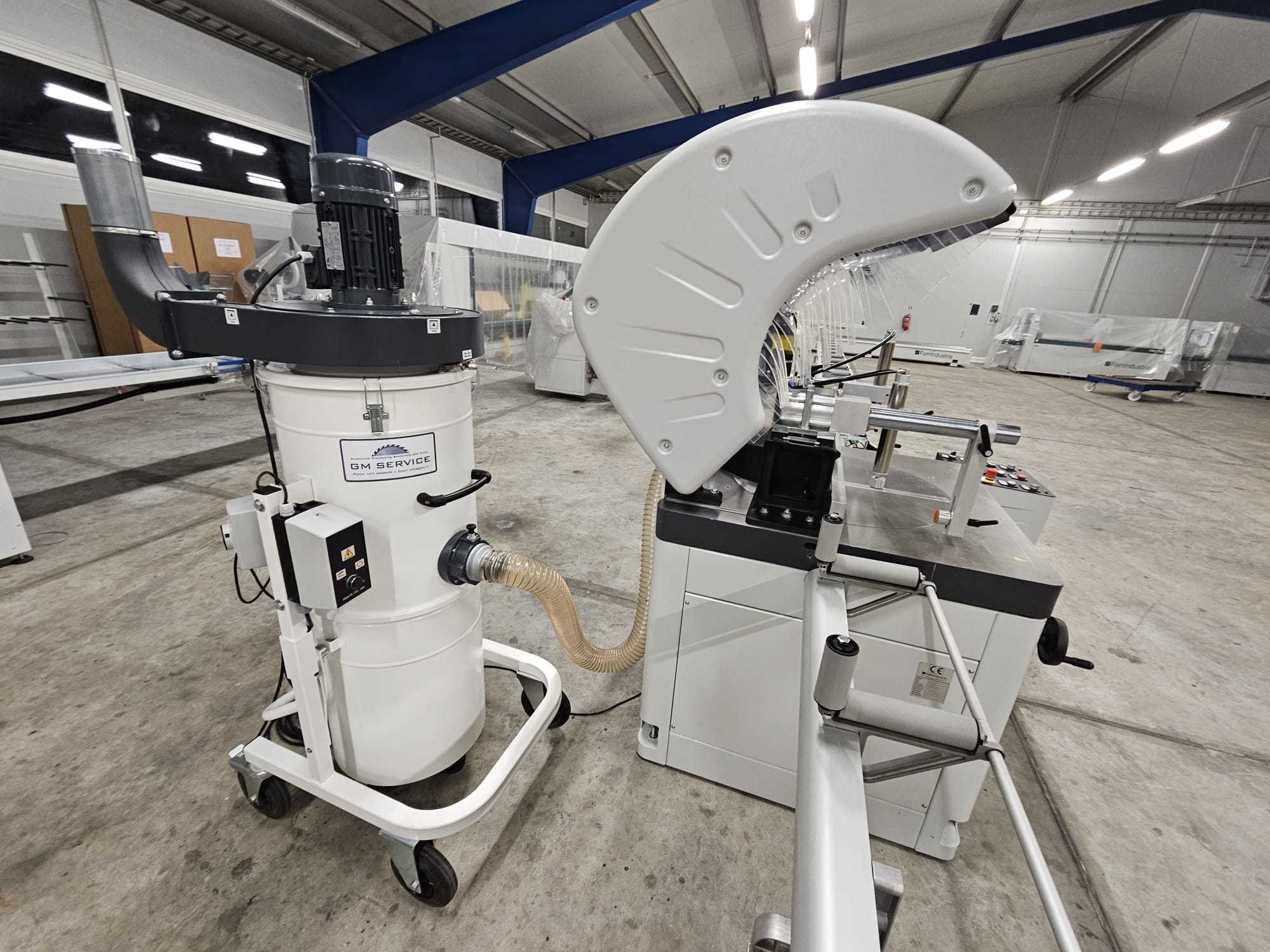

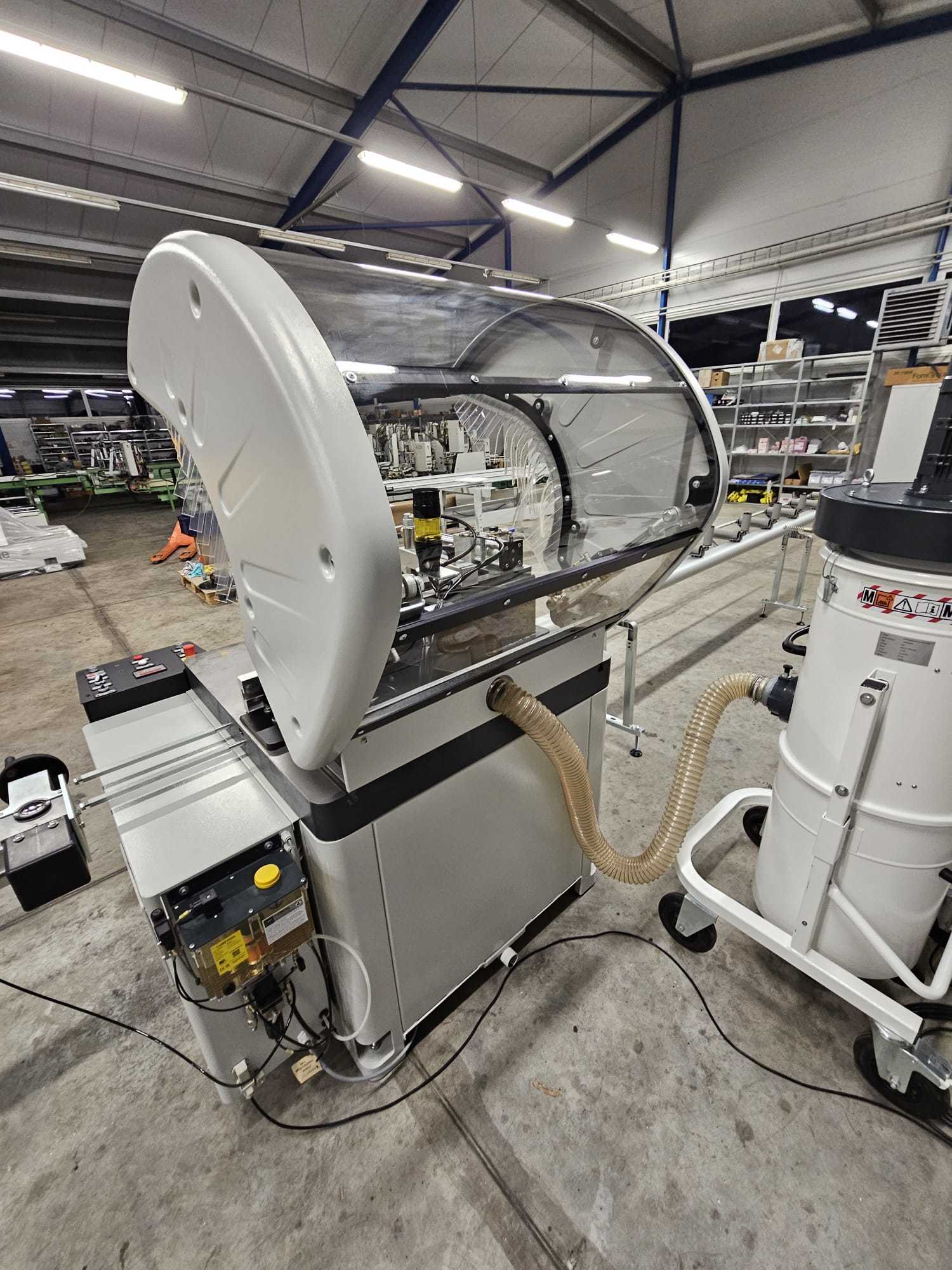

- IV222100 Vacuum cleaner for extraction of chips and fumes

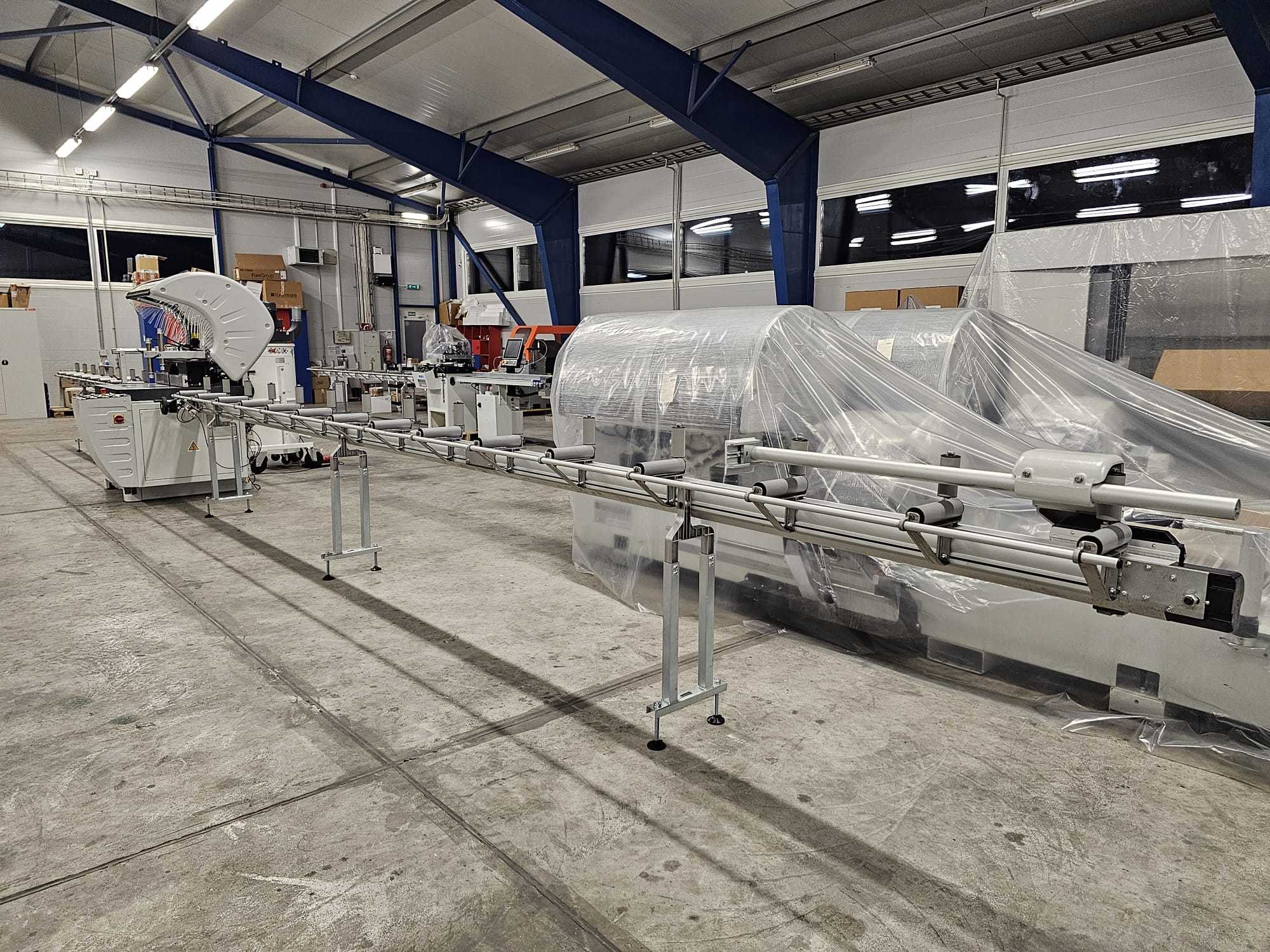

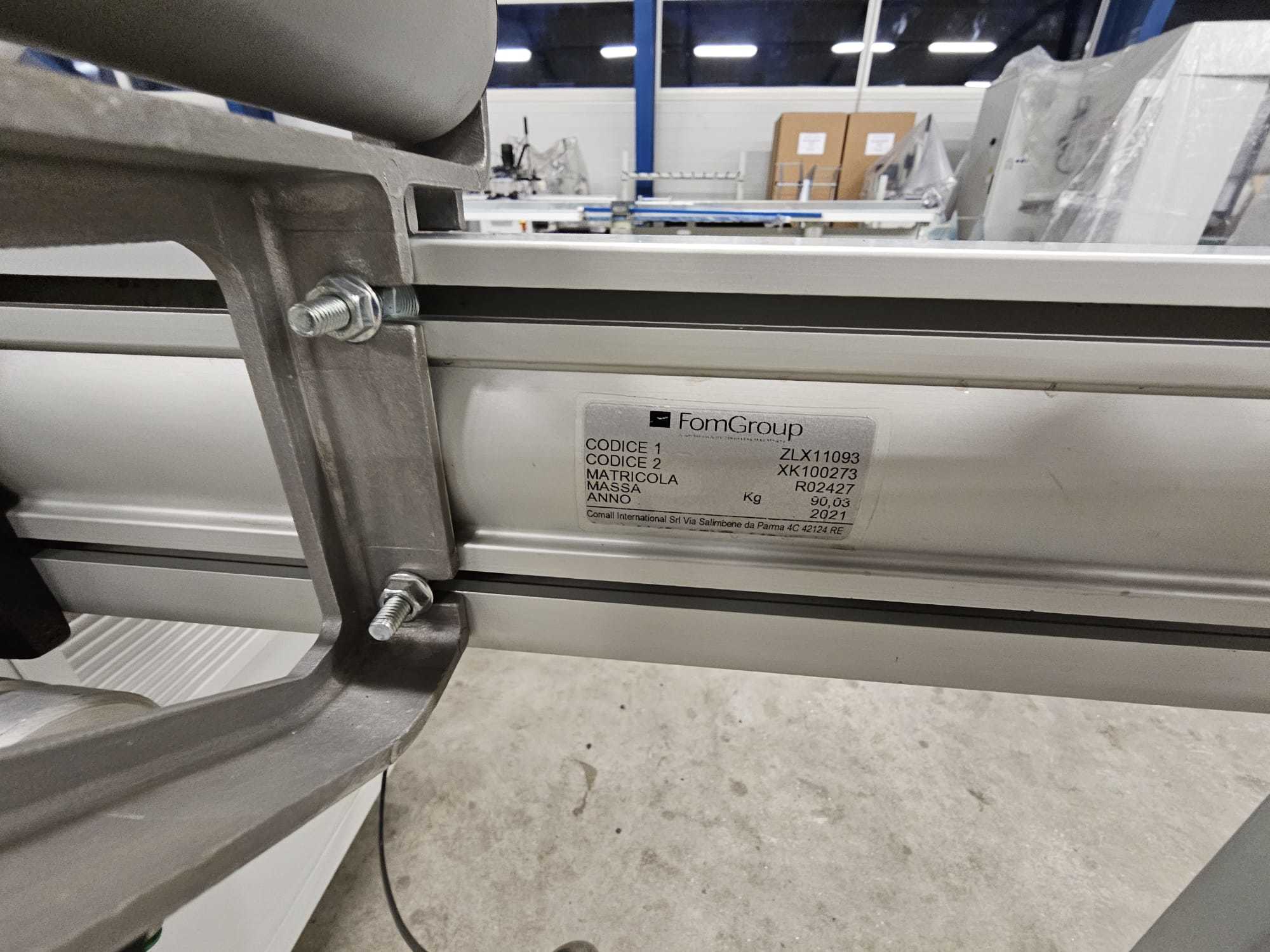

Standard configuration XK100273 ASSOMAK VS 7m:
- Minimum cut 0 mm
- Maximum cut 7 m

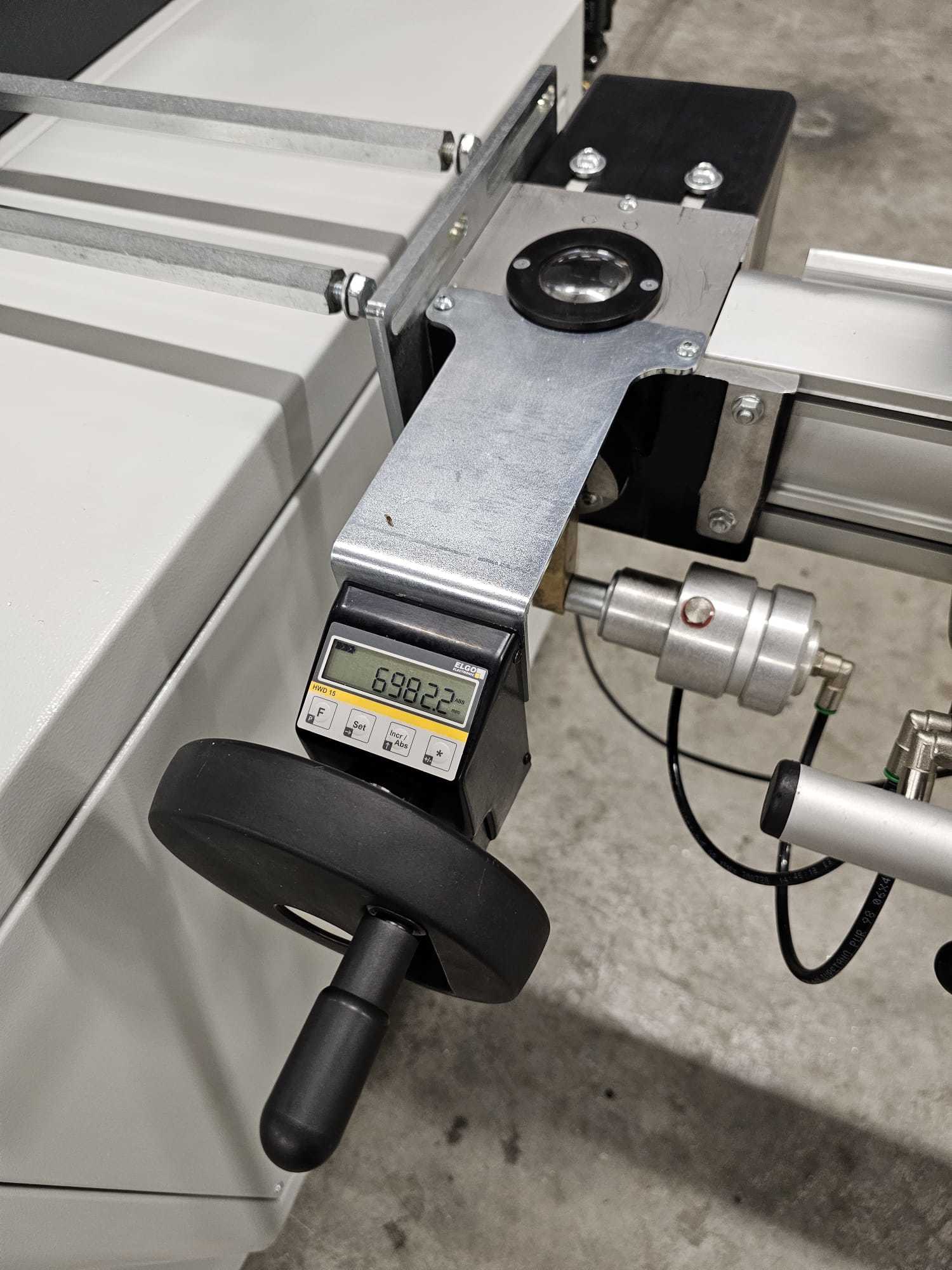

- Measurement reading by encoder
- Mobile carriage slides along wheels in polymer with belt-driven
- Positioning precision ± 0,5 mm
- Loading capacity per linear meter: 10 Kg
- Width of bar resting surface: 200 mm
- Work table height adjustment range 820-990 mm
- Length stop with sliding surface under the work table, to give constant reference under all working conditions
- Pneumatic stop locking
- Belt-driven positioning
Standard configuration XK201569 PORTER 4,2m:
- Working length 4,2m
- Loading capacity per linear meter: 10 Kg
- Width of bar resting surface: 200 mm
- Work table height adjustment range 820-990 mm
Condition: as new
